DLW21HN900SQ2L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > DLW21HN900SQ2L

DLW21HN900SQ2L: DescriptionCommon Mode Chokes Dual 90Ohm 100MHz 0.33A 0.35Ohm DCR SMD T/R; File Size337KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

DLW21HN900SQ2L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DLW21HN900SQ2L	-	-	View	Buy Now

DLW21HN900SQ2L Overview

Common Mode Chokes Dual 90Ohm 100MHz 0.33A 0.35Ohm DCR SMD T/R

DLW21HN900SQ2L Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
SVHC	Yes
Type	Signal Line
Configuration	Dual
Number of Lines	2
Impedance (Ohm)	90
Test Frequency (Hz)	100M
Maximum DC Current (A)	0.33
Maximum DC Resistance (Ohm)	0.35
Minimum Insulation Resistance (Ohm)	10M
Voltage Rating	50VDC
Withstand Voltage	125VDC
Mounting	Surface Mount
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Packaging	Tape and Reel
Product Length (mm)	2.2
Product Depth (mm)	1.4
Product Height (mm)	1

Preview

Download Datasheet

View All

Note: This datasheet may be out of date.

Product Search Data Sheet

Please download the latest datasheet of DLW21HN900SQ2# from the official website of Murata

Manufacturing Co., Ltd.

http://www.murata.com/en/products/productdetail?partno=DLW21HN900SQ2%23

DLW21HN900SQ2#

“#” indicates a package specification code.

< List of part numbers with package codes >

DLW21HN900SQ2B

DLW21HN900SQ2L

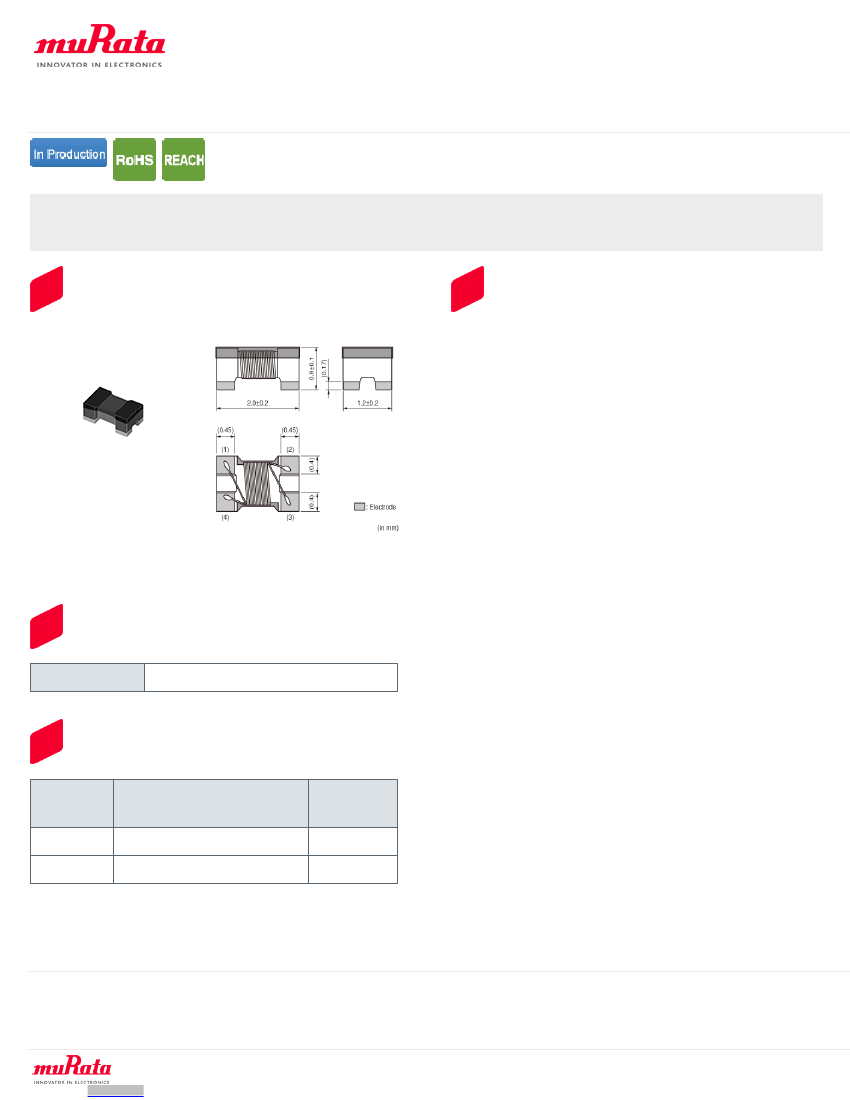

Appearance & Shape

Features

1. Small size and low profile (2.0x1.2x0.9mm).

Excellent noise suppression for sets of small and

thin size.

2. High common mode impedance at high frequency

effects excellent noise suppression performance.

3. Various common mode impedance from 67 to 180 ohm

can be used, selected depending on noise level and

signal frequency.

4. Suitable for differential signal line like USB2.0,

IEEE1394 and LVDS, because DLW21H does not provide

distortion to high speed signal transmission due

to its high coupling. (USB2.0: DLW21HN900SQ2)

5. Small dimension enables higher density mounting

Applications

Common mode noise suppression of signal lines in high

speed and high density digital equipment such as PCs

and peripherals and telecommunications equipment.

Applications

Other Usage

For general

Packaging Information

Standard

Packaging

Specifications

Packing

Quantity

Bulk(Bag)

180mm Embossed Tape

500

3000

1 of 3

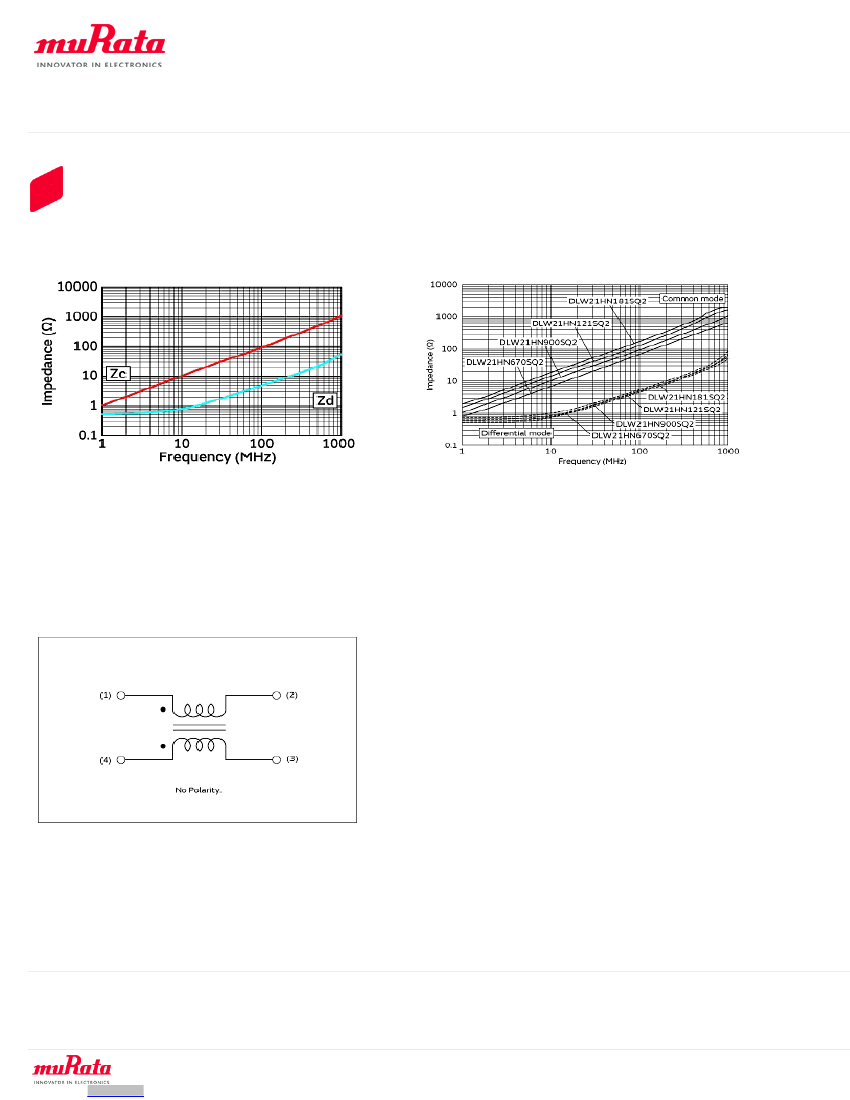

Attention

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated12/27/2020
