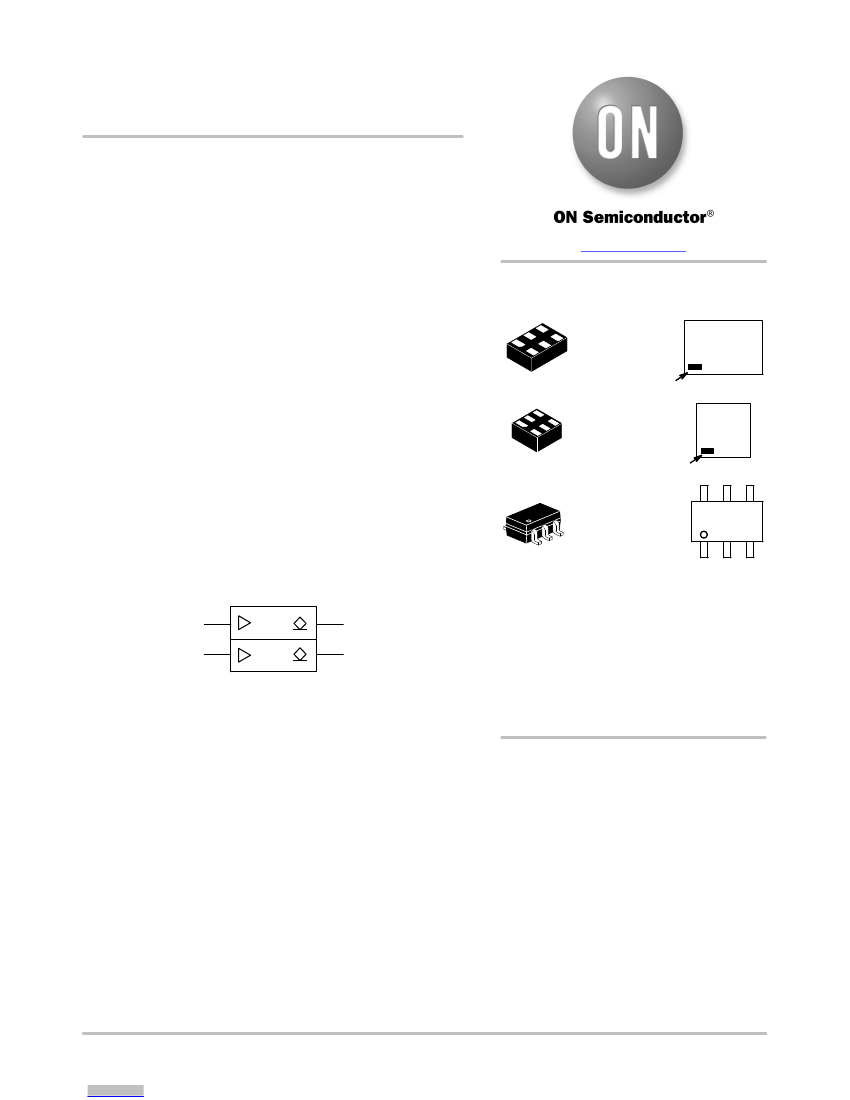

TinyLogic UHS Dual Buffer
(Open-Drain Outputs)
NC7WZ07
Description
The NC7WZ07 is a dual buffer with open−drain outputs from
ON Semiconductor’s Ultra−High Speed (UHS) series of TinyLogic.
The device is fabricated with advanced CMOS technology to achieve
ultra−high speed with high output drive, while maintaining low static
power dissipation over a broad V
CC
operating range. The device is
specified to operate over a very broad V
CC
operating range. The
device is specified to operate over the 1.65 V to 5.5 V V
CC
range. The
inputs and outputs are high impedance when V
CC
is 0 V. Inputs
tolerate voltages up to 5.5 V independent of V
CC
operating voltage.
Features
www.onsemi.com
MARKING
DIAGRAMS
SIP6
CASE 127EB
Pin 1
UDFN6
CASE 517DP
Pin 1
6
SC−88
CASE 419B−02
1
D3, Z07
KK
XY
Z
M
G
= Specific Device Code
= 2−Digit Lot Run Traceability Code
= 2−Digit Date Code Format
= Assembly Plant Code
= Date Code*
= Pb−Free Package
Z07M
G
G
D3KK
XYZ
•
•
•
•
•
•
•
•
Ultra−High Speed: t
PZL
= 2.3 ns (Typical)
High I
OL
Output Drive:
±24
mA at 3 V V
CC
Broad V
CC
Operating Range: 1.65 V to 5.50 V
Power Down High−Impedance Inputs / Outputs
Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
Proprietary Noise / EMI Reduction Circuitry
Ultra−Small MicroPak™ Packages
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
IEEC / IEC
A
1
A
2
1
1
Y
1
Y
2
D3KK
XYZ
Figure 1. Logic Symbol
(Note: Microdot may be in either location)
*Date Code orientation and/or position may
vary depending upon manufacturing location.
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the
package dimensions section on page 5 of this data sheet.
