High Value Multilayer Ceramic Capacitors (High dielectric type)
JMK325BJ476MM-T
Features
Item Summary
47uF±20%, 6.3V,
X5R, 1210/3225 (EIA/JIS)
Lifecycle Stage
Non-preferred
Standard packaging quantity (minimum)
Taping Embossed 500pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (168 subst.)
Soldering
100 MΩ·μF
Yes
Yes
Reflow
47 uF ± 20 %
1210/3225
6.3 V
10 %
X5R
-55 to +85 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
3.2 ±0.30 mm
2.5 ±0.20 mm
2.5 ±0.20 mm
0.60 ±0.30 mm
2016.12.30
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

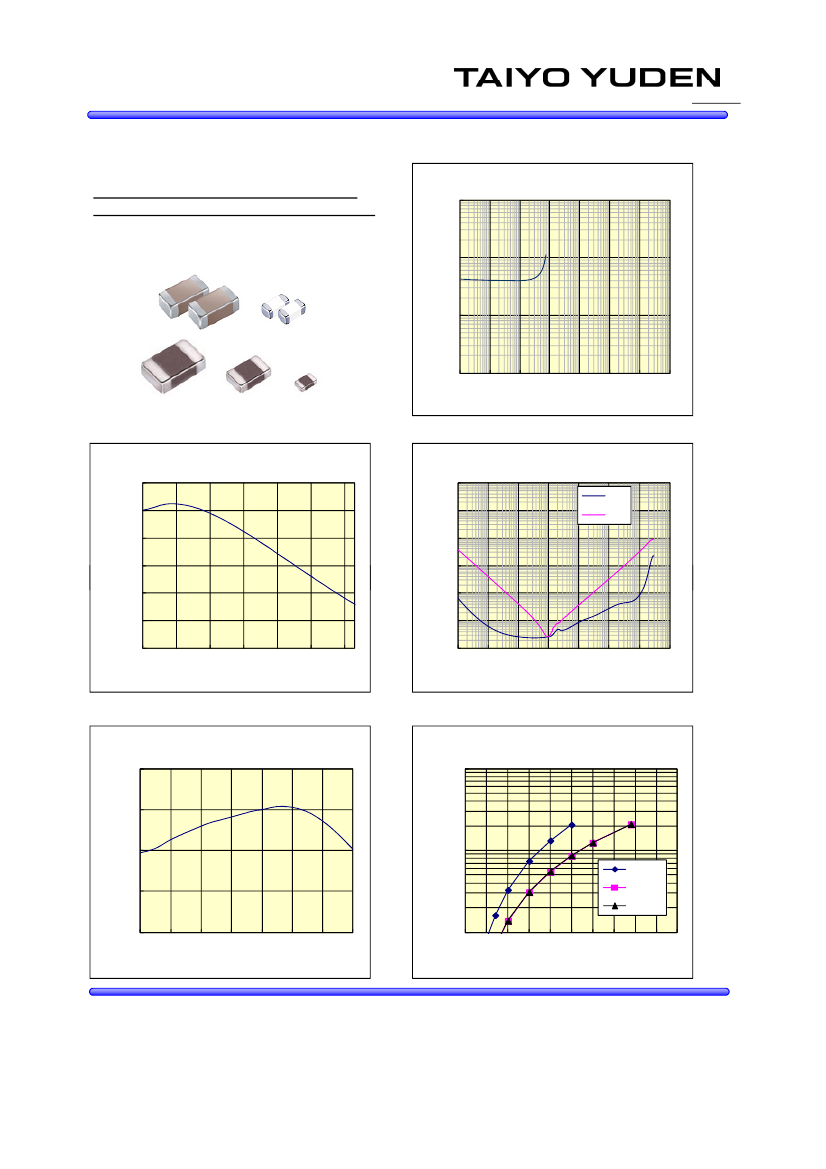

Multi Layer Ceramic Capacitor
○JMK325BJ476MM
6.3V 3225 X5R 47uF +/- 20% t=2.7mmMAX
6.3V 1210 X5R 47uF +/- 20% t=0.106inchMAX
1000
-Electrical Characteristics Data-
16HB03
RoHS compliance product
JMK325BJ476MM
Capacitance Freq.
Capacitance[uF]
100
10
1
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
10
0
-10
JMK325BJ476MM
DC Bias Char.
1000
100
JMK325BJ476MM
Impedance,ESR Freq.
ESR
Z
-20
-30
-40
-50
0
1
2
3
4
5
DC Bias Voltage[V]
6
Z,ESR[O
Z,ESR[OHM]
10
1
dC/C
dC/C[%]
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
JMK325BJ476MM
Capa citance Temp.
10
100
JMK325BJ476MM
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
1
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5
Ripple Current[Arms]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
