LESHAN RADIO COMPANY, LTD.
Zener Voltage Regulators
200 mW SOD–523 Surface Mount
We declare that the material of product
compliance with RoHS requirements.
ORDERING INFORMATION
LM5Z2V0T1G
Series
S-LM5Z2V0T1G
Series
1
Device
Package
SOD-523
SOD-523
Shipping
3000/Tape&Reel
8000/Tape&Reel
2
LM5Z2V0T1G Series
LM5Z2V0T5G Series
This series of Zener diodes is packaged in a SOD–523 surface mount package.They
are designed to provide voltage regulation protection and are especially attractive in
situations where space is at a premium. They are well suited for applications such as
cellular phones, hand held portables, and high density PC boards.
SOD– 523
MARKING DIAGRAM
Specification Features:
• Standard Zener Breakdown Voltage Range – 2.0 V to 75 V
• Steady State Power Rating of
200
mW
• Small Body Outline Dimensions: 0.047" x 0.032"(1.20 mm x 0.80 mm)
• Low Body Height: 0.028" (0.7 mm)
• ESD Rating of Class 3 (>16 kV) per Human Body Model
• S- Prefix for Automotive and Other Applications Requiring Unique Site and Control
Change Requirements; AEC-Q101 Qualified and PPAP Capable.
xx
d
x x = Specific Device Code
d =Date Code
1
CATHODE
2
ANODE
Mechanical Characteristics:
CASE:
Void-free, transfer-molded,thermosetting plastic
Epoxy Meets UL 94 V-0
LEAD FINISH:
100% Matte Sn (Tin)
QUALIFIED MAX REFLOW TEMPERATURE:
260°C
Device Meets MSL 1 Requirements
MOUNTING POSITION:
Any
MAXIMUM RATINGS
Rating
Total Device Dissipation FR−5 Board,
@ T
A
= 25°C
Junction and Storage
Temperature Range
Symbol
P
D
T
J
, T
stg
Max
200
−65 to
+150
Unit
mW
°C
Maximum ratings are those values beyond which device damage can occur.
Maximum ratings applied to the device are individual stress limit values (not
normal operating conditions) and are not valid simultaneously. If these limits are
exceeded, device functional operation is not implied, damage may occur and
reliability may be affected.
Rev.B 1/6
LESHAN RADIO COMPANY, LTD.
LM5Z2V0T1G Series , S-LM5Z2V0T1G Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted,
V
F
= 0.9 V Max. @ I
F
= 10 mA for all types)
Symbol
V
Z
I
ZT
Z
ZT
I
ZK
Z
ZK
I
R
V
R
I
F
V
F
QV
Z
C
Parameter
Reverse Zener Voltage @ I
ZT
Reverse Current
Maximum Zener Impedance @ I
ZT
Reverse Current
Maximum Zener Impedance @ I
ZK
Reverse Leakage Current @ V
R
Reverse Voltage
Forward Current
Forward Voltage @ I
F
Maximum Temperature Coefficient of V
Z
Max. Capacitance @V
R
= 0 and f = 1 MHz
V
Z
V
R
I
F
I
I
R
V
F
I
ZT
V
Zener Voltage Regulator
Rev.B 2/6
LESHAN RADIO COMPANY, LTD.
LM5Z2V0T1G Series , S-LM5Z2V0T1G Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted, V
F
= 0.9 V Max. @ I
F
= 10 mA for all types)
Zener Voltage
(Note 1)
V
Z
(Volts)
Min
1.91
2.2
2.5
2.8
3.1
3.4
3.7
4.0
4.4
4.8
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.4
14.3
15.3
16.8
18.8
20.8
22.8
25.1
28
31
34
37
40
44
48
52
58
64
70
Nom
2.0
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13.25
15
16.2
18
20
22
24.2
27
30
33
36
39
43
47
51
56
62
68
75
Max
2.09
2.6
2.9
3.2
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.8
17.1
19.1
21.2
23.3
25.6
28.9
32
35
38
41
46
50
54
60
66
72
79
@ I
ZT
mA
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Zener Impedance
Z
ZT
@ I
ZT
W
100
100
100
100
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
150
170
180
200
215
240
255
Z
ZK
@ I
ZK
W
600
1000
1000
1000
1000
1000
1000
1000
800
500
400
100
160
160
160
160
160
160
80
80
200
200
225
225
250
120
300
300
300
500
500
500
500
500
500
500
500
500
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Leakage Current
I
R
@ V
R
mA
150
50
20
10
5
5
3
3
3
2
1
3
2
1
0.7
0.2
0.1
0.1
0.1
0.1
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
Volts
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
7.0
8.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.2
25.2
27.3
30.1
32.9
35.7
39.2
43.4
47.6
52.5
QV
Z
(mV/k)
@ I
ZT
Min
–3.5
−3.5
−3.5
−3.5
−3.5
−3.5
−3.5
−3.5
−3.5
−2.7
−2.0
0.4
1.2
2.5
3.2
3.8
4.5
5.4
6.0
7.0
9.2
10.4
12.4
14.4
16.4
18.4
21.4
24.4
27.4
30.4
33.4
37.6
42.0
46.6
52.2
58.8
65.6
73.4
Max
0
0
0
0
0
0
−2.5
0
0.2
1.2
2.5
3.7
4.5
5.3
6.2
7.0
8.0
9.0
10
11
13
14
16
18
20
22
25.3
29.4
33.4
37.4
41.2
46.6
51.8
57.2
63.8
71.6
79.8
88.6
C
@ V
R
= 0
f = 1 MHz
pF
450
450
450
450
450
450
450
450
260
225
200
185
155
140
135
130
130
130
130
120
110
105
100
85
85
80
70
70
70
70
45
40
40
40
40
35
35
35
Device
LM5Z2V0T1G
LM5Z2V4T1G
LM5Z2V7T1G
LM5Z3V0T1G
LM5Z3V3T1G
LM5Z3V6T1G
LM5Z3V9T1G
LM5Z4V3T1G
LM5Z4V7T1G
LM5Z5V1T1G
LM5Z5V6T1G
LM5Z6V2T1G
LM5Z6V8T1G
LM5Z7V5T1G
LM5Z8V2T1G
LM5Z9V1T1G
LM5Z10VT1G
LM5Z11VT1G
LM5Z12VT1G
LM5Z13VT1G
LM5Z15VT1G
LM5Z16VT1G
LM5Z18VT1G
LM5Z20VT1G
LM5Z22VT1G
LM5Z24VT1G
LM5Z27VT1G
LM5Z30VT1G
LM5Z33VT1G
LM5Z36VT1G
LM5Z39VT1G
LM5Z43VT1G
LM5Z47VT1G
LM5Z51VT1G
LM5Z56VT1G
LM5Z62VT1G
LM5Z68VT1G
LM5Z75VT1G
Device
Marking
WY
00
01
02
05
06
07
08
09
0A
0C
0E
0F
0G
0H
0K
0L
0M
0N
0P
0T
0U
0W
0Z
10
11
12
14
18
19
20
21
1A
1C
1D
1E
1F
1G
1. Zener voltage is measured with a pulse test current I
Z
at an ambient temperature of 25°C.
Rev.B 3/6
LESHAN RADIO COMPANY, LTD.
LM5Z2V0T1G Series , S-LM5Z2V0T1G Series

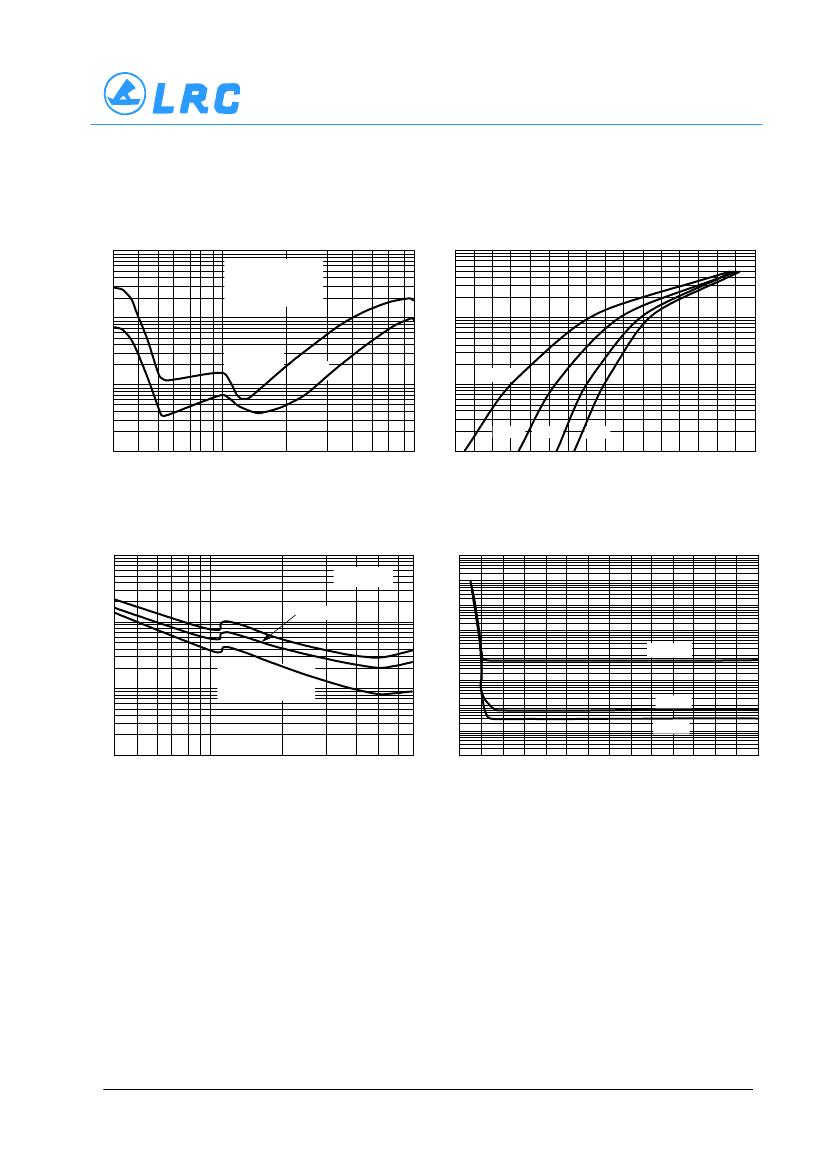

Typical Characteristics
1000
Z ZT , DYNAMIC IMPEDANCE (
Ω
)
T
J
= 25°C
I
Z(AC)
= 0.1 I
Z(DC)
f = 1 kHz
1000
IF, FORWARD CURRENT (mA)
100
100
I
Z
= 1 mA
10
5 mA
10
150°C
75°C
1.0
3.0
10
V
Z
, NOMINAL ZENER VOLTAGE
80
1.0
0.4
0.5
25°C
0°C
1.1
1.2
0.6
0.7
0.8
0.9
1.0
V
F
, FORWARD VOLTAGE (V)
Figure 1. Effect of Zener Voltage on
Zener Impedance
1000
T
A
= 25°C
C, CAPACITANCE (pF)
0 V BIAS
1 V BIAS
IR, LEAKAGE CURRENT (
µ
A)
1000
100
10
1.0
0.1
0.01
0.001
Figure 2. Typical Forward Voltage
100
+150°C
10
BIAS AT
50% OF V
Z
NOM
+25°C
–55°C
0
10
20
30
40
50
60
V
Z
, NOMINAL ZENER VOLTAGE (V)
70
0.0001
1.0
4.0
10
V
Z
, NOMINAL ZENER VOLTAGE (V)
70
0.00001
Figure 3. Typical Capacitance
Figure 4. Typical Leakage Current
Rev.B 4/6
LESHAN RADIO COMPANY, LTD.
LM5Z2V0T1G Series , S-LM5Z2V0T1G Series
Typical Characteristics
100
T
A
= 25°C
I Z , ZENER CURRENT (mA)
IZ , ZENER CURRENT (mA)
10
10
100
T
A
= 25°C
1.0
1
0.1
0.1
0.01
0.01
0
2.0
4.0
6.0
8.0
V
Z
, ZENER VOLTAGE (V)
10
12
10
30
50
70
V
Z
, ZENER VOLTAGE (V)
90
Figure 5. Zener Voltage versus Zener Current
(V
Z
Up to 12 V)
Figure 6. Zener Voltage versus Zener Current
(12 V to 75 V)
100
POWER DISSIPATION (%)
80
60
40
20
0
0
25
50
75
100
TEMPERATURE (°C)
125
150
Figure 7. Steady State Power Derating
Rev.B 5/6
