B0524LS-1WR2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> B0524LS-1WR2

B0524LS-1WR2: DescriptionNumber of voltage output groups: 1 Maximum input voltage: 5.5V Output voltage: 24V Output current (maximum value/full load): 42mA DC-DC module, input range: 4.5V~5.5V, single group output: 24V/1W; CategoryPower/power management The power supply circuit; File Size1MB，5 Pages; ManufacturerMORNSUN; Websitehttp://www.mornsun-power.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B0524LS-1WR2 Overview

Number of voltage output groups: 1 Maximum input voltage: 5.5V Output voltage: 24V Output current (maximum value/full load): 42mA DC-DC module, input range: 4.5V~5.5V, single group output: 24V/1W

B0524LS-1WR2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MORNSUN
package instruction	, SIP4/6,.07
Reach Compliance Code	compliant
Samacsys Description	1W, Fixed Input, Isolated/unregulated Dual/single Output Dc-dc Converter
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Number of terminals	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Maximum output current	0.042 A
Nominal output voltage	24 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP4/6,.07
Certification status	Not Qualified
surface mount	NO
Temperature level	INDUSTRIAL
Base Number Matches	1

Preview

Download Datasheet

View All

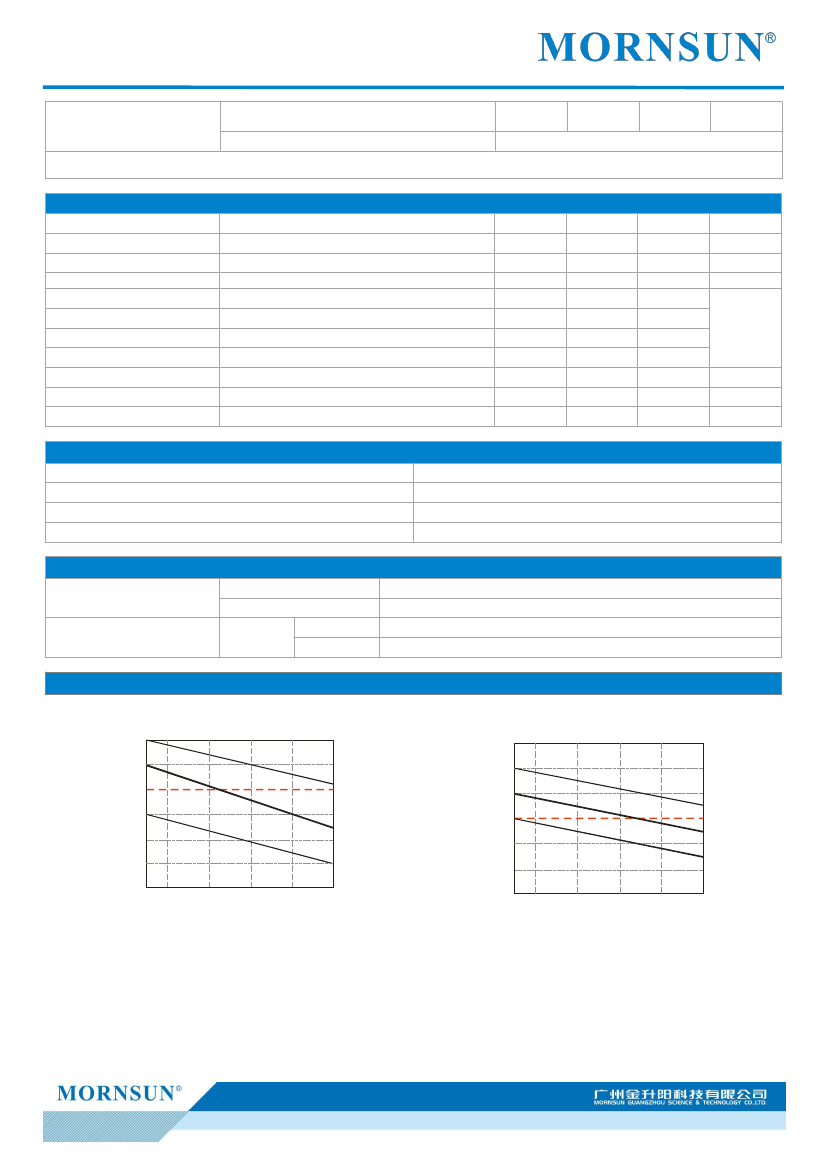

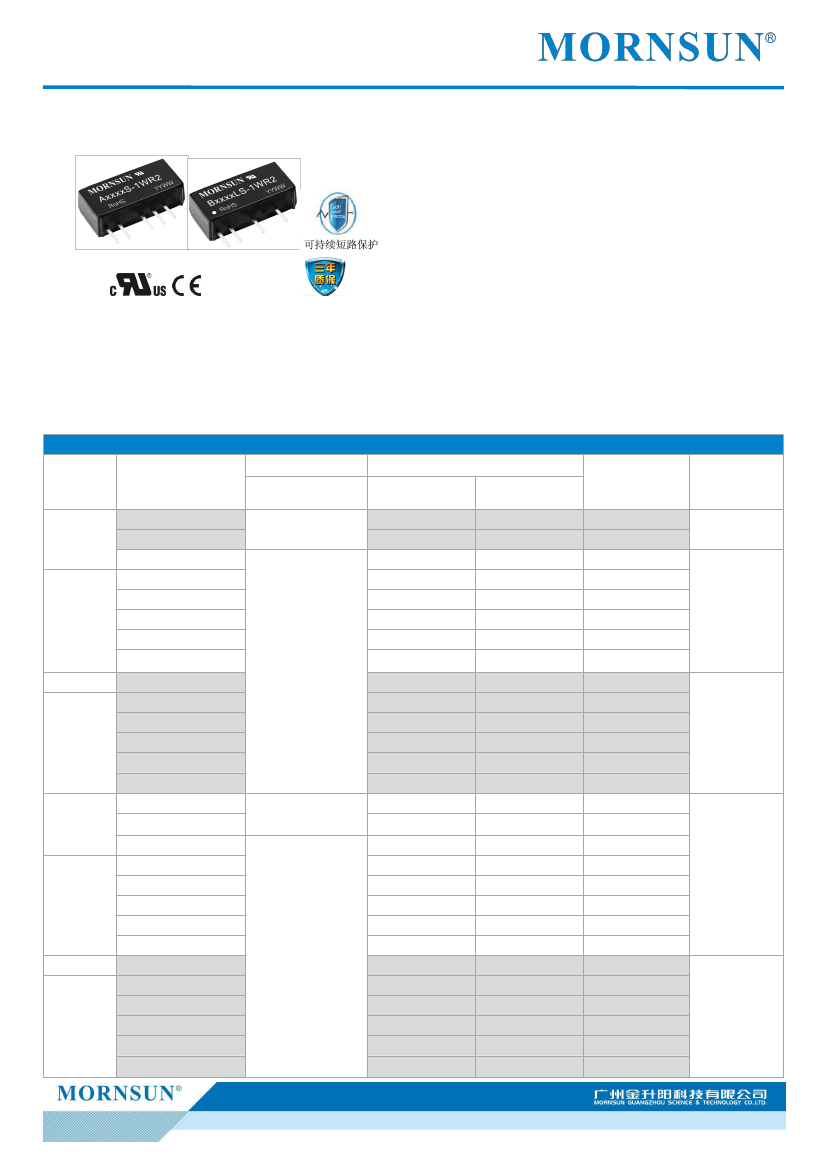

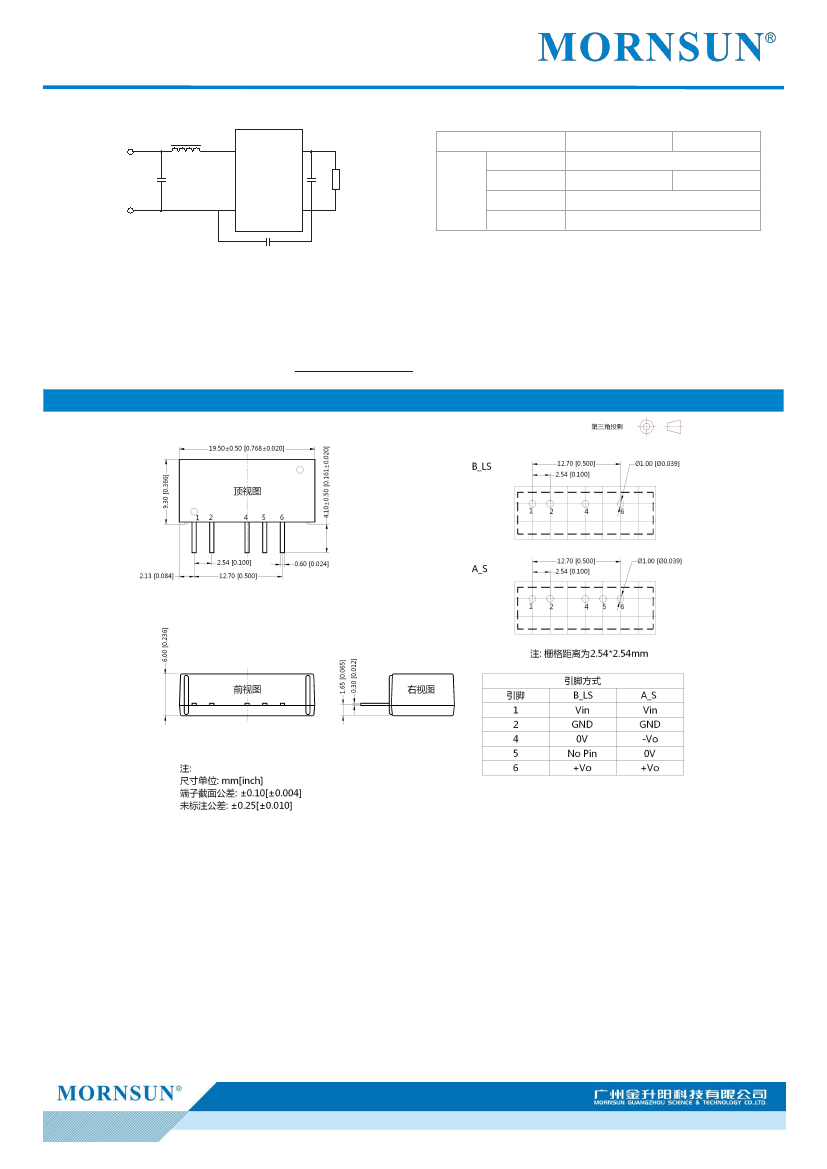

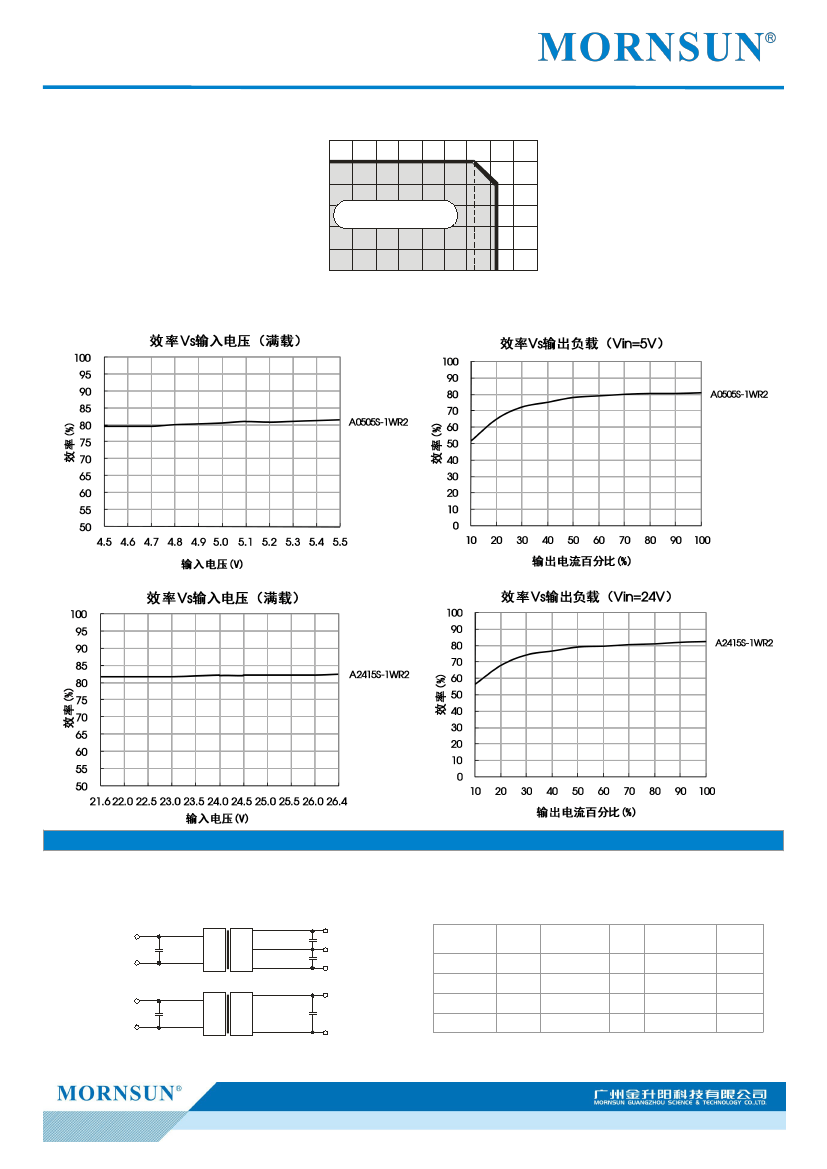

DC/DC

模块电源

A_S-1WR2 & B_LS-1WR2

系列

1W，定电压输入，

隔离非稳压正负双路/单路输出

产品特点



超小型

SIP

封装



工½温度范围:

-40℃½+105℃



效率高达

80%



隔离电压

1500VDC



高功率密度



无需外加元件

专利保护

RoHS



½际标准引脚方式



通过

UL60950, EN60950

认证

A_S-1WR2 & B_LS-1WR2

系列产品是专门针对线路板上分布式电源系统中需要产生一组与输入电源隔离的电源的应用场合而设计的。

该产品适用于：

输入电源的电压比较稳定（电压变化范围±10%Vin）

；

输入输出之间要求隔离（隔离电压≤1500VDC）

；

对输出电压稳定度要求不高；

如：纯数字电路，一般½频模拟电路，继电器驱动电路，数据交换电路等。

选型表

输入电压(VDC)

认证

产品型号

B0303LS-1WR2

B0305LS-1WR2

A0503S-1WR2

A0505S-1WR2

A0509S-1WR2

输出

输出电压

(VDC)

3.3

±3.3

±5

±9

±12

±15

±24

3.3

±9

±15

±3.3

±5

±9

±12

±15

±24

3.3

标称值

（范围值）

3.3

(2.97-3.63)

输出电流

(mA)

(Max./MIn.)

303/31

200/20

±152/±15

±100/±10

±56/±6

±42/±5

±34/±4

±21/±3

303/31

200/20

111/11

84/9

67/7

42/5

±56/±6

±34/±4

±152/±15

±100/±10

±56/±6

±42/±5

±34/±4

±21/±3

303/31

200/20

111/11

84/9

67/7

42/5

效率

(%, Min./Typ.)

@满½½

68/72

74/78

67/71

76/80

70/74

76/80

72/76

76/80

72/76

76/80

最大容性负½½*

(µF)

220

UL/CE

A0512S-1WR2

A0515S-1WR2

A0524S-1WR2

(4.5-5.5)

100

B0503LS-1WR2

B0505LS-1WR2

B0509LS-1WR2

UL/CE

B0512LS-1WR2

B0515LS-1WR2

B0524LS-1WR2

A0909S-1WR2

220

A0915S-1WR2

A1203S-1WR2

A1205S-1WR2

A1209S-1WR2

(8.1-9.9)

100

UL/CE

A1212S-1WR2

A1215S-1WR2

A1224S-1WR2

B1203LS-1WR2

B1205LS-1WR2

B1209LS-1WR2

(10.8-13.2)

UL/CE

B1212LS-1WR2

B1215LS-1WR2

B1224LS-1WR2

220

2016.05.04-B/2

第

页共

页

该版权及产品最终解释权½广州金升阳科技有限公司所有
