8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
-
-
C
REVISED PER ECR-16-001024
03JUN2016
BW
GJ
2.00
11.60
D
POS.
1*5
1*4
1*3
1*2
DIM.A
33.70
27.70
21.70
15.70
DIM.B
28.00
22.00
16.00
10.00
D
11.30
10.30
15.70
C
C
15.30
3.00
6.00
B
NOTE
1.MATERIAL:
LEVEL A:PA6 ,COMPLY WITH GLOW WIRE REQUIREMENTS FOR PARTS OF
NON-METALLIC MATERIAL SUPPORTING A CURRENT-CARRYING CONNECTION
DETAILED IN IEC 60335-1, SECTION 30 (GWT),UL 94V-0
LEVEL B:PBT,HOT WIRE IGNITION (HWI) VERSION ARE MOLDED IN
A RESIN THAT COMPLIES WITH TE HOT WIRE IGNITION TEST 109-32026
AND ARE RECOMMENDED FOR USE WITH HWI HOUSINGS THAT ALSO COMPLY,
UL 94V-0
2
1.00
(2X)
9.25
B
MATERIAL MARK:
LEVEL A:GWT,LEVEL B:HWT
2
3. APPLICABLE CONTACT P/N
REC CONTACT:1971237/1971779/81/83/85/87-*
4. MATING CONN, P/N
CAP HSG:*-2232358/263-*
TPA:*-1971777-*
A
DIM.B
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DIM.A
4805 (3/11)
GWT
A
TOMMY WU
HAPYE WU
YUHONG MAO
108-106118
114-106118
SIZE
26MAR2013
26MAR2013
26MAR2013
NAME
TE Connectivity
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.35
0.25
-
-
PRODUCT SPEC
APPLICATION SPEC
-
SEE TABLE
-
-
-
WEIGHT
-
Customer Drawing
A1
00779
CAGE CODE

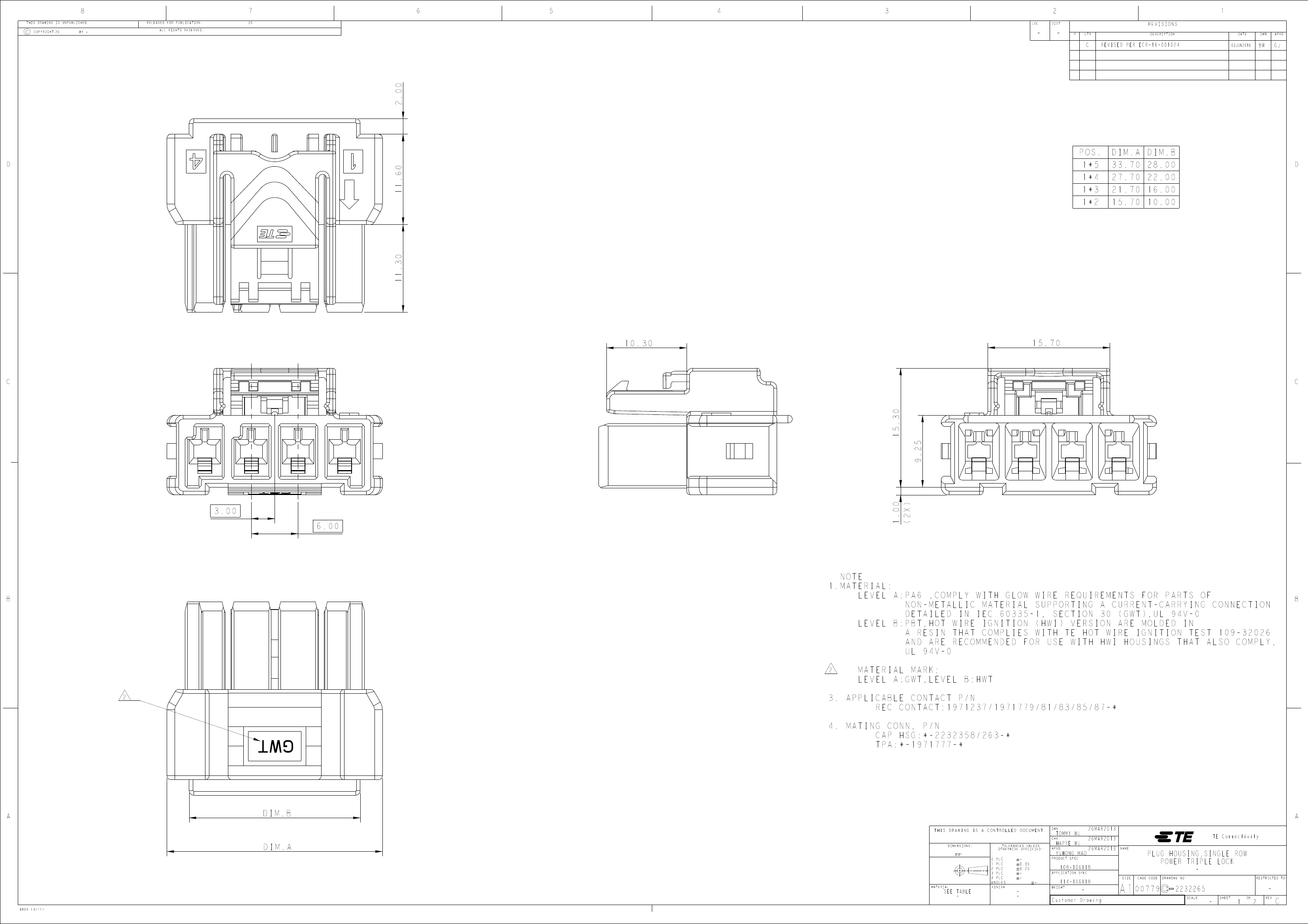

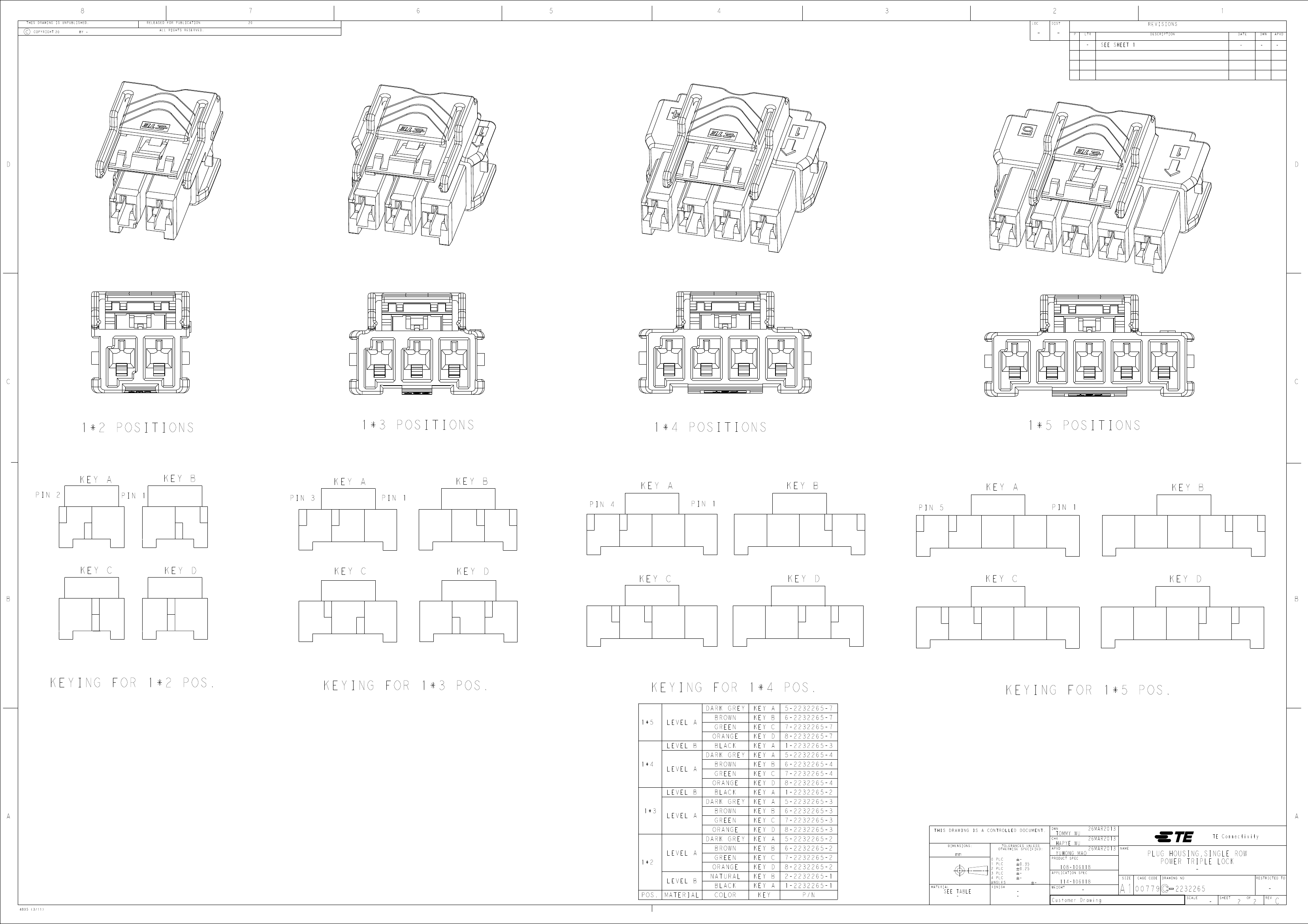

PLUG HOUSING,SINGLE ROW
POWER TRIPLE LOCK
-
DRAWING NO
RESTRICTED TO
2232265
SCALE
-
SHEET
1
OF
2
REV
-
C
