B240A-E3/61T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B240A-E3/61T

B240A-E3/61T: DescriptionDC reverse withstand voltage (Vr): 40V Average rectified current (Io): 2A Forward voltage drop (Vf): 550mV @ 2A 40V, 2A; CategoryDiscrete semiconductor diode; File Size78KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

B240A-E3/61T Overview

DC reverse withstand voltage (Vr): 40V Average rectified current (Io): 2A Forward voltage drop (Vf): 550mV @ 2A 40V, 2A

B240A-E3/61T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Description	High Current Density Surface Mount Schottky Rectifier
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

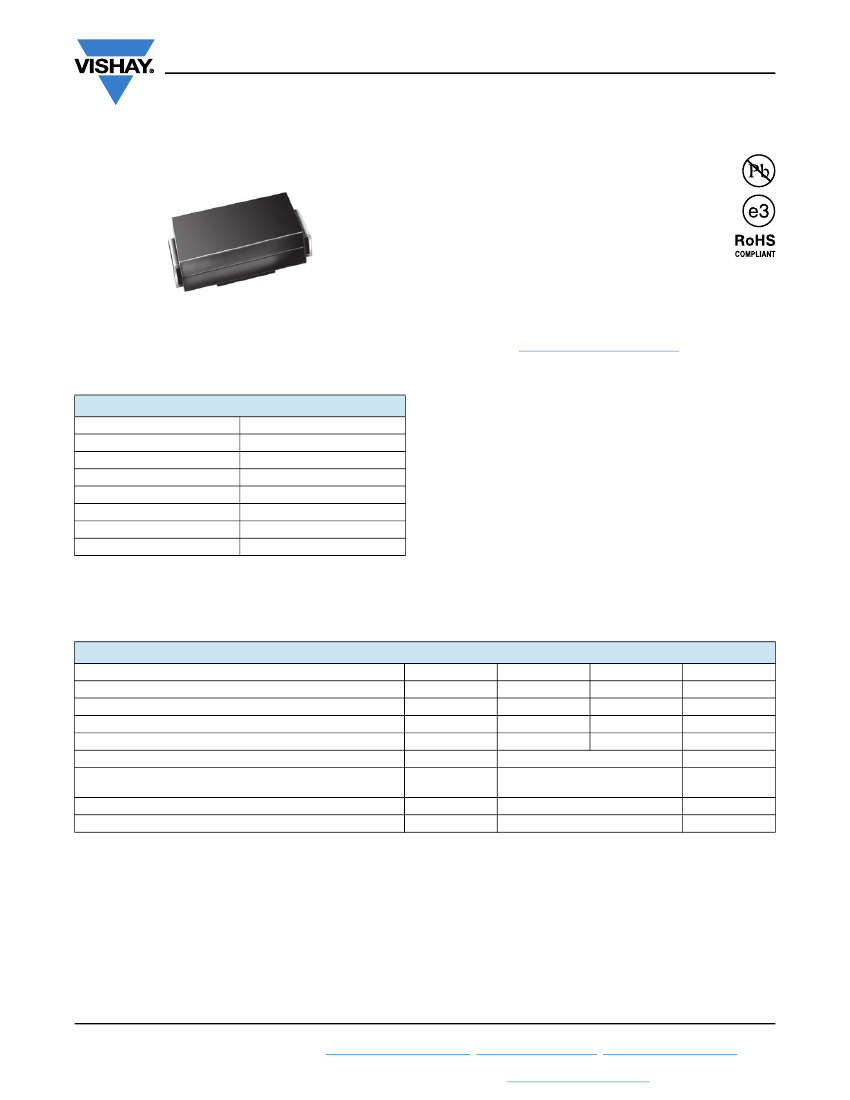

B230LA, B240A

www.vishay.com

Vishay General Semiconductor

High Current Density Surface Mount Schottky Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Guardring for overvoltage protection

• Low power losses, high efficiency

• Low forward voltage drop

• High surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

DO-214AC (SMA)

TYPICAL APPLICATIONS

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

Package

Diode variations

2.0 A

30 V, 40 V

50 A

0.50 V, 0.55 V

150 °C

DO-214AC

< 10 ns

Single

For use in low voltage, high frequency inverters,

freewheeling, DC/DC converters, and polarity protection

applications.

Note

• These devices are not AEC-Q101 qualified

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 2 whisker test

Polarity:

Color band denotes the cathode end

per

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

(fig. 1)

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Voltage rate of change (rated V

)

Operating junction and storage temperature range

RRM

RMS

F(AV)

FSM

dV/dt

, T

STG

SYMBOL

B230LA

B23

2.0

10 000

- 65 to + 150

B240A

B24

V/μs

°C

UNIT

Revision: 14-Jan-14

Document Number: 88894

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000
