MA4ST2000 Series
Ultra High Ratio Si Hyperabrupt Varactor Diode
Features
•
Ultra High Capacitance Ratio,
•
•
•
C(0.1V)/C(4.7V) =18:1
C(0.1V)/C(2.7V) = 12:1
Surface Mount Plastic Packages: SC-79, SOD-
323, SC-70, 3 Lead
SPC Process for Superior C vs. V and Q vs. V
Repeatability
RoHS Compliant equivalents available with 260°C
reflow compatibility
SC-70 (3 lead)
SOD-323
M/A-COM Products
Rev. V9
SC-79
Description and Applications
M/A-COM’s MA4ST2000 series is a highly repeatable,
UHCVD/ion-implanted, hyperabrupt silicon tuning
varactor in a cost effective surface mount package.
This series of varactors is designed for high capaci-
tance ratio for low battery voltage operation. It is effi-
cient for wide band tuning and low phase noise appli-
cation where the supply voltage is limited to 5 volts or
less. Varactors in this series have a typical 18:1 ca-
pacitance ratio between 0.1 V and 4.7 V and a 12:1
ratio between 0.1 V and 2.7 V. The Varactors are of-
fered as Singles in both SC-79 and SOD-323 configu-
rations with Common Cathode version offered in a
SC-70, 3 Lead. These diodes are offered with stan-
dard Sn/Pb plating , as well as 100% matte Sn plating
on our RoHs compliant equivalent devices.
Part Number
RoHS Compliant Part Number
MAVR-002200-12790T
MAVR-002300-12790T
MAVR-002400-12790T
MAVR-002500-12790T
MAVR-002600-12790T
MA4ST2200-1141T
MA4ST2300-1141T
MA4ST2400-1141T
MA4ST2500-1141T
MA4ST2600-1141T
MA4ST2200CK-1146T
MA4ST2300CK-1146T
MA4ST2400CK-1146T
MA4ST2500CK-1146T
MA4ST2600CK-1146T
1
MAVR-002200-11410T
MAVR-002300-11410T
MAVR-002400-11410T
MAVR-002500-11410T
MAVR-002600-11410T
MAVR-002200-1146FT
MAVR-002300-1146FT
MAVR-002400-1146FT
MAVR-002500-1146FT
MAVR-002600-1146FT
Absolute Maximum Ratings
1,2
@ T
A
=+25 °C (Unless Otherwise Noted)
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Absolute Maximum
12 V
50 mA
-55 °C to +125 °C
-55 °C to +125 °C
1. Operation of this device above any one of these parameters
may cause permanent damage.
2. Please refer to application note M538 for surface mounting
instructions
Configuration
Single
Single
Single
Single
Single
Single
Single
Single
Single
Single
Common Cathode
Common Cathode
Common Cathode
Common Cathode
Common Cathode
Package Package Cp (pF) Package Ls (nH)
SC-79
SC-79
SC-79
SC-79
SC-79
SOD-323
SOD-323
SOD-323
SOD-323
SOD-323
SC-70 (3L)
SC-70 (3L)
SC-70 (3L)
SC-70 (3L)
SC-70 (3L)
0.10
0.10
0.10
0.10
0.10
0.11
0.11
0.11
0.11
0.11
0.12
0.12
0.12
0.12
0.12
0.6
0.6
0.6
0.6
0.6
1.2
1.2
1.2
1.2
1.2
1.3
1.3
1.3
1.3
1.3
Specifications subject to change without prior notification
ADVANCED:
Data Sheets contain information regarding a product MA-COM Technical Solutions is
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
considering for development. Performance is based on target specifications, simulated results, and/
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product MA-COM Technical Solutions
Visit www.macom.com for additional data sheets and product information.
has under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available. Commit-
MA-COM Technical Solutions and its affiliates reserve the right to make changes to the
ment to produce in volume is not guaranteed.
product(s) or information contained herein without notice.
MA4ST2000 Series
Ultra High Ratio Si Hyperabrupt Varactor Diode
Electrical Specifications @ T
A
= +25 °C
Breakdown Voltage @ I
R
= 10
μ
A, V
b
= 12 V Minimum
Reverse Leakage Current @ V
R
=10V, I
R
= 100 nA Maximum
Ct
2
(pF)
Part
Number
1
RoHS Compliant
Part Number
1
V
R
= 0.1 V
Typ.
MA4ST2200
MA4ST2300
MA4ST2400
MA4ST2500
MA4ST2600
1.
2.
3.
MAVR-002200-XXXXXX
3
MAVR-002300-XXXXX
3
MAVR-002400-XXXXXX
3
MAVR-002500-XXXXXX
3
MAVR-002600-XXXXXX
3
7.68
34.2
60.3
86.4
113.3
M/A-COM Products
Rev. V9
Capacitance
Ratio
V
R
=
2.7 V
Typ.
0.70
2.67
4.98
6.68
9.14
Rs
3
(Ohm)
V
R
= 4.0 V
Typ.
3.84
0.95
0.67
0.61
0.54
V
R
= 1.0 V
Min. Nom. Max.
3.7
16.2
29
41.4
54.3
4.1
18.0
32
46.0
60.3
4.5
19.8
35.2
50.6
66.4
V
R
=
4.7 V
Typ.
0.47
1.85
3.27
4.64
6.27
Ct
0.1
/
Ct
4.7
Typ.
16.3
18.5
18.4
18.6
18.1
Ct
0.1
/
Ct
2.7
Typ.
11.0
12.8
12.1
12.9
12.4
Max.
4.6
1.2
0.9
0.8
0.7
The suffix defines package style, configuration, and packaging information. Contact representative for complete part identification.
Capacitance @ 1 MHz
Series Resistance @ 100 MHz

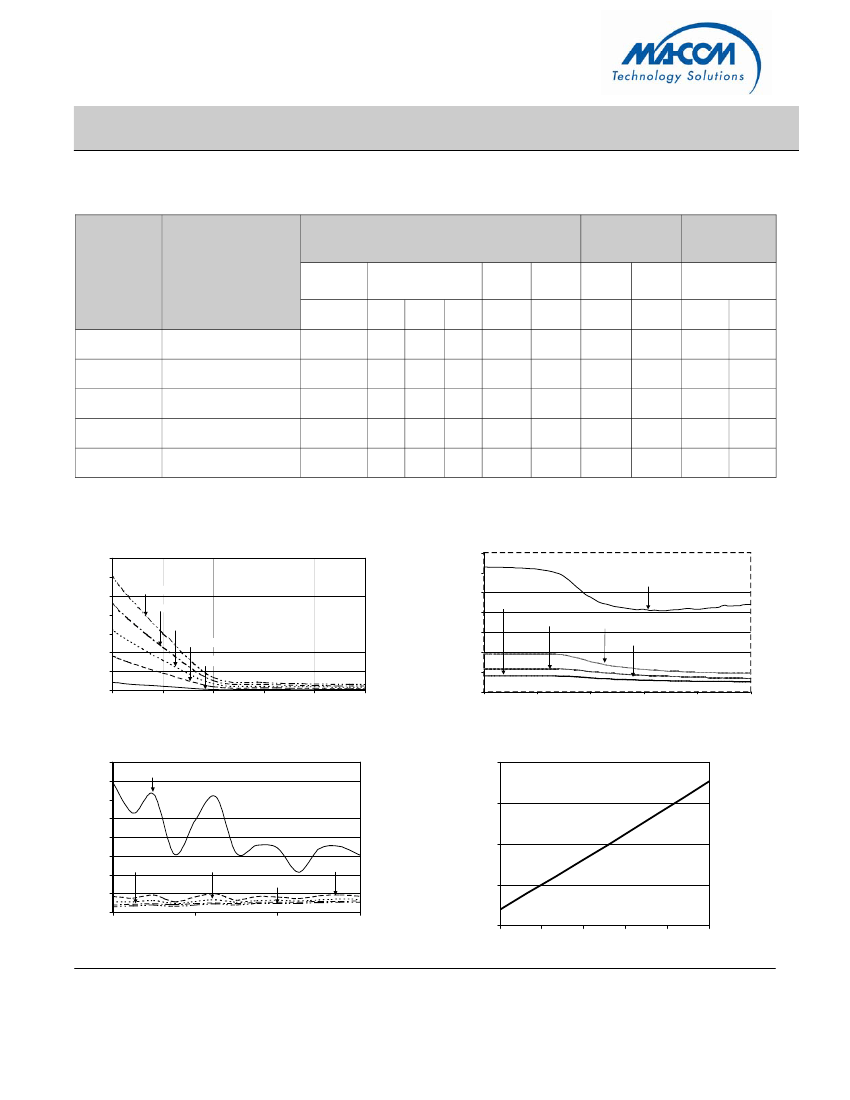

Typical Capacitance vs. Biasing Voltage
140
Typical Series Resistance vs. Biasing Voltage
7.0
6.0
MA4ST2200
Capacitance (pF)
100
80
60
40
20
0
0
MA4ST2600
MA4ST2500
MA4ST2400
MA4ST2300
MA4ST2200
Series Resistance (Ohm)
120
5.0
MA4ST2600
4.0
MA4ST2400
MA4ST2300
MA4ST2500
3.0
2.0
1.0
0.0
1
2
3
4
5
0
1
2
3
4
5
Biasing Voltage (V)
Biasing Voltage (V)
Typical Series Resistance vs. Frequency
8.0
7.0
Series Resistance (Ohm)
MA4ST2200
Typical Capacitance Change vs. Temperature
0.08
% of Capacitance Change
(relative to 25 C)
6.0
5.0
4.0
3.0
MA4ST2500
MA4ST2400
MA4ST2600
MA4ST2300
0.04
0
2.0
1.0
0.0
200
300
-0.04
400
Frequency (MHz)
500
-0.08
-40
-15
10
35
60
85
Temperature (degree C)
2
Specifications subject to change without prior notification
ADVANCED:
Data Sheets contain information regarding a product MA-COM Technical Solutions is
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
considering for development. Performance is based on target specifications, simulated results, and/
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product MA-COM Technical Solutions
Visit www.macom.com for additional data sheets and product information.
has under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available. Commit-
MA-COM Technical Solutions and its affiliates reserve the right to make changes to the
ment to produce in volume is not guaranteed.
product(s) or information contained herein without notice.
MA4ST2000 Series
Ultra High Ratio Si Hyperabrupt Varactor Diode
Typical Capacitance Values
MA4ST2200
MAVR-002200-
XXXXXX
Ct (pF)
0.1
0.3
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
7.643
6.746
5.948
4.006
1.895
0.985
0.744
0.638
0.579
0.543
0.517
0.469
M/A-COM Products
Rev. V9
V
R
(V)
MA4ST2300
MAVR-002300-
XXXXX
MAVR-002301-
11410T
Ct (pF)
34.06
30.07
26.56
18.00
8.313
3.941
2.889
2.429
2.166
1.993
1.845
1.771
MA4ST2400
MAVR-002400-
XXXXXX
Ct (pF)
60.26
53.12
46.81
31.75
15.52
7.470
5.407
4.512
4.000
3.663
3.370
3.200
MA4ST2500
MAVR-002500-
XXXXXX
Ct (pF)
86.48
76.34
67.36
46.09
22.83
10.05
7.112
5.918
5.275
4.895
4.691
4.557
MA4ST2600
MAVR-002600-
XXXXXX
Ct (pF)
113.09
99.80
88.07
60.31
30.21
13.94
9.952
8.274
7.332
6.749
6.317
6.086
Specifications subject to change without prior notification
3
ADVANCED:
Data Sheets contain information regarding a product MA-COM Technical Solutions is
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
considering for development. Performance is based on target specifications, simulated results, and/
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product MA-COM Technical Solutions
Visit www.macom.com for additional data sheets and product information.
has under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available. Commit-
MA-COM Technical Solutions and its affiliates reserve the right to make changes to the
ment to produce in volume is not guaranteed.
product(s) or information contained herein without notice.
MA4ST2000 Series
Ultra High Ratio Si Hyperabrupt Varactor Diode

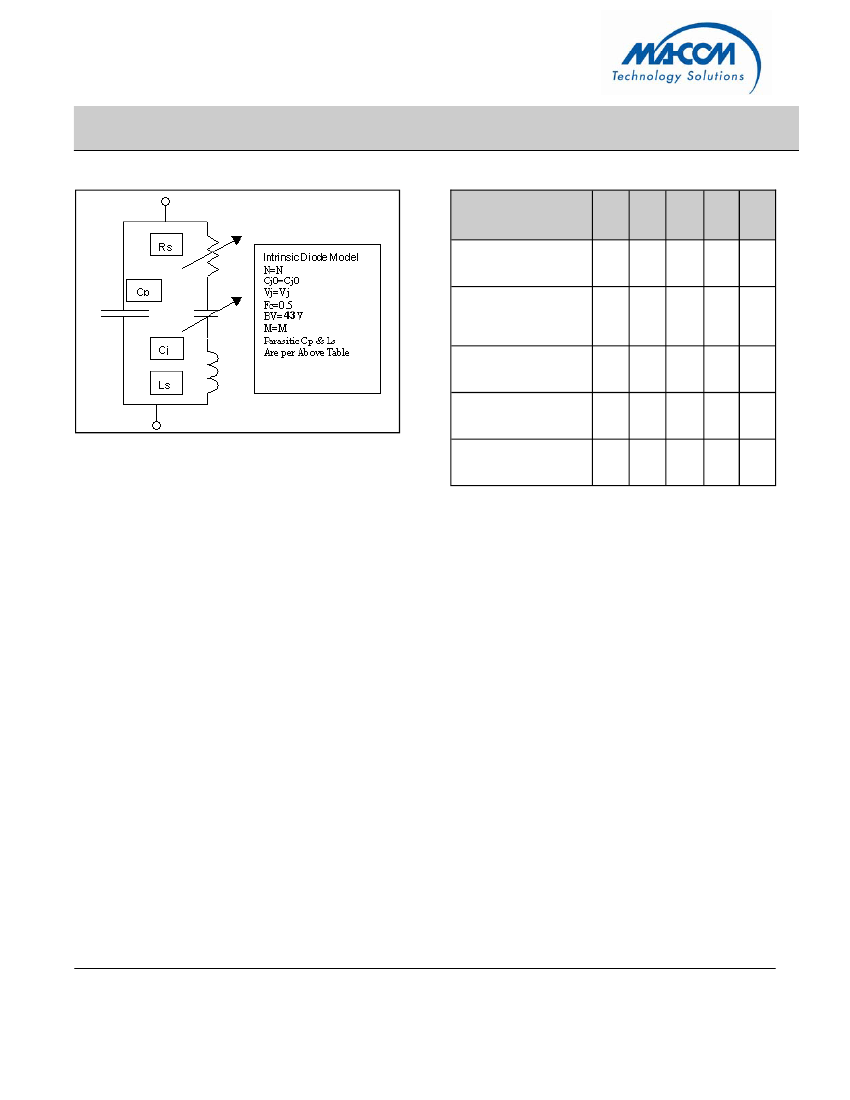

Spice Model
Part Number
MA4ST2200
MAVR-002200-XXXXXX
MA4ST2300
MAVR-002300-XXXXXX
MAVR-002301-11410T
MA4ST2400
MAVR-002400-XXXXXX
MA4ST2500
MAVR-002500-XXXXXX
MA4ST2600
MAVR-002600-XXXXXX
M/A-COM Products
Rev. V9
N
CJO
Vj (V)
(pF)
10.2
M
Rs
(Ω)
1.261
12.62 18.60 1.114
1.210
46.8
2.450 4.268 1.085
1.158
84.6
1.322 2.632 0.903
1.204
100
1.616 2.700 0.842
1.196
159
1.169 2.270 0.910
4
Specifications subject to change without prior notification
ADVANCED:
Data Sheets contain information regarding a product MA-COM Technical Solutions is
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
considering for development. Performance is based on target specifications, simulated results, and/
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product MA-COM Technical Solutions
Visit www.macom.com for additional data sheets and product information.
has under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available. Commit-
MA-COM Technical Solutions and its affiliates reserve the right to make changes to the
ment to produce in volume is not guaranteed.
product(s) or information contained herein without notice.
MA4ST2000 Series
Ultra High Ratio Si Hyperabrupt Varactor Diode

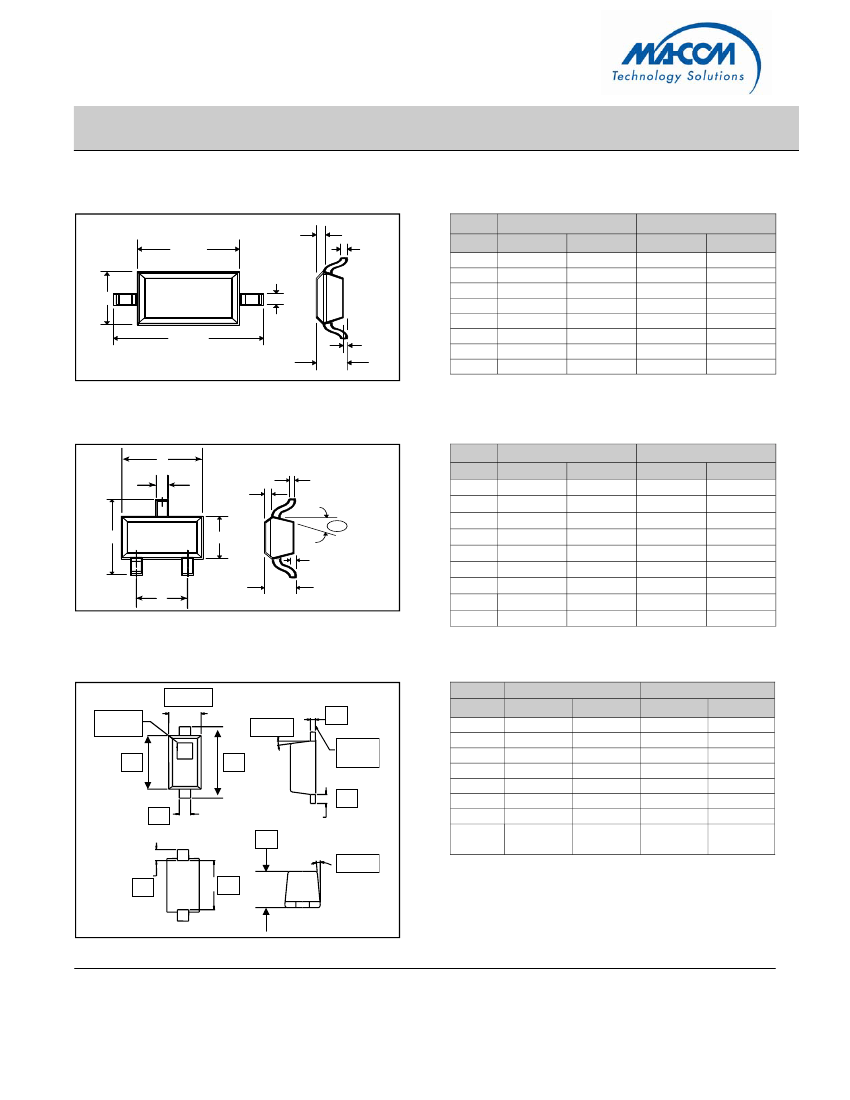

Case Styles
SOD-323 (Case Style 1141)
INCHES
C
F
D
G
E
M/A-COM Products
Rev. V9
MILLIMETERS
MIN.
⎯
⎯
⎯
0.25
0.08
1.6
1.14
2.3
DIM.
A
B
C
D
E
F
G
H
MIN.
⎯
⎯
⎯
0.010
0.003
0.063
0.045
0.091
MAX.
0.043
0.004
0.008
0.016
0.006
0.075
0.057
0.106
MAX.
1.1
0.1
0.2
0.4
0.15
1.9
1.45
2.7
H
B
A
SC-70, 3 Lead (Case Style 1146)
A
E
J
H
DIM.
A
B
10
°
M A X .
INCHES
MIN.
MAX.
0.071
0.045
0.071
0.047
0.010
0.031
0.000
0.004
0.004
0.087
0.053
0.094
0.057
0.016
0.039
0.004
0.007
0.010
MILLIMETERS
MIN.
MAX.
1.80
1.14
1.80
1.19
0.25
0.80
0.00
0.10
0.10
2.21
1.35
2.40
1.45
0.41
1.00
0.10
0.18
0.25
C
B
G
F
D
C
D
E
F
G
H
J
SC-79 (Case Style 1279)
Topview
Cathode
Mark
B
10
°
Max
Seating
Plane
DIM.
A
B
C
D
E
F
G
H
10
°
Max
INCHES
MIN.
MAX.
0.020
0.003
0.006
0.010
0.059
0.043
0.011
0.037
typical
0.028
0.008
0.010
0.014
0.067
0.051
0.012
0.043
MILLIMETERS
MIN.
MAX.
0.50
0.08
0.15
0.25
1.50
1.09
0.28
0.94
0.71
0.20
0.25
0.36
1.70
1.30
0.30
1.09
F
E
C
D
A
G
H
Specifications subject to change without prior notification
5
ADVANCED:
Data Sheets contain information regarding a product MA-COM Technical Solutions is
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
considering for development. Performance is based on target specifications, simulated results, and/
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product MA-COM Technical Solutions
Visit www.macom.com for additional data sheets and product information.
has under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available. Commit-
MA-COM Technical Solutions and its affiliates reserve the right to make changes to the
ment to produce in volume is not guaranteed.
product(s) or information contained herein without notice.
PCB Design
京公网安备 11010802033920号
EEWORLD
