NE556-1N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> NE556-1N

NE556-1N: DescriptionDUAL PULSE, 0.5MHz, TIMER, PDIP14, PLASTIC, DIP-14; CategoryAnalog mixed-signal IC The signal circuit; File Size151KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

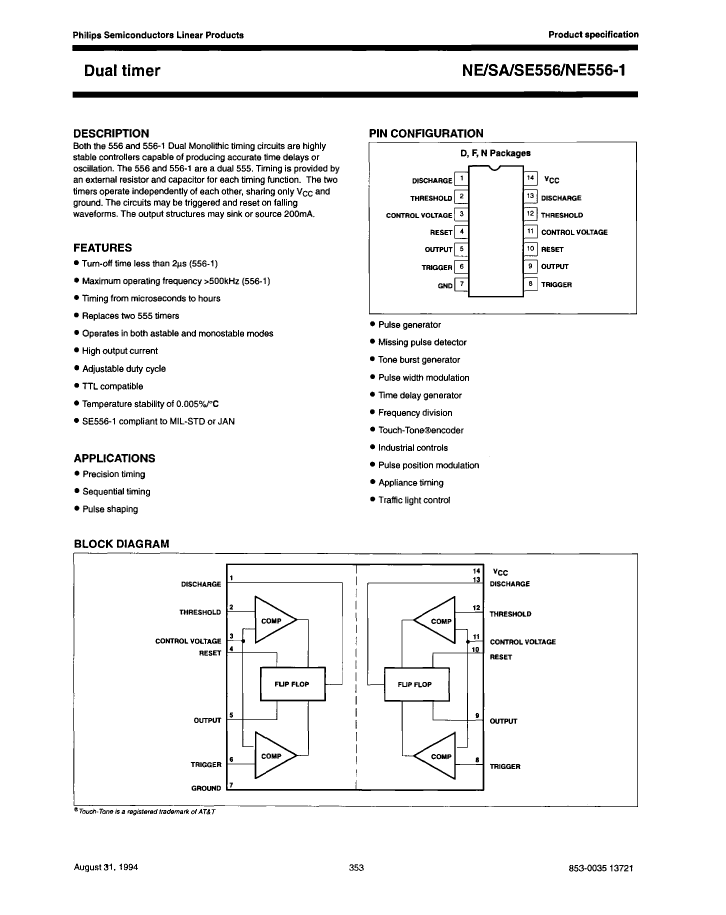

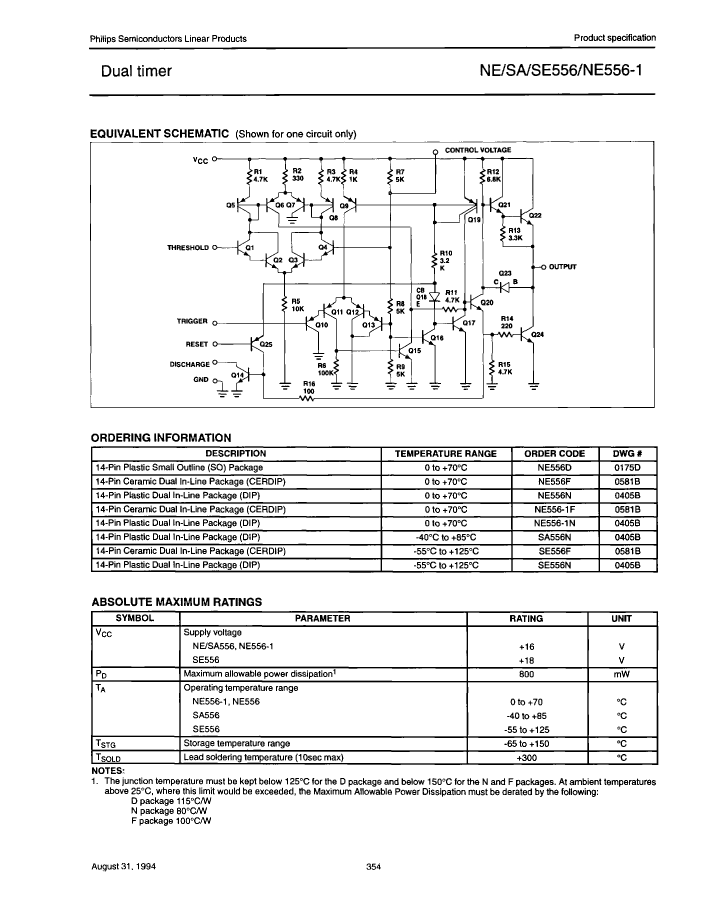

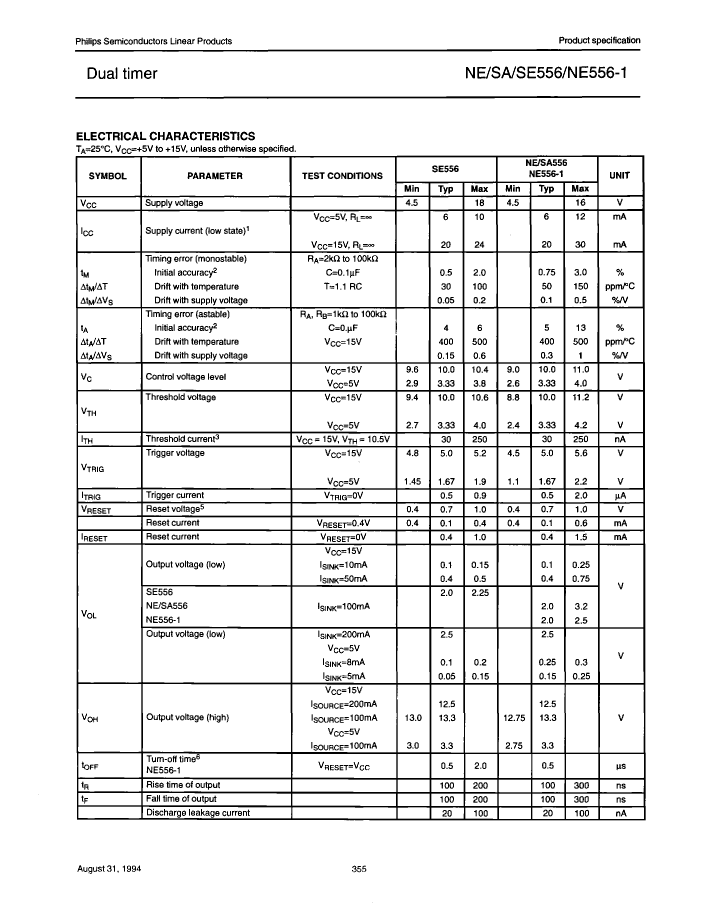

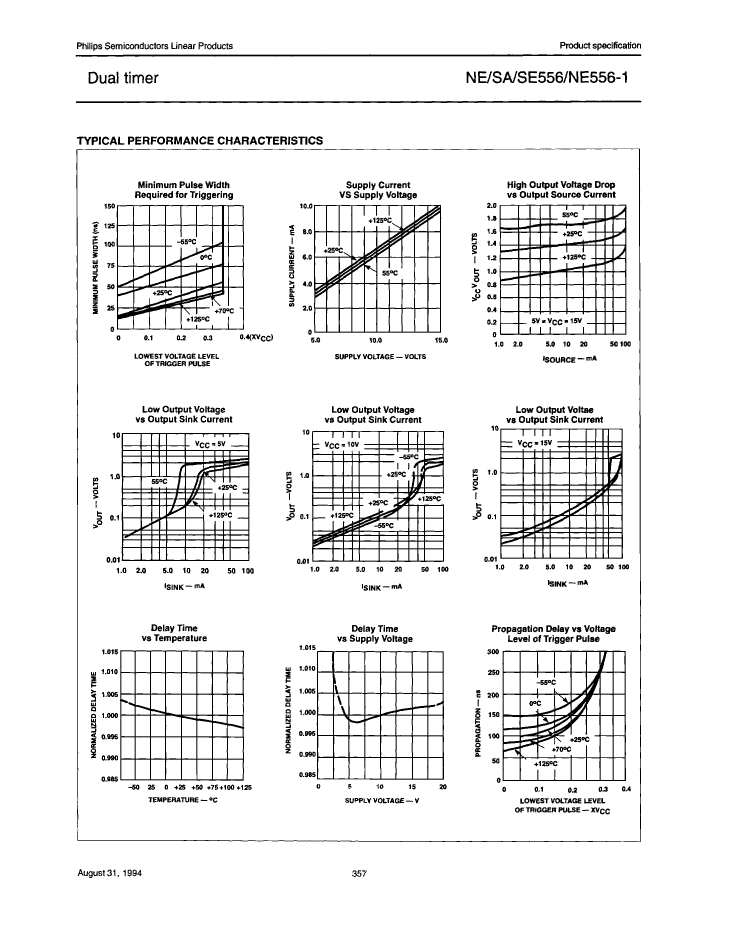

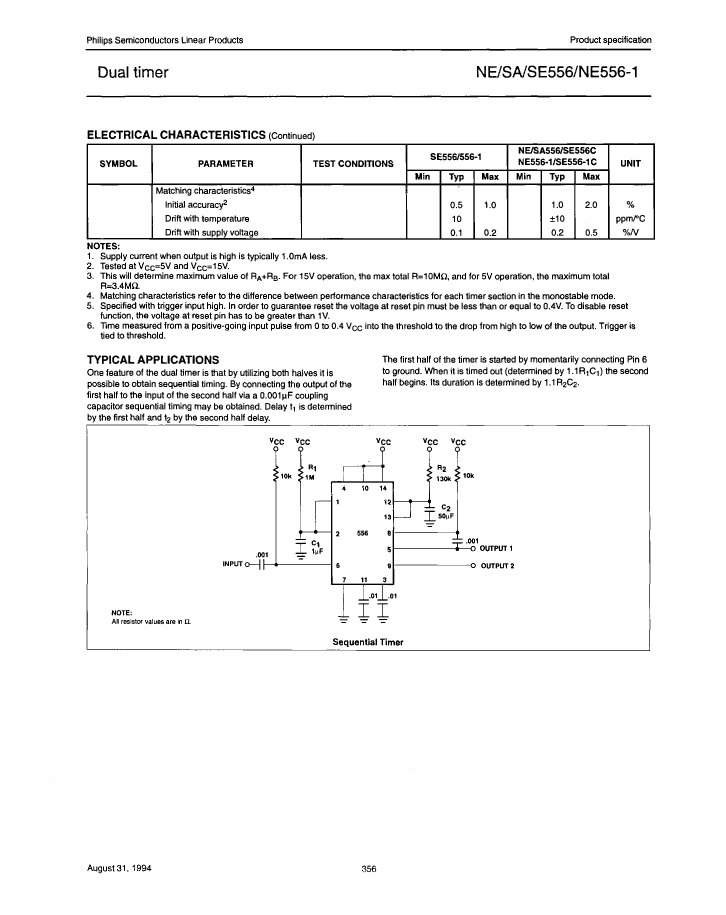

NE556-1N Overview

DUAL PULSE, 0.5MHz, TIMER, PDIP14, PLASTIC, DIP-14

NE556-1N Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
package instruction	PLASTIC, DIP-14
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	PULSE
control mode	VOLTAGE-MODE
JESD-30 code	R-PDIP-T14
length	19.025 mm
Number of functions	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output frequency	0.5 GHz
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.2 mm
Maximum supply current (Isup)	30 mA
Maximum supply voltage (Vsup)	16 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Maximum switching frequency	100 kHz
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

NE556-1N Related Products

	NE556-1N	RNN70C2803BPRJ8	SE556N	SE556F883C	NE556F
Description	DUAL PULSE, 0.5MHz, TIMER, PDIP14, PLASTIC, DIP-14	Fixed Resistor, Metal Film, 0.5W, 280000ohm, 350V, 0.1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED	IC DUAL PULSE, TIMER, PDIP14, PLASTIC, DIP-14, Analog Waveform Generation Function	IC DUAL PULSE, TIMER, CDIP14, CERDIP-14, Analog Waveform Generation Function	IC DUAL PULSE, TIMER, CDIP14, CERDIP-14, Analog Waveform Generation Function
package instruction	PLASTIC, DIP-14	AXIAL LEADED	PLASTIC, DIP-14	DIP,	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Number of terminals	14	2	14	14	14
Maximum operating temperature	70 °C	175 °C	125 °C	125 °C	70 °C
Package form	IN-LINE	Axial	IN-LINE	IN-LINE	IN-LINE
surface mount	NO	NO	NO	NO	NO
technology	BIPOLAR	METAL FILM	BIPOLAR	BIPOLAR	BIPOLAR
Maker	NXP	-	-	NXP	NXP
Parts packaging code	DIP	-	DIP	DIP	DIP
Contacts	14	-	14	14	14
Analog Integrated Circuits - Other Types	PULSE	-	PULSE; RECTANGULAR	PULSE	-
JESD-30 code	R-PDIP-T14	-	R-PDIP-T14	R-GDIP-T14	R-CDIP-T14
Number of functions	2	-	2	2	-
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	-	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	-	DIP14,.3	-	DIP14,.3
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	16 V	-	18 V	18 V	-
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V	4.5 V	-
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V	-
Temperature level	COMMERCIAL	-	MILITARY	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL
ECCN code	-	EAR99	EAR99	EAR99	-
JESD-609 code	-	e0	e0	-	e0
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
