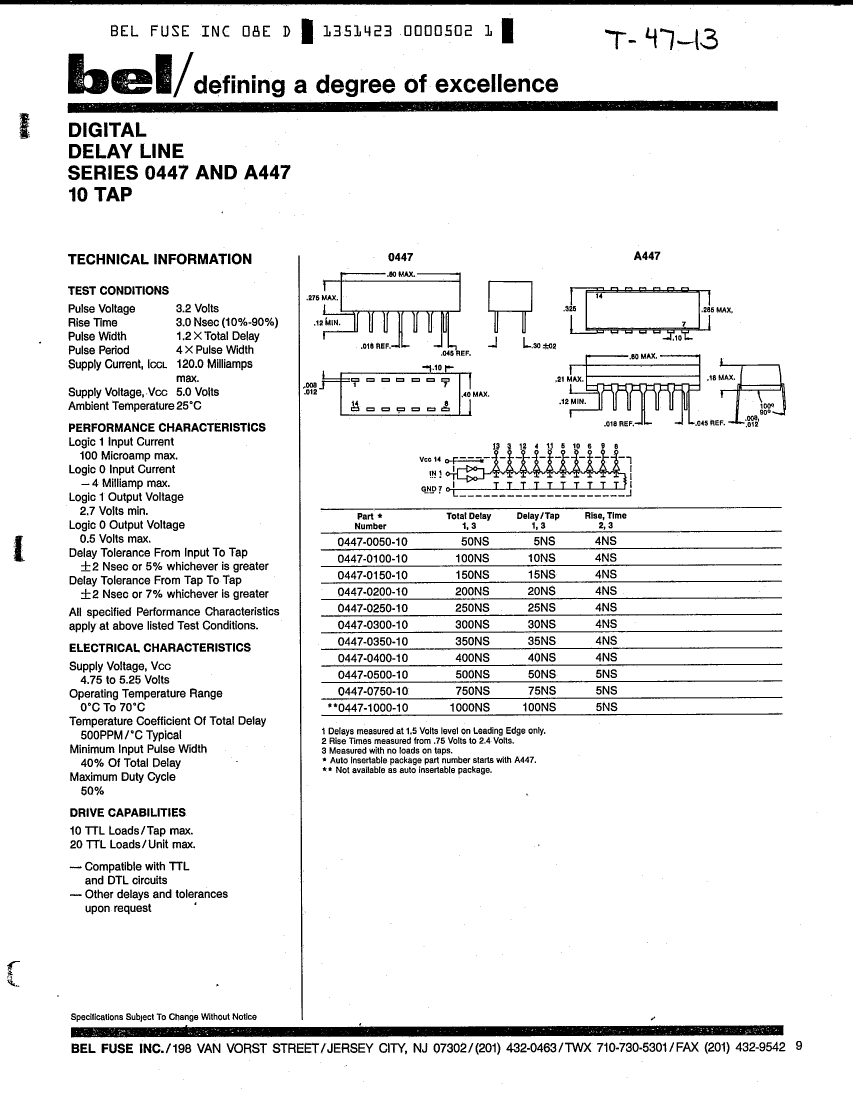

0447-0200-10: DescriptionActive Delay Line, 1-Func, 10-Tap, True Output, PDIP14, DIP-14; Categorylogic logic; File Size92KB，1 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric Compare View All

0447-0200-10 Overview

Active Delay Line, 1-Func, 10-Tap, True Output, PDIP14, DIP-14

0447-0200-10 Parametric

Parameter Name	Attribute value
Maker	Bel
package instruction	DIP,
Reach Compliance Code	compliant
Is Samacsys	N
series	0447
JESD-30 code	R-PDIP-T14
length	20.32 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Maximum seat height	6.985 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	200 ns
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

0447-0200-10 Related Products

	0447-0200-10	0447-0100-10	0447-0250-10	0447-0300-10	0447-0350-10	0447-0750-10	0447-1000-10
Description	Active Delay Line, 1-Func, 10-Tap, True Output, PDIP14, DIP-14	Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP14, DIP-14	Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP14, DIP-14	Active Delay Line, 1-Func, 10-Tap, True Output, PDIP14, DIP-14	Active Delay Line, 1-Func, 10-Tap, True Output, PDIP14, DIP-14	Active Delay Line, 1-Func, 10-Tap, True Output, PDIP14, DIP-14	Active Delay Line, 1-Func, 10-Tap, True Output, PDIP14, DIP-14
Maker	Bel	Bel	Bel	Bel	Bel	Bel	Bel
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Is Samacsys	N	N	N	N	N	N	N
series	0447	0447	0447	0447	0447	0447	0447
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14
length	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm
Logic integrated circuit type	ACTIVE DELAY LINE	PASSIVE DELAY LINE	PASSIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE
Number of functions	1	1	1	1	1	1	1
Number of taps/steps	10	10	10	10	10	10	10
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
programmable delay line	NO	NO	NO	NO	NO	NO	NO
Maximum seat height	6.985 mm	6.985 mm	6.985 mm	6.985 mm	6.985 mm	6.985 mm	6.985 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Total delay nominal (td)	200 ns	100 ns	250 ns	300 ns	350 ns	750 ns	1000 ns
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	1	1	1	1
