0805HT-12NTGGB datasheet, PDF - EEWORLD Datasheet

0805HT-12NTGGB: DescriptionGeneral Purpose Inductor, 0.012uH, 2%, 1 Element, Ceramic-Core, SMD; CategoryPassive components inductor; File Size87KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

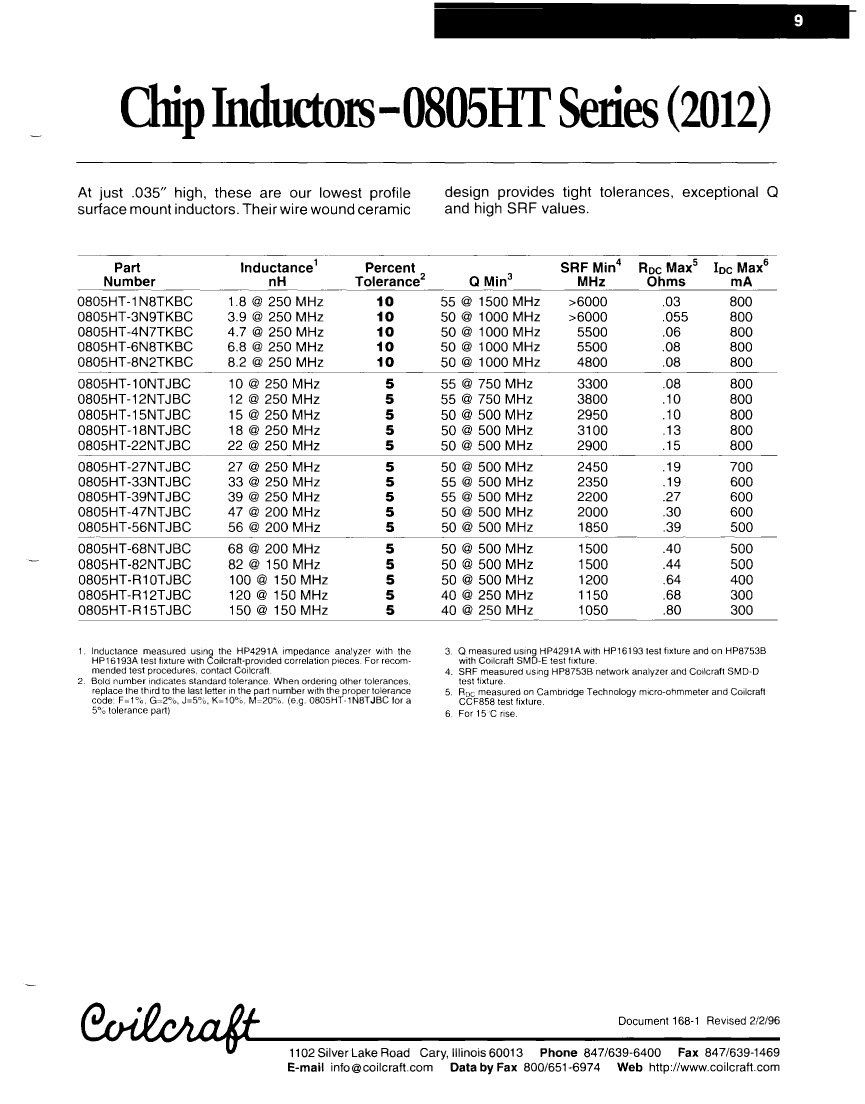

0805HT-12NTGGB Overview

General Purpose Inductor, 0.012uH, 2%, 1 Element, Ceramic-Core, SMD

Parameter Name	Attribute value
Maker	COILCRAFT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
core material	CERAMIC
DC Resistance	0.1 Ω
Nominal inductance(L)	0.012 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C

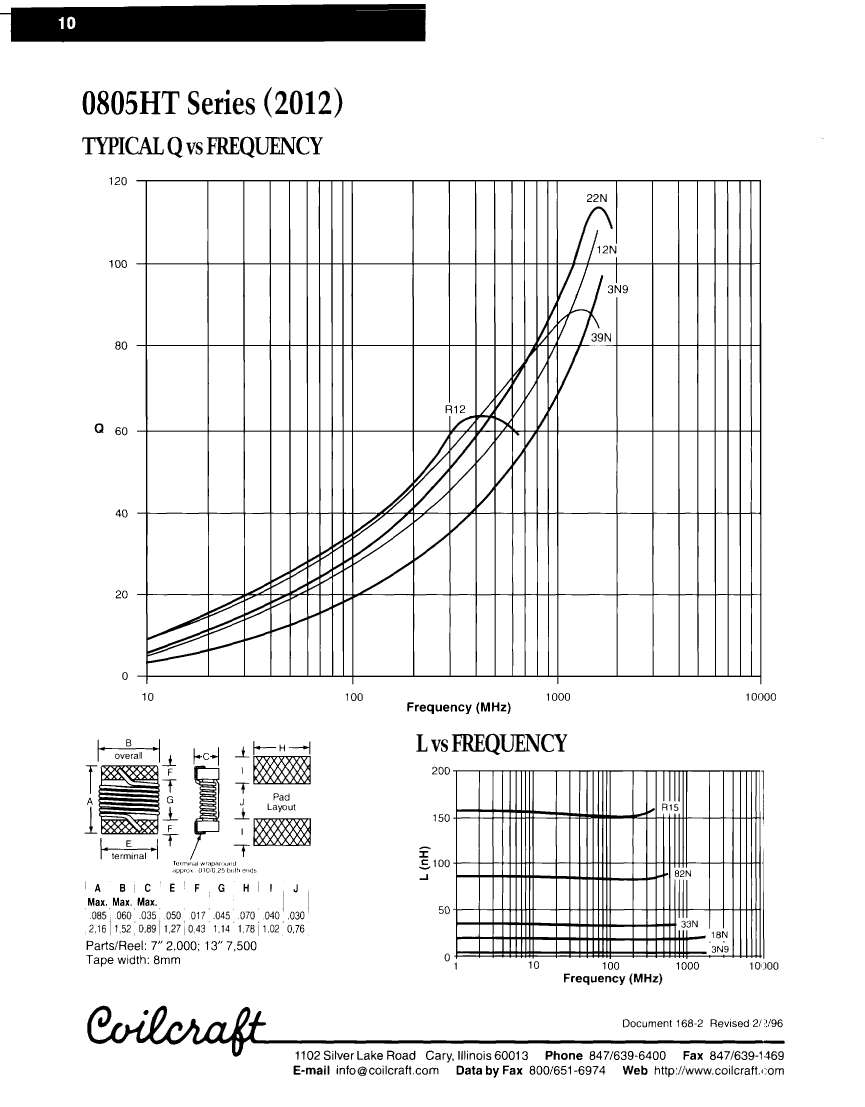

Minimum quality factor (at nominal inductance)	55
Maximum rated current	0.8 A
self resonant frequency	3800 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 750 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	250 MHz
Tolerance	2%
Base Number Matches	1
