.156" x .200"
NO. OF CONTACTS
SINGLE
DUAL
READOUT READOUT
6
12
10
20
12
24
15
30
18
36
22
44
36
72
43
86
A
1.842
2.466
2.778
3.246
3.714
4.338
6.522
7.614
B
1.532
2.156
2.468
2.936
3.404
4.028
6.212
7.304
C
1.246
1.870
2.182
2.650
3.118
3.742
5.926
7.018
D
1.100
1.724
2.036
2.504
2.972
3.596
5.780
6.872
E
1.290
1.910
2.220
2.700
3.160
3.790
5.940
7.040
F
1.086
1.710
2.022
2.490
2.958
3.582
5.766
6.858
H
.343
.343
.343
.343
.343
.343
.500
.500
J
.380
.380
.380
.380
.380
.380
.540
.540

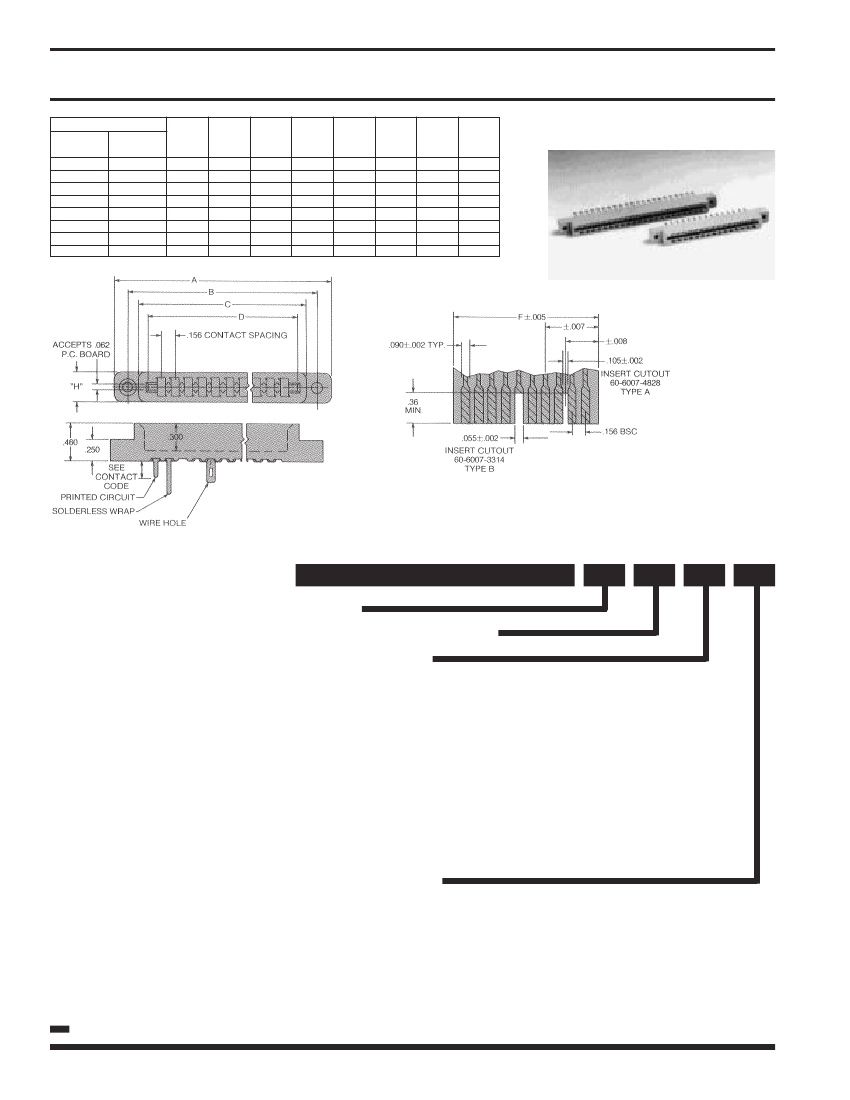

SERIES 6007
Rectangular Tails
Features
*Meets the performance requirements
of MIL-C-21097
Single and dual read-out contacts
Nine sizes: 6/12, 10/20, 12/24, 15/30,
18/36, 22/44, 36/72, 43/86, contacts
Three mounting styles: mounting holes,
floating eyelets and threaded inserts
Ordering Code
Typical Example
00
6007
030
450
812
SERIES
NUMBER OF CONTACTS
CONTACT CODE
Single Read-Out (contact tails on number side of insulator)
1
*457
60-6007-06-53 Wire hole special: .227" lg. (2 term.) (double sided)
(.013" x .089")
2
551
60-6007-16-23 Wire hole (single sided): .277" lg. (.013" x .045")
552
60-6007-16-33 P.C. tab (single sided): .202" lg. (.013" x .045")
*936
60-6007-06-43 Wrap (.016" x .047") special: .497" lg. (double sided)
*938
60-6007-06-33 P.C. tab special: .215" lg. (double sided) (.013" x .047")
2
*940
60-6007-06-23 Wire hole special: .227" lg. (double sided) (.013" x .089")
Dual Read-Out
1
450
60-6007-19-23 Wire hole: .277" lg. (.013" x .078")
451
60-6007-19-33 P.C. tab: .202" lg. (.013" x .048")
452
60-6007-18-13 Solderless wrap (.016" x .044"): .697" lg.
453
60-6007-18-23 P.C. tab: .347" lg. (.016" x .044")
454
60-6007-18-33 Solderless wrap (.016" x .044"): .517" lg.
*498
60-6007-05-33 Switching (used in pairs): .202" lg. P.C. tab
*941
60-6007-05-13 Switching (used in pairs): .229" lg. wire hole
1
Wire hole size: (.062" x .125")
2
Wire hole size: (.046" x .125")
Specifications
Current rating:
5 amperes
Contact resistance:
6 milliohms, maximum
Contact material:
Phosphor bronze
Contact plating:
Overall:
50-100 microinches nickel and 10
microinches min. gold overall
Insertion/withdrawal force:
2 to 16
ounces per contact pair, nominal P.C.
card
Insulator material:
Diallyl phthalate, glass-
filled, per MIL-M-14F, type SDGF (check
factory for other available materials)
Insulation resistance:
25,000 megohms,
minimum
Dielectric withstanding voltage:
2000
VAC between adjacent contacts, RMS,
at sea level
VARIATION CODE
Plating
Overall
012
With .128" dia. mounting holes
018
With #4-40 insert
*Selective plating not available.
For contacts 60-6007-05-06
POLARIZATION
Ordering polarizing insert separately by part number A type: 60-6007-4828;
B type: 60-6007-3314
Recommended for standard applications. Available through ELCO franchised distributors.
