0731711500: DescriptionRF BNC Connector, Female, Panel Mount, Board Mount, Crimp Solder Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size22KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0731711500 Overview

RF BNC Connector, Female, Panel Mount, Board Mount, Crimp Solder Terminal, Jack, ROHS COMPLIANT

0731711500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	73171
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP SOLDER
Base Number Matches	1

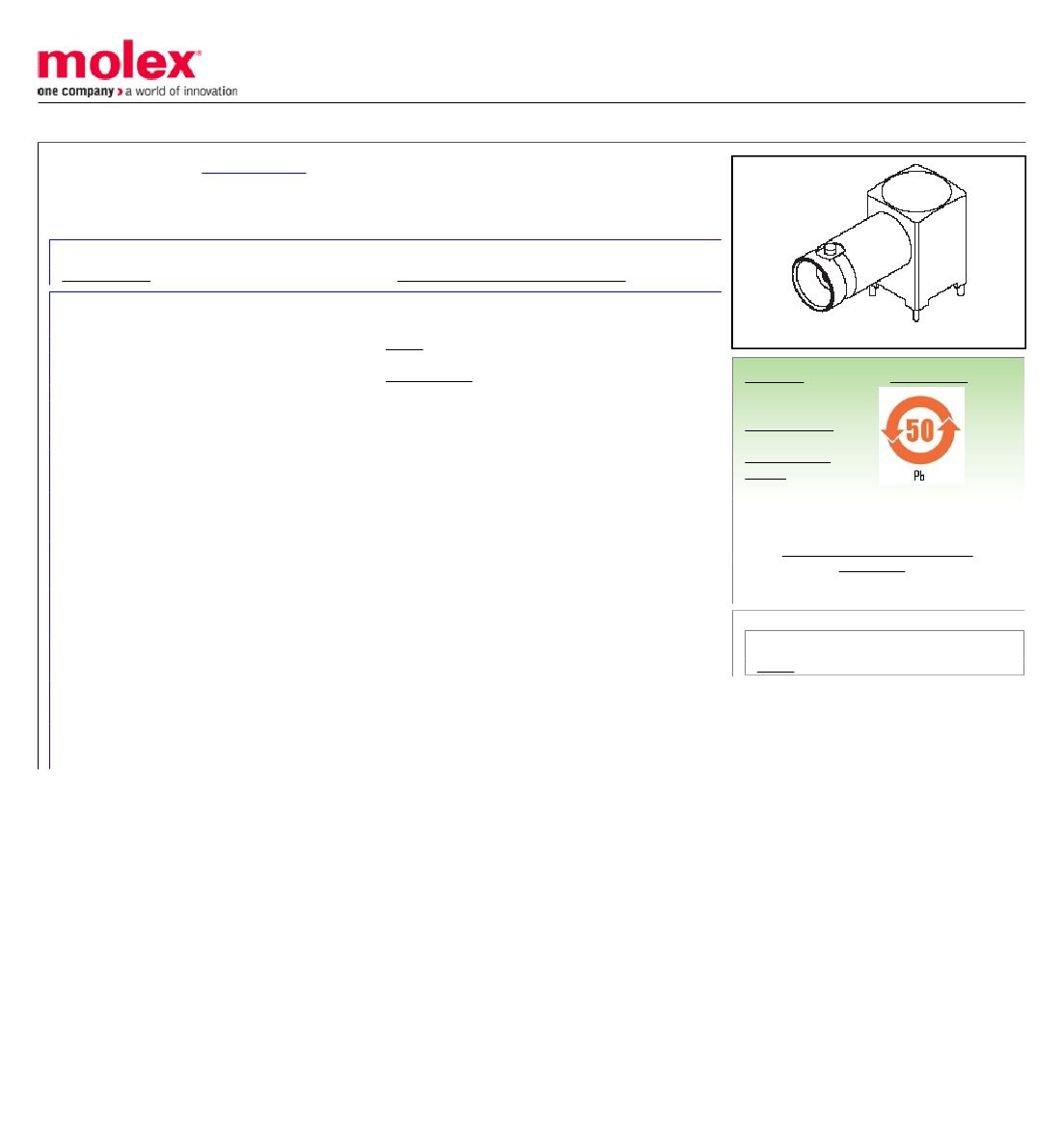

Preview

Download Datasheet

View All

This document was generated on 11/06/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

Drawing (PDF)

General

Product Family

Series

IP Rated

More Detailed Tech Information

Overview

Product Name

Style

Wire/Cable Type

Physical

Cable Attachment

Gender

Keying to Mating Part

Orientation

PCB Mounting

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Panel Mount

Panel Mount Method

Reverse Polar

Electrical

Impedance

Material Info

Reference - Drawing Numbers

Sales Drawing

SD-73171-150

0731711500

Active

50 Ohms BNC Jack Right Angle

RoHS Certificate of Compliance (PDF)

RF/Coax Connectors

73171

No

rf@molex.com

BNC

PCB

N/A

Crimp

Jack

None

Right Angle

Through Hole

0.083 In

2.11 mm

Tray

Yes

N/A

No

50 ohms

Series image - Reference only

EU RoHS

China RoHS

RoHS Compliant RF

Product

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

73171 Series

This document was generated on 11/06/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
