Varicon
®
Series 7024 – 0.100" Staggered Dual Row
FEATURES
•

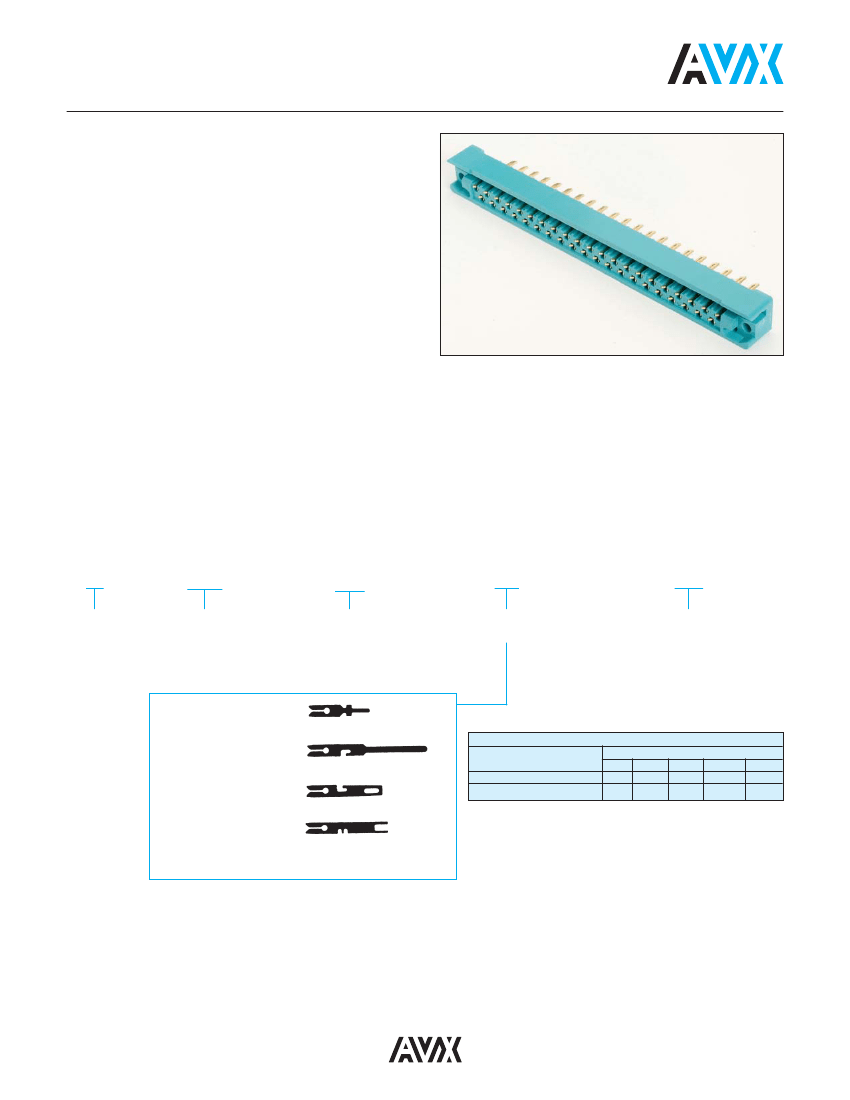

Guide sockets facilitate mating, ensure correct alignment
•
Open-ended card slot; use with p.c. card of any width
•
Wide range of contact terminations
•
Sizes 17, 23, 29, 35, 41
•
For
1
⁄
16
" or
3
⁄
32
" p.c. card
•
Mates with Series 7023 Plug
TECHNICAL SPECIFICATIONS
Current Rating:
10 amperes
Contact Resistance:
6 milliohms, maximum
Contact Material and Plating:
Phosphor Bronze per QQ-B-750,
Composition A.
Gold, 10 microinches minimum,
over nickel, 30 to 100 microinches
Insulator Material:
Diallyl phthalate, glass-filled,
flame resistant, per MIL-M-14F,
Type SDGF.
Insulation Resistance:
25,000 megohms, minimum
Dielectric Withstanding Voltage:
Sea Level: 1800 Volts rms
3.4" Hg:
675 Volts rms
Insertion/Withdrawal Force:
2 to 16 ounces per contact
Operating Temperature:
-40ºC to +120ºC
ORDERING CODE
00
7024
023
Number of Contacts
017, 023, 029, 035, 041
163
Contact Code
See table.
001
Variation Code
001 = 1/16" Thick Card
002 = 3/32" Thick Card
110 = 1/16" Thick Card 50 mil Gold
111 = 3/32" Thick Card 50 mil Gold
141 = 60 7001 06 33
P.C. Termination for 1/8" Card
156 = 60 7001 18 13
Wire wrapping (.026 x .062 x .600")
163 = 60 7001 19 13
.098" Base Taper Tab w/Wire Hole
166 = 60 7001 20 23
Dual Solder Termination for 2 Wires or Bus Line
(.056 x .125" Slot)
Connector
Description
For 1/16" Card
For 3/32" Card
Availability
No. of Contacts
17
23
29
35
X
X
X
X
X
X
X
X
41
X
X
10
Varicon
®
Series 7024 – 0.100" Staggered Dual Row

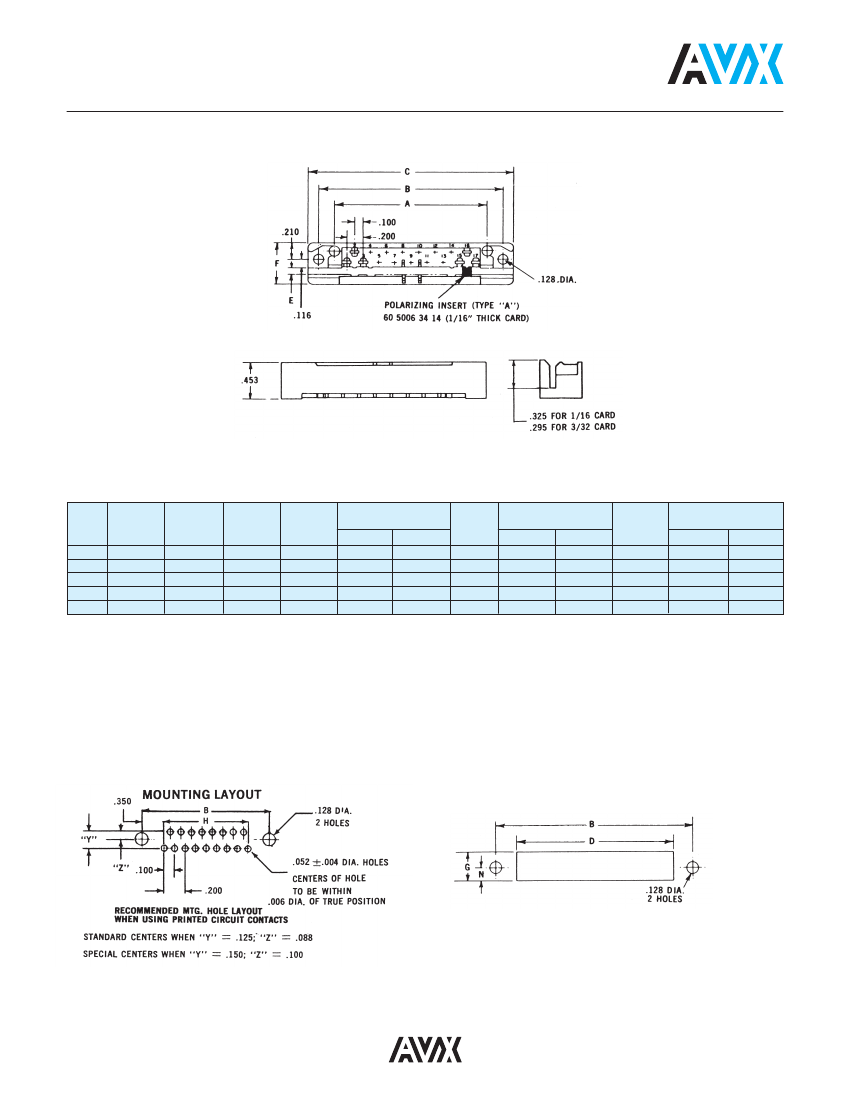

DIMENSIONS:
Number
of
Contacts
17
23
29
35
41
A
1.900 (0.075)
2.500 (0.098)
3.100 (0.122)
3.700 (0.146)
4.300 (0.169)
B
2.300 (0.091)
2.900 (0.114)
3.500 (0.138)
4.100 (0.161)
4.700 (0.185)
C
Max.
2.570 (0.101)
3.170 (0.125)
3.770 (0.148)
4.370 (0.172)
4.970 (0.196)
D
1.185 (0.072)
2.435 (0.096)
3.035 (0.119)
3.635 (0.143)
4.235 (0.167)
E
±.003
±.002
millimeters (inches)
G††
F
17/32"
17/32"
17/32"
17/32"
17/32"
Con.
.468 (0.018)
.468 (0.018)
.468 (0.018)
.468 (0.018)
.468 (0.018)
N-Con.
.343 (0.014)
.343 (0.014)
.343 (0.014)
.343 (0.014)
.343 (0.014)
H
1.600 (0.063)
2.200 (0.087)
2.800 (0.110)
3.400 (0.134)
4.000 (0.157)
Con.
.208 (0.008)
.208 (0.008)
.208 (0.008)
.208 (0.008)
.208 (0.008)
N-Con.
.146 (0.006)
.146 (0.006)
.146 (0.006)
.146 (0.006)
.146 (0.006)
N††
1/16" Card 3/32" Card
.074 (0.003) .105 (0.004)
.074 (0.003) .105 (0.004)
.074 (0.003) .105 (0.004)
.074 (0.003) .105 (0.004)
.074 (0.003) .105 (0.004)
††
N-CON = Non-Conductive Chassis
(1/16" Clearance Around Contacts)
CON = Conductive Chassis
(1/8" Clearance Around Contacts)
MOUNTING LAYOUT
11
