MA
SERIES
P2AU-XXXXE 1KV ISOLATED 0,25 W UNREGULATED SINGLE OUTPUT SIP4
Available Inputs:
5, 12 and 24 VDC
Available Outputs:
3.3, 5, 7.2, 12, 15 and 18 VDC
Other specifications please enquire.
Electrical Specifications
(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)
Input Specifications
Voltage range
Filter
Isolation Specifications
Rated voltage
Leakage current
Resistance
Capacitance
Output Specifications
Voltage accuracy
Ripple and noise (at 20 MHz BW)
Short circuit protection
Line voltage regulation
Load voltage regulation
Temperature coefficient
General Specifications
Efficiency
Switching frequency
Environmental Specifications
Operating temperature (ambient)
Storage temperature
Humidity
Cooling
Physical Characteristics
Dimensions SIP
Weight
Case material
+/- 10 %
Capacitors
1000 VDC
1 mA
10
9
Ohm
80 pF typ.
+/- 5 %, max.
100 mV p-p, max.
Momentary
+/- 1,2 % / 1,0 % of Vin
+/- 8 %, load = 20 ~ 100 %
+/- 0,02 % / °C
55 % to 75 %
80 KHz, typ.
- 40° C to + 85° C
- 55 °C to + 125 °C
Up to 90 %, non condensing
Free air convection
11,68 x 6,00 x 10,16 mm
0,46 x 0,24 x 0,40 inches
1,8 g
Non conductive black plastic
Examples of Partnumbers
PART
NO.
INPUT
VOLTAGE
(VDC)
INPUT
CURRENT
NO LOAD
INPUT
CURRENT
FULL
LOAD
OUTPUT
VOLTAGE
(VDC)
OUTPUT
CURRENT
(max. mA)
EFFICIENCY FULL LOAD
(% TYP.)
P2AU-0505E
P2AU-0512E
P2AU-0515E
P2AU-0524E
P2AU-1205E
P2AU-1212E
P2AU-1215E
P2AU-1505E
P2AU-2405E
P2AU-2412E
P2AU-2415E
5
5
5
5
12
12
12
15
24
24
24
14
14
14
18
12
12
12
09
07
07
07
77.00
70.43
70.43
73.53
32.06
29.35
29.35
25.00
17.95
16.03
16.03
05
12
15
24
05
12
15
05
05
12
15
50.00
20.83
16.66
10.42
50.00
20.83
16.66
50.00
50.00
20.83
16.66
65
71
71
68
65
71
71
67
58
65
65
.
MA
SERIES
P2AU-XXXXE 1KV ISOLATED 0,25 W UNREGULATED SINGLE OUTPUT SIP4

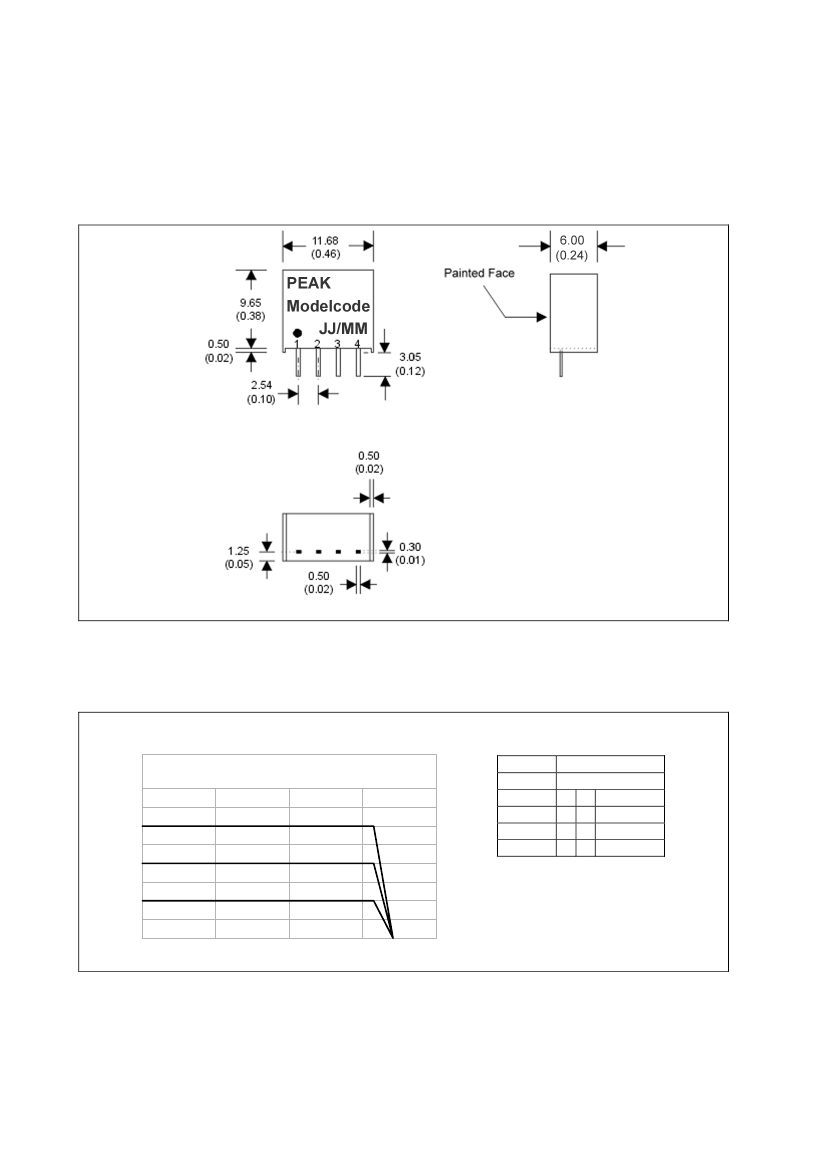

Dimensions
Pinning
Output
Temperature Derating Graph
Ambient Temperature ° C
85
1.00 W
0.50 W
0.25 W
Pin
#
1
2
3
4
Connection
Single
- V Input
+ V Input
- V Output
+ V Output
- 40
0
40
80
100
Specification can be changed without notice.
REV:2 / 09.2001
Copyright PEAK electronics GmbH
