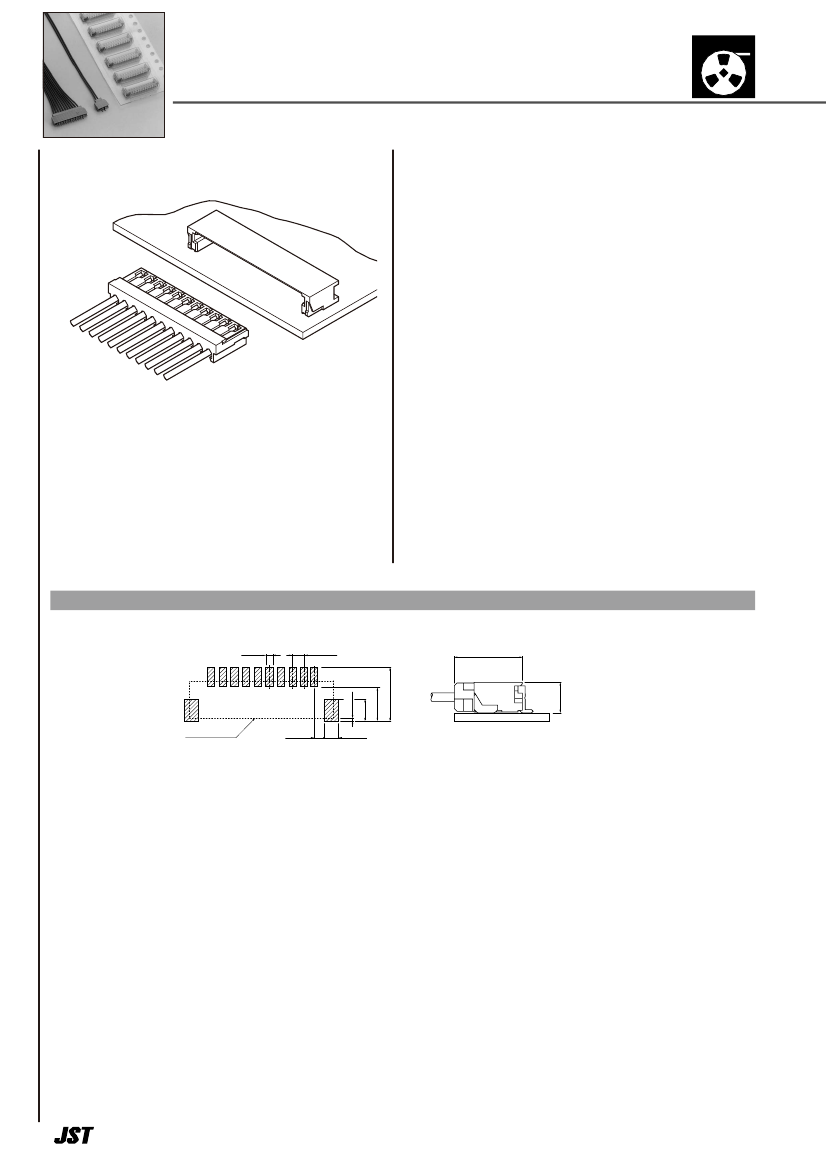

SSR
CONNECTOR
Emboss Tape
1.0mm pitch/Disconnectable Insulation displacement connectors
Specifications –––––––––––––––––––
• Current rating: 0.5A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/20m
Ω
max.
After environmental testing/40m
Ω
max.
• Insulation resistance:
100M
Ω
min.
• Withstanding voltage: 500V AC/minute
• Applicable wire: Conductor size/AWG #32
Conductor/7 strands,
tin-coated annealed copper
Insulation O.D./0.52 to 0.56mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
• Compact
• Twin U-slot insulation displacement section
• 3-point grip construction
• Header designed for vacuum pick and place
robotics
Standards ––––––––––––––––––––––
1
Certified LR20812
0
Recognized E60389
PC board layout (viewed from component side) and Assembly layout
0.6
±0.05
1.0
±0.05
4.5
2.95
±0.1
0.2
±0.1
4.5
±0.1
Header outline
1.0
±0.1
1.2
±0.1
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
1
1.8
±0.1
2.0
SSR CONNECTOR
Socket
Circuits
2
Circuit No.1
1.85
3.5
1.55
Model No.
02SSR-32H
03SSR-32H
04SSR-32H
05SSR-32H
06SSR-32H
08SSR-32H
09SSR-32H
10SSR-32H
11SSR-32H
12SSR-32H
13SSR-32H
14SSR-32H
Dimensions (mm)
A
1.0
2.0
3.0
4.0
5.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
B
3.0
4.0
5.0
6.0
7.0
9.0
10.0
11.0
12.0
13.0
14.0
15.0
Q'ty / box
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
3
4
5
6
8
9
10
11
12
13
14
1.0
A
B
1.0
2.2
Material and Finish
Contact: Phosphor bronze, tin-plated (reflow treatment)
Housing: PA 46, UL94V-0, gray
RoHS compliance
Shrouded header
Circuits
2
B
A
1.0
1.95
3.2
0.7
Model No.
SM02B-SSR-H-TB
SM03B-SSR-H-TB
SM04B-SSR-H-TB
SM05B-SSR-H-TB
SM06B-SSR-H-TB
SM08B-SSR-H-TB
SM09B-SSR-H-TB
SM10B-SSR-H-TB
SM11B-SSR-H-TB
SM12B-SSR-H-TB
SM13B-SSR-H-TB
SM14B-SSR-H-TB
Dimensions (mm)
A
B
1.0
2.0
3.0
4.0
5.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
4.6
5.6
6.6
7.6
8.6
10.6
11.6
12.6
13.6
14.6
15.6
16.6
Q'ty / reel
4,500
4,500
4,500
4,500
4,500
4,500
4,500
4,500
4,500
4,500
4,500
4,500
3
4
5
6
8
1.5
Circuit No.1
1.3 0.2
9
10
11
12
13
14
Material and Finish
Contact: Copper-alloy, copper-undercoated, tin-plated (reflow treatment)
Wafer: PA, UL94V-0, gray
Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)
RoHS compliance
This product displays (LF)(SN) on a label.
Note: The products listed above are supplied on embossed-tape.
