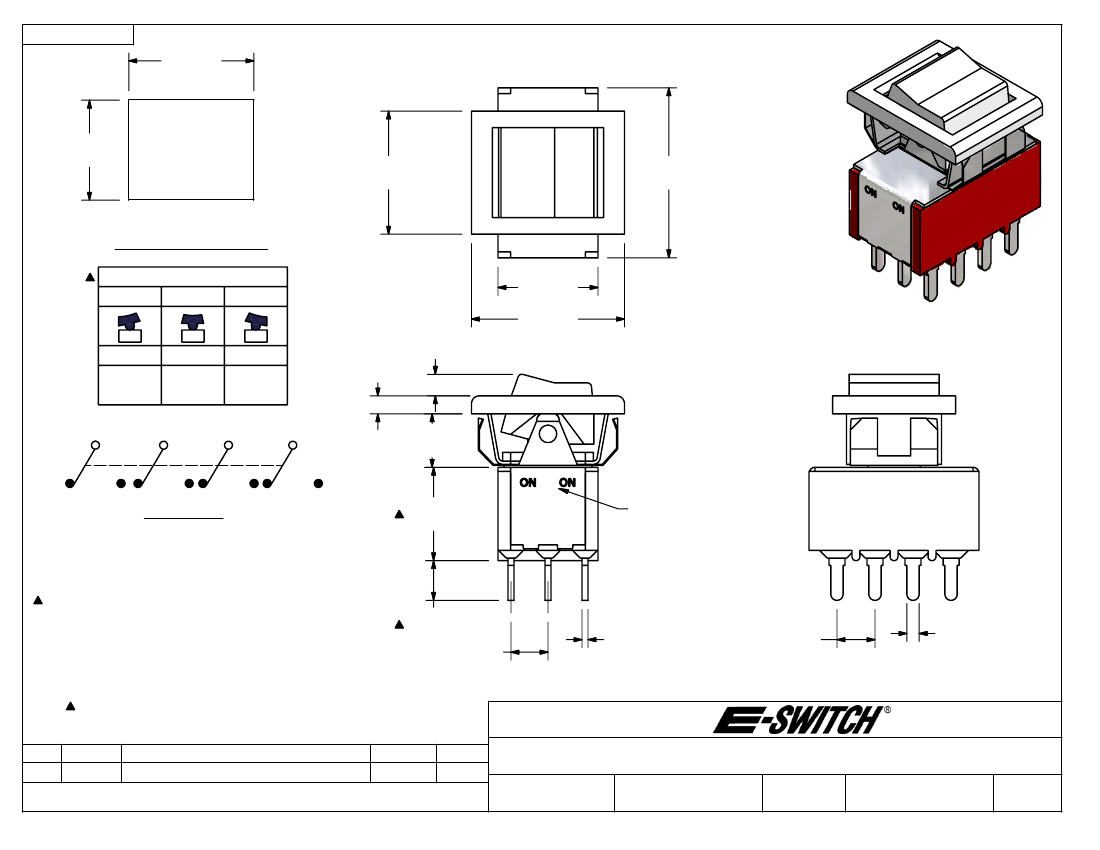

SHEET 1 OF 1
15.88
[.625 in]
12.70
[.500 in]
15.62
[.615 in]
21.59
[.850 in]
RECOMMENDED MOUNTING
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
2.74
[.108 in]
12.70
[.500 in]
19.43
[.765 in]
ISOMETRIC
ON
2-3, 5-6,
8-9, 11-12
NONE
OPEN
ON
2-1, 5-4,
8-7, 11-10
2.29
[.090 in]
2
5
8
11
6.79
[.267 in]
1
3 4
6 7
CIRCUT: 4PDT
910
12
11.85
[.467 in]
E-SWITCH
MARKING ON
OPPOSITE SIDE
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: SILVER
5. RATING: 2A @250 VAC
5A @120 VAC OR 28 VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M
Ω
MIN.
8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
9. OPERATING TEMP.: -30°C to 85°C
10.
DENOTES CRITICAL PARAMETER.
10
5.04
[.198 in]
4.70
[.185 in]
11
12
.76
[.030 in]
12
4.83
[.190 in]
9
6
3
1.57
[.062 in]
A
REV
14878
PCR NO
RELEASED FOR PRODUCTION
DESCRIPTION
5/9/05
DATE
JB
BY
TITLE
SCALE
3004P1RWHTM3QEWHT
2:1
DATE
DR
DWG
REV
