1.5SMC300CA-E3/9AT datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> 1.5SMC300CA-E3/9AT

1.5SMC300CA-E3/9AT: DescriptionDIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor; CategoryDiscrete semiconductor diode; File Size101KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

1.5SMC300CA-E3/9AT Overview

DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor

1.5SMC300CA-E3/9AT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AB
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	EXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage	315 V
Minimum breakdown voltage	285 V
Breakdown voltage nominal value	300 V
Maximum clamping voltage	414 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	BIDIRECTIONAL
Maximum power dissipation	6.5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	256 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

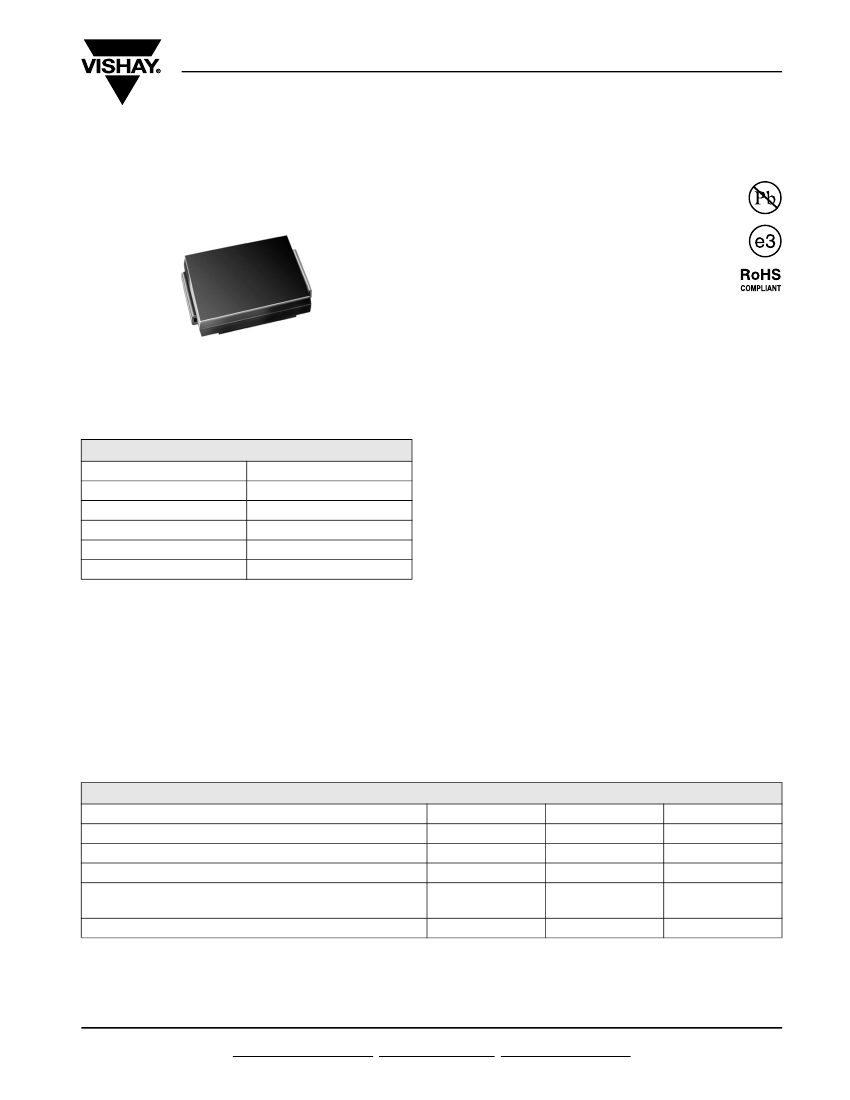

1.5SMC Series

Vishay General Semiconductor

Surface Mount T

RANS

ORB

Transient Voltage Suppressors

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated chip junction

• Available in uni-directional and bi-directional

• 1500 W peak pulse power capability with a

10/1000 µs waveform, repetitive rate (duty

cycle): 0.01 %

• Excellent clamping capability

• Very fast response time

• Low incremental surge resistance

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 260 °C

• Solder dip 260 °C, 40 s

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage

transients induced by inductive load switching and

lighting on ICs, MOSFET, signal lines of sensor units

for consumer, computer, industrial, automotive and

telecommunication.

MECHANICAL DATA

Case:

DO-214AB (SMC)

Molding compound meets UL 94 V-0 flammability

rating

Base P/N-E3 - RoHS compliant, commercial grade

Base P/NHE3 - RoHS compliant, high reliability/

automotive grade (AEC Q101 qualified)

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix meets JESD 201 class 1A whisker test, HE3

suffix meets JESD 201 class 2 whisker test

Polarity:

For uni-directional types the band denotes

cathode end, no marking on bi-directional types

DO-214AB (SMC)

PRIMARY CHARACTERISTICS

uni-directional

bi-directional

PPM

FSM

(uni-directional only)

max.

6.8 V to 540 V

6.8 V to 220 V

1500 W

6.5 W

200 A

150 °C

DEVICES FOR BI-DIRECTION APPLICATIONS

For bi-directional devices use CA suffix (e.g.

1.5SMC220CA).

Electrical characteristics apply in both directions.

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Peak power dissipation with a 10/1000 µs waveform

(1)(2)

(Fig. 1)

Peak pulse current with a 10/1000 µs waveform

(1)

(Fig. 3)

Power dissipation on infinite heatsink T

= 50 °C

Peak forward surge current 8.3 ms single half sine-wave

uni-directional only

(2)

Operating junction and storage temperature range

Notes:

(1) Non-repetitive current pulse, per Fig. 3 and derated above T

= 25 °C per Fig. 2

(2) Mounted on 0.31 x 0.31" (8.0 x 8.0 mm) copper pads to each terminal

SYMBOL

PPM

FSM

, T

STG

VALUE

1500

See next table

6.5

200

- 65 to + 150

UNIT

°C

Document Number: 88303

Revision: 21-Oct-08
