3-146896-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-146896-1

3-146896-1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,64 CONTACTS,SKT,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size215KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-146896-1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,64 CONTACTS,SKT,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK

3-146896-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Board mount options	PEG
body width	0.238 inch
subject depth	0.408 inch
body length	1.413 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	146896
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	110 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.6068 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.8 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	64
Base Number Matches	1

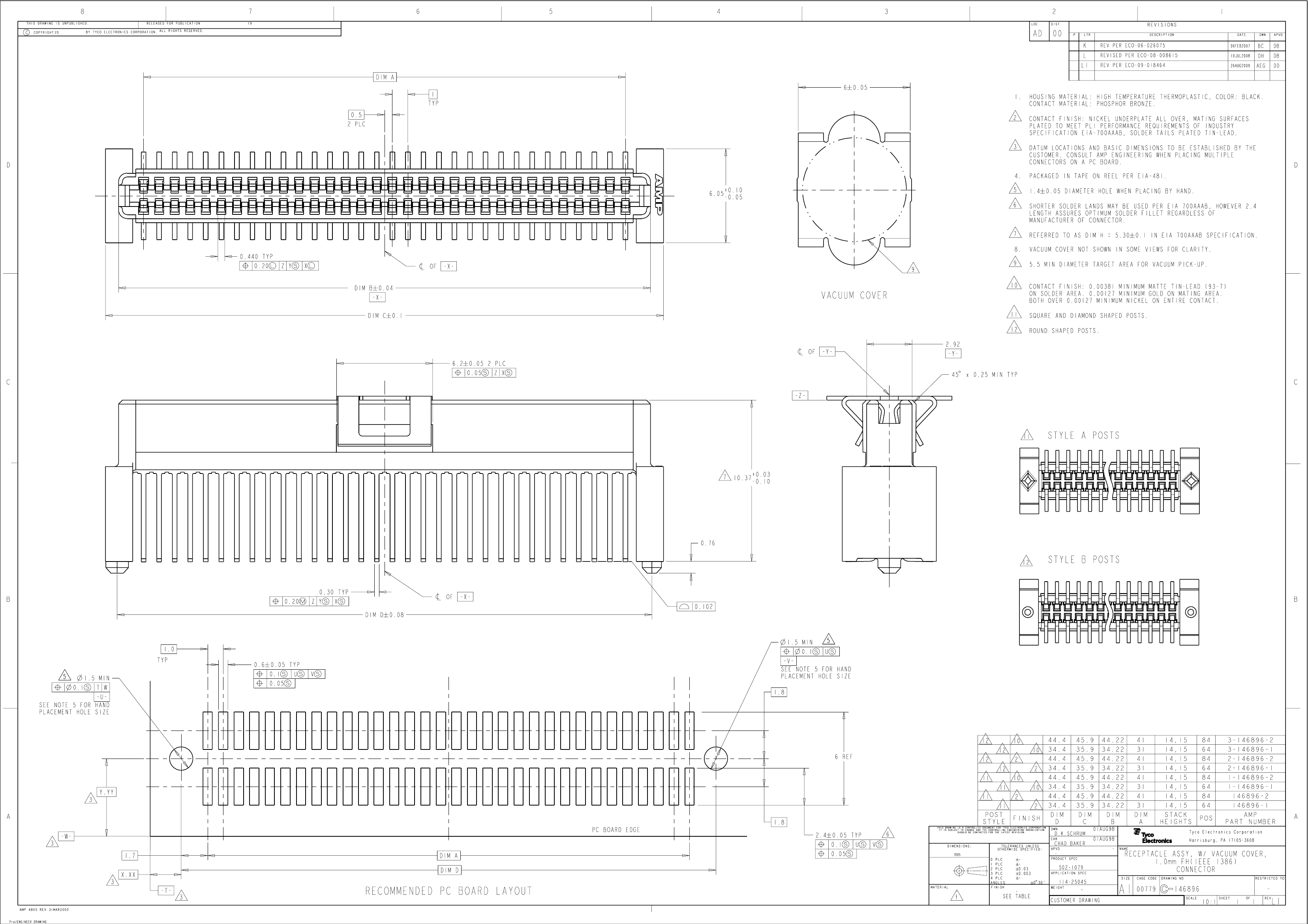

Preview

Download Datasheet

View All

3-146896-1 Related Products

	3-146896-1	3-146896-2	2-146896-2
Description	HEADER CONNECTOR,PCB MNT,RECEPT,64 CONTACTS,SKT,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,84 CONTACTS,SKT,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,84 CONTACTS,SKT,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK
Reach Compliance Code	unknown	unknown	unknown
Is Samacsys	N	N	N
Board mount options	PEG	PEG	PEG
body width	0.238 inch	0.238 inch	0.238 inch
subject depth	0.408 inch	0.408 inch	0.408 inch
body length	1.413 inch	1.807 inch	1.807 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V
Durability	100 Cycles	100 Cycles	100 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	146896	146896	146896
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	110 °C	110 °C	110 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.6068 mm	3.6068 mm	3.6068 mm
Plating thickness	50u inch	50u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.8 A	0.8 A	0.8 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.9906 mm	0.9906 mm	0.9906 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	64	84	84
Base Number Matches	1	1	1
Maker	-	TE Connectivity	TE Connectivity
