3-146483-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-146483-9

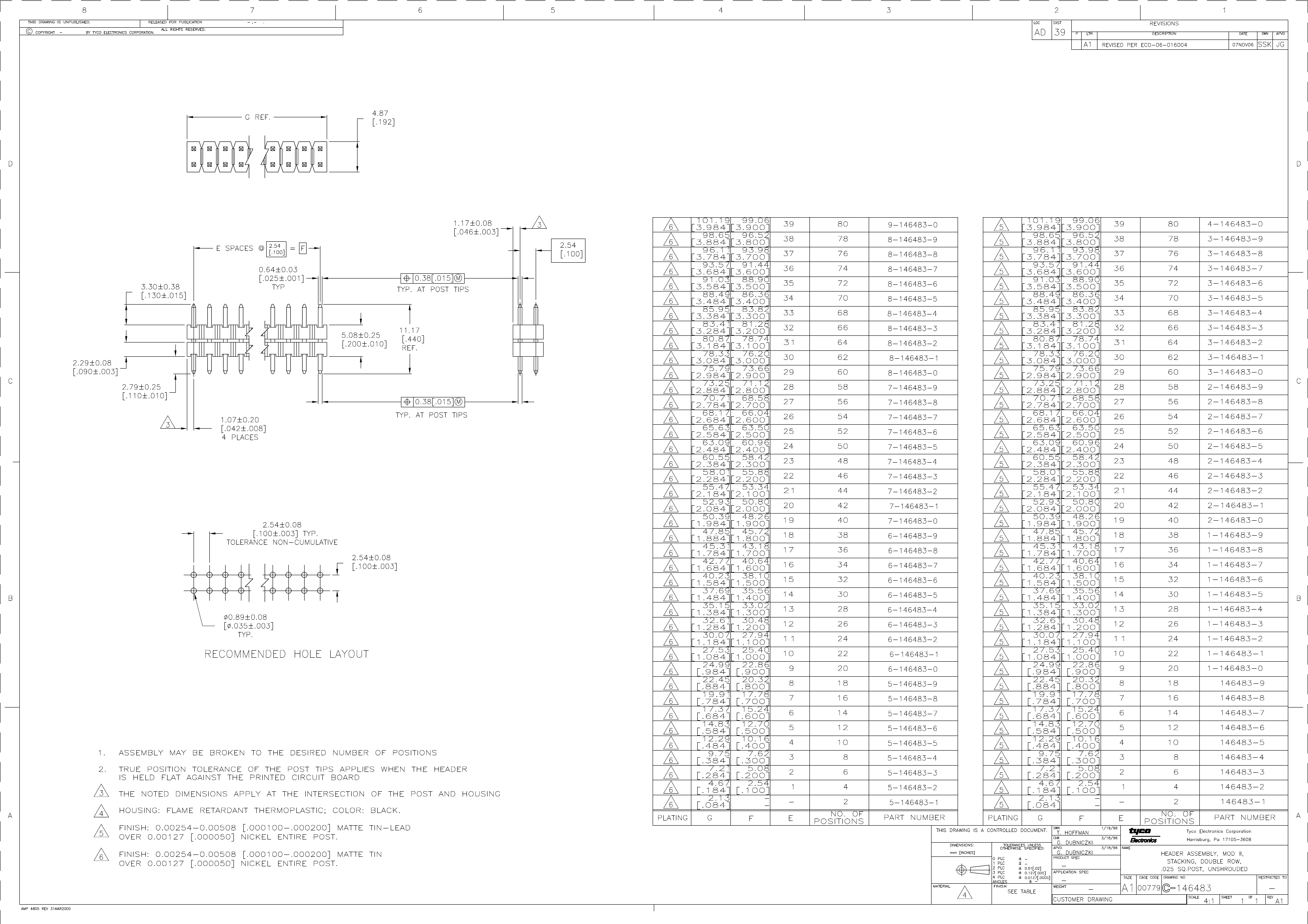

3-146483-9: Description78 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER; CategoryThe connector The connector; File Size269KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-146483-9 Overview

78 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER

3-146483-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	STACKING & W/O MOUNTING EARS
body width	0.192 inch
body length	3.884 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	MATTE TIN LEAD (200) OVER NICKEL
Contact completed and terminated	Matte Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	146483
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	100u inch
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	78
Base Number Matches	1
