Document 169-1
Chip Inductor – 1008HT Series (2520)
• Low-profile inductors are 60% the height of our other 1008
size parts.
• They feature high SRFs and very high Q factors.
Inductance
2
(nH)
3.3 @ 250 MHz
6.8 @ 250 MHz
7.2 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
27 @ 250 MHz
33 @ 200 MHz
39 @ 200 MHz
47 @ 200 MHz
56 @ 150 MHz
68 @ 150 MHz
82 @ 150 MHz
100 @ 100 MHz
120 @ 100 MHz
140 @ 100 MHz
150 @ 100 MHz
180 @ 50 MHz
220 @ 50 MHz
240 @ 50 MHz
270 @ 50 MHz
330 @ 25 MHz
390 @ 25 MHz
470 @ 25 MHz
560 @ 25 MHz
Coilcraft
Designer’s Kit C322
contains samples of all
5% inductance tolerance parts. To order, please contact
Coilcraft or order on-line at
http://order.coilcraft.com.
SRF min
5
(MHz)
7900
5500
4800
3800
2800
3000
2600
2400
2000
1900
1500
1500
1500
1300
1200
1090
1100
960
920
750
800
770
635
555
530
485
Part number
1
1008HT-3N3T_L_
1008HT-6N8T_L_
1008HT-7N2T_L_
1008HT-12NT_L_
1008HT-15NT_L_
1008HT-18NT_L_
1008HT-22NT_L_
1008HT-27NT_L_
1008HT-33NT_L_
1008HT-39NT_L_
1008HT-47NT_L_
1008HT-56NT_L_
1008HT-68NT_L_
1008HT-82NT_L_
1008HT-R10T_L_
1008HT-R12T_L_
1008HT-R14T_L_
1008HT-R15T_L_
1008HT-R18T_L_
1008HT-R22T_L_
1008HT-R24T_L_
1008HT-R27T_L_
1008HT-R33T_L_
1008HT-R39T_L_
1008HT-R47T_L_
1008HT-R56T_L_
Percent
tolerance
3
5
5
5
5
5
5
5
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2
5,2
5,2
5,2
5,2
5,2
Q
min
4
DCR max
6
(Ohms)
0.025
0.05
0.05
0.065
0.08
0.09
0.11
0.13
0.135
0.17
0.18
0.18
0.23
0.35
0.64
0.55
0.70
0.75
1.02
1.15
1.15
1.25
1.35
1.45
1.65
1.90
Irms
7
(mA)
1000
1000
1000
1000
1000
1000
950
850
760
700
660
620
550
500
420
350
320
300
250
250
250
250
250
250
240
240
65 @ 1500 MHz
70 @ 1500 MHz
70 @ 1500 MHz
55 @ 700 MHz
55 @ 700 MHz
55 @ 500 MHz
55 @ 500 MHz
55 @ 500 MHz
55 @ 350 MHz
55 @ 350 MHz
55 @ 350 MHz
50 @ 300 MHz
50 @ 300 MHz
40 @ 250 MHz
40 @ 250 MHz
40 @ 200 MHz
40 @ 200 MHz
40 @ 200 MHz
40 @ 200 MHz
34 @ 100 MHz
32 @ 100 MHz
32 @ 100 MHz
32 @ 100 MHz
32 @ 100 MHz
32 @ 100 MHz
32 @ 100 MHz
1. When ordering, specify
tolerance, termination
and
packaging
codes:
1008HT-R56TJLC
= 1%
G
= 2%
J
= 5%
(Table shows stock tolerances in bold.)
= RoHS compliant silver-palladium-platinum-glass frit.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (7500 parts per full reel).
Tolerance:
F
Termination: L
Packaging:
C
B
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/
HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test
fixture.
5. SRF measured using an Agilent/HP 8720D network analyzer and a
Coilcraft SMD-D test fixture.
6. DCR measured on a Cambridge Technology micro-ohmmeter and a
Coilcraft CCF840 test fixture.
7. Current that causes a 15°C temperature rise from 25°C ambient.
8. Electrical specifications at 25°C.
See Color Coding section for part marking data.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
D
Specifications subject to change without notice.
Please check our website for latest information.
Document 169-1
Revised 10/06/08
© Coilcraft, Inc. 2009

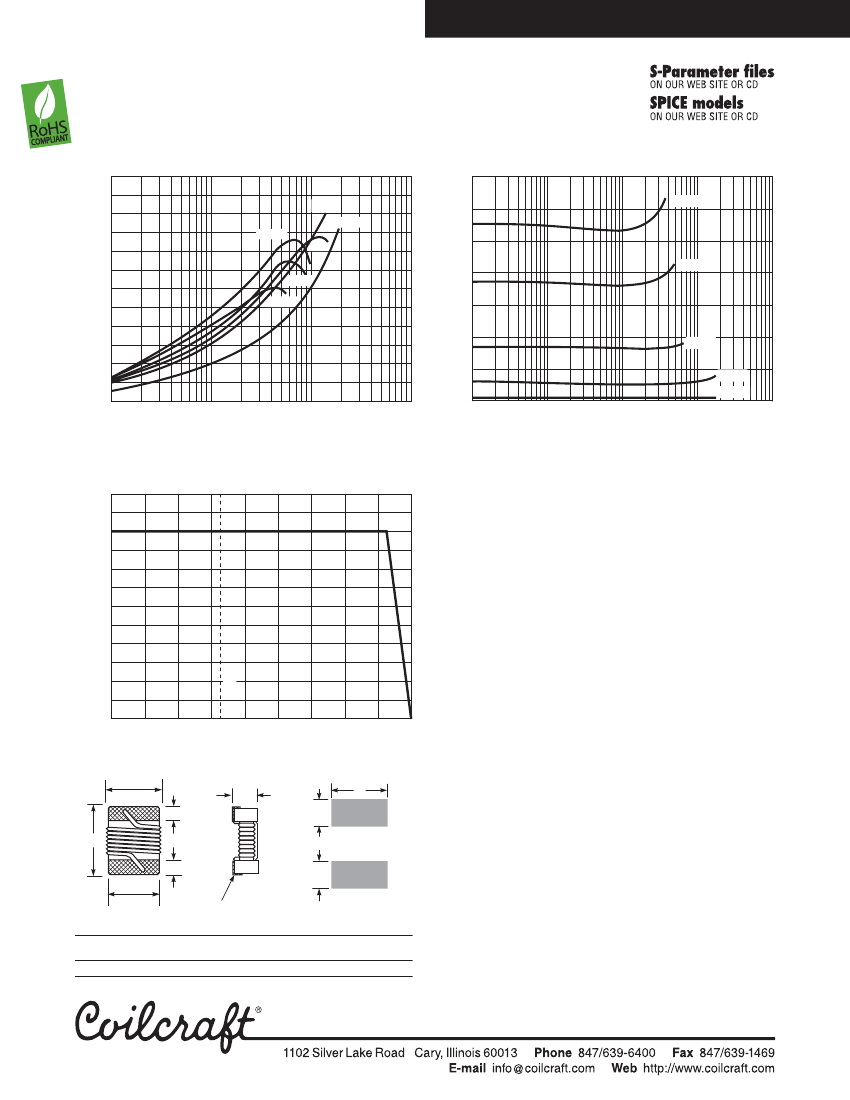

Document 169-2
Chip Inductor – 1008HT Series (2520)
Typical Q vs Frequency
120
110
100
90
80
100 nH
12 nH
3.3 nH
Typical L vs Frequency
350
300
250
270 nH
Inductance (nH)
22 nH
Q factor
70
60
50
40
30
20
10
0
10
100
1000
10000
47 nH
220 nH
200
150
100
50
0
1
10
100
180 nH
82 nH
27 nH
6.8 nH
1000
10000
Frequency (MHz)
Frequency (MHz)
Core material
Ceramic
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
16.0 – 17.6 mg
Ambient temperature
–40°C to +125°C with
Irms
current, +125°C
to +140°C with derated current
Storage temperature
Component: –40°C to +140°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +125 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Irms Derating
120
110
100
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120 140
25°C
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000/7″reel; 7500/13″ reel Plastic tape: 8 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.14 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Ambient temperature (°C)
B
overall
F
A
G
F
E
terminal
C
I
J
I
Terminal wraparound:
approx 0.010/0,25 both ends
H
Recommended
Land Pattern
I
1,02
J
inches
mm
1,27
A
max
2,67
B
max
2,41
C
max
1,14
E
2,03
F
0,51
G
1,52
H
2,54
0.105 0.095 0.045 0.080 0.020 0.060 0.100 0.040 0.050
Specifications subject to change without notice.
Please check our website for latest information.
Document 169-2
Revised 10/06/08
© Coilcraft, Inc. 2009
