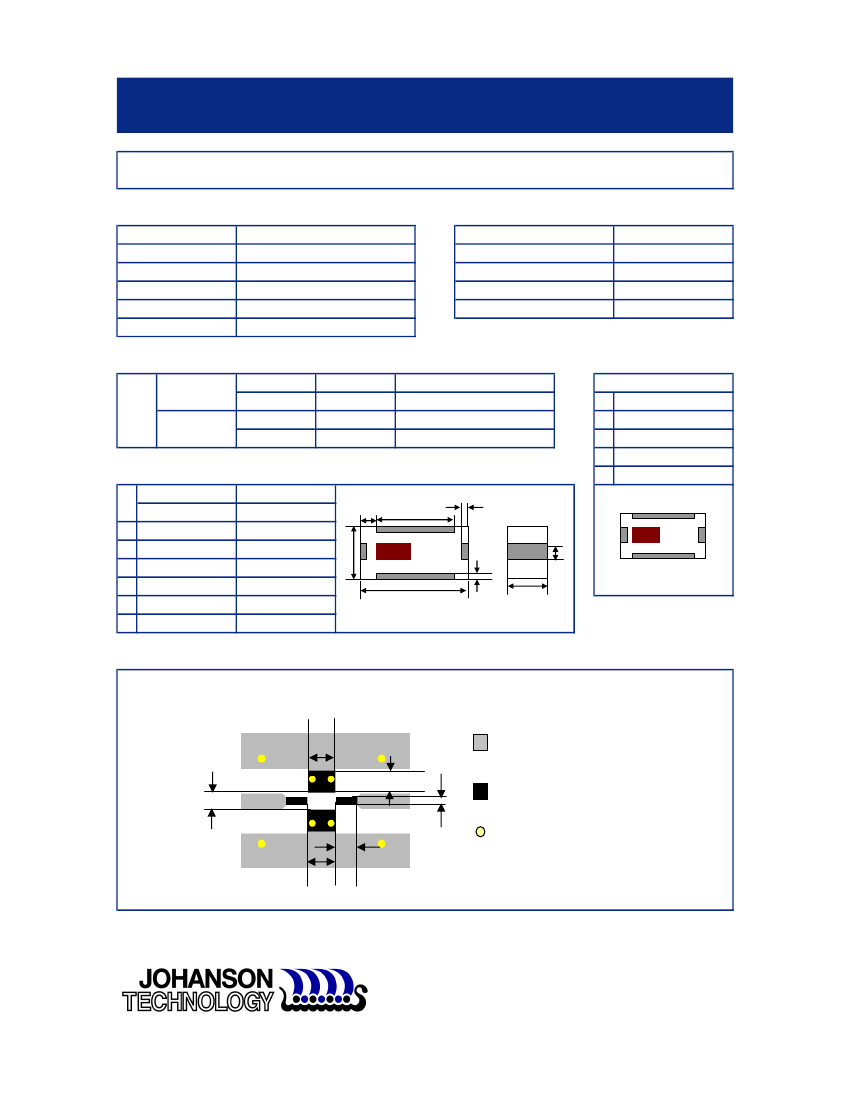

"High Frequency Ceramic Solutions"
2.45 GHz Band Pass Filter
Detail Specification: 07/02/09
P/N 2500BP15M400
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
Attenuation (min.)
2500BP15M400
2300 - 2700
2.0 dB max.
9.5 dB min.
15 dB @ 100 -1800 MHz
20 dB @ 3400 - 11700 MHz
Impedance
Input Power
Operating Temperature
Storage Temperature
Reel Quantity
50
Ω
500 mW max.
-40 to +85°C
-40 to +85°C
4,000
P/N
Suffix Termination
Style
Packaging
Style
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
Suffix = /Pb
Eg. 2500BP15M400S
Eg. 2500BP15M400E
Eg. 2500BP15M400(E or S)
Eg. 2500BP15M400(E or S)/Pb
Terminal Configuration
No.
1
2
3
Function
GND
OUT
GND
IN
1
Mechanical Dimensions
In
L
W
T
a
b
c
d
4
mm
2.00 ± 0.15
1.25 ± 0.10
0.95 ± 0.10
1.25 ± 0.15
0.30 ± 0.15
0.25 ± 0.15
0.35 ± 0.15
L
W
d
a
c
0.079 ± 0.006
0.049 ± 0.004
0.037 ± 0.004
0.049 ± 0.006
0.012 ± 0.006
0.010 ± 0.006
0.014 ± 0.006
4
b
2
c
T
3
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50 ohm impedance, depending on PCB material and thickness
1.30
1.00
0.80
0.35
Solder
Land
Through-hole (
φ0.35)
1.00
1.40
Units: mm
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2009 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2.45 GHz Band Pass Filter
Detail Specification: 07/02/09
P/N 2500BP15M400
Page 2 of 2

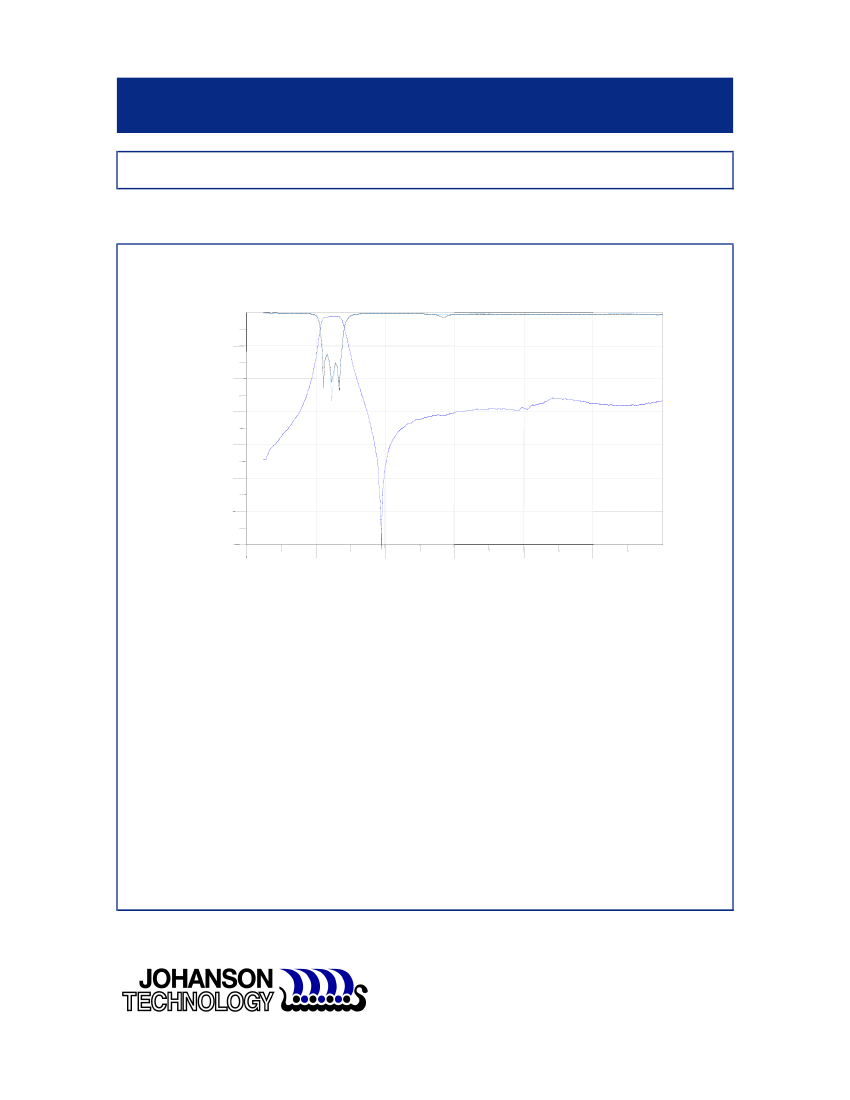

Typical Electrical Performance (T=25°C)
0
S(1,1)
S(2,2)
-10
-20
-30
dB
-40
-50
S(2,1)
-60
-70
0
2
4
6
freq, GHz
8
10
12
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2009 Johanson Technology, Inc. All Rights Reserved
