SENSITRON
SEMICONDUCTOR
Data Sheet 2772, Rev. -
Features
!
!
!
!
!
High Conductance
Fast Switching Speed
Surface Mount Package Ideally Suited for
Automatic Insertion
For General Purpose Switching Application
C
Plastic Material – UL Recognition Flammability
Classification 94V-O
E
1N4150W / 1N4151W
SURFACE MOUNT FAST SWITCHING DIODE
A
Dim
A
B
3.6
2.5
1.4
0.5
—
0.4
SOD-123
Min
Max
3.9
2.8
1.8
0.7
0.2
—
0.12
Min
Max
0.14 0.154
0.098 0.110
0.055 0.070
0.020 0.028
—
0.016
—
0.008
—
0.005
D
B
C
D
E
G
Mechanical Data
!
!
!
!
!
Case: SOD-123, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.01 grams (approx.)
Marking: 1N4150W A4
1N4151W
A5
@T
A
=25°C unless otherwise specified
H
G
H
J
0.95
—
1.35 0.037 0.053
In inch
J
In mm
Maximum Ratings
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Average Rectified Output Current (Note 1)
Non-Repetitive Peak Forward Surge Current
Power Dissipation (Note 1)
Typical Thermal Resistance, Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
@ t = 1.0µs
@ t = 1.0s
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
P
d
R
θJA
T
j
, T
STG
1N4150W
50
50
35
400
200
4.0
1.0
410
300
-65 to +150
1N4151W
75
Unit
V
V
V
300
150
2.0
0.5
500
mA
mA
A
mW
K/W
°C
Electrical Characteristics
Characteristic
Forward Voltage Drop (Note 4)
Peak Reverse Leakage Current
@T
A
=25°C unless otherwise specified
Symbol
V
FM
@ V
R
= 50V
I
RM
C
j
t
rr
1N4150W
1.0
100
2.5
4.0
1N4151W
Unit
V
50
2.0
2.0
nA
pF
nS
Typical Junction Capacitance (V
R
= 0V DC, f = 1.0MHz)
Reverse Recovery Time (Note 2, 3)
Note: 1. Valid provided that terminals are kept at ambient temperature.
2. 1N4150W: Measured with I
F
= I
R
= 200mA, I
RR
= 0.1 x I
R
, R
L
= 100Ω.
3. 1N4151W: Measured with I
F
= I
R
= 10mA, I
RR
= 1.0 x I
R
, R
L
= 100Ω.
4. 1N4150W: Measured with I
F
= 200mA. 1N4151W: Measured with I
F
= 10mA
•
221 West Industry Court
!
Deer Park, NY 11729-4681
!
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
Data Sheet 2772, Rev. -

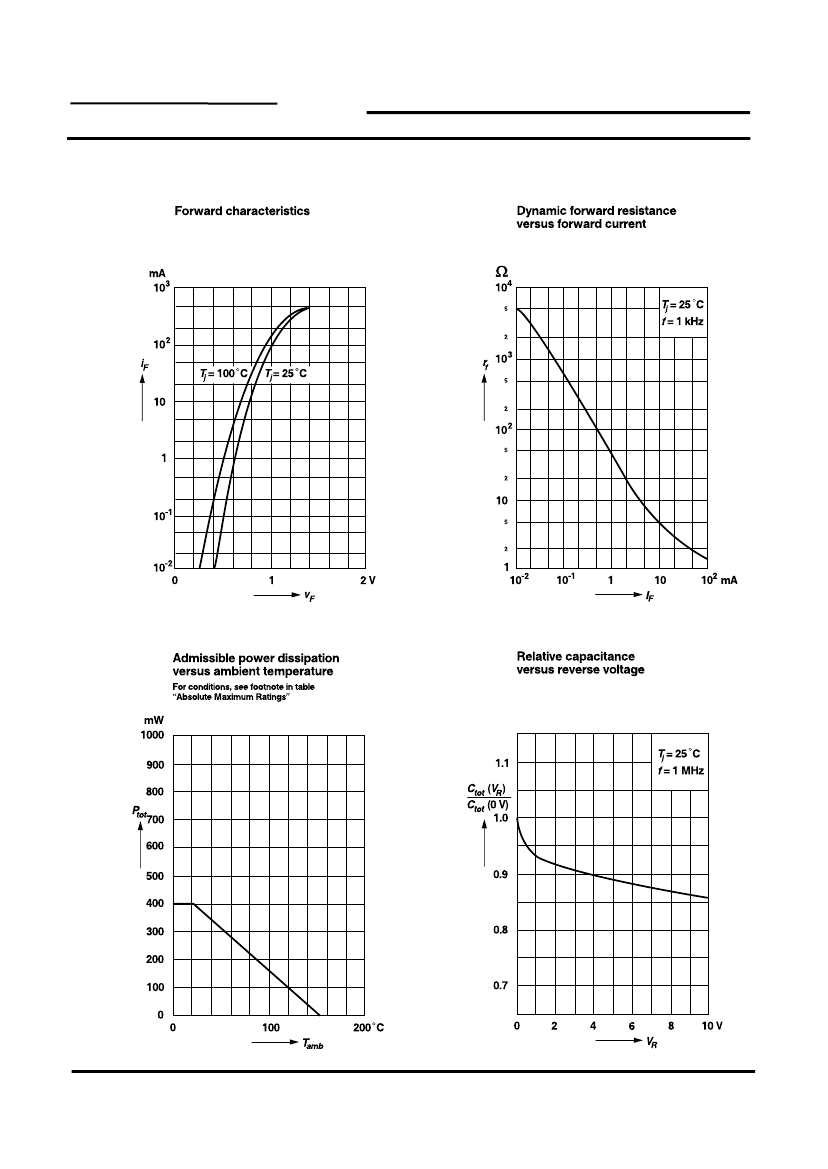

1N4150W / 1N4151W
SURFACE MOUNT FAST SWITCHING DIODE
•
221 West Industry Court
!
Deer Park, NY 11729-4681
!
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version
of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment, and safety equipment), safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement.
3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual
property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from
use at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
Sensitron Semiconductor.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations.
•
