190-22D2SO: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.008A (COIL), 48VDC (COIL), 360mW (COIL), 2A (CONTACT), 125VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size59KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

190-22D2SO Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.008A (COIL), 48VDC (COIL), 360mW (COIL), 2A (CONTACT), 125VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

190-22D2SO Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	10.1 mm
body height	11.5 mm
Body length or diameter	20.5 mm
Maximum coil current (DC)	0.008 A
Coil operating voltage (DC)	36 V
Coil power	360 mW
Coil release voltage (DC)	2.4 V
Coil resistance	6400 Ω
Maximum coil voltage (DC)	48 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	2A@125VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@125VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	125 V
Contact/Output Power Type	AC/DC
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	7.5 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	20.5mm x 10.1mm x 11.5mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	6.5 ms
seal	IMMERSION CLEANABLE CASE
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Catalog 1308242

Issued 3-03

P&B

190

series

2 Amp, DPDT, High Sensitivity, DIP

PC Board Relay

File E55708

File LR73303

Users should thoroughly review the technical data before selecting a product part

number. It is recommended that users also seek out the pertinent approvals files of

the agencies/laboratories and review them to ensure the product meets the

requirements for a given application.

Features

• Standard DIP configuration mates with 16-pin socket.

• Meets FCC Part 68 (10/160µs).

• For applications in telecommunications, office automation, security

devices, measurement and control equipment.

• Immersion cleanable, plastic sealed case.

• Standard, high and ultra-sensitive coils.

• Ultrasonic cleaning not recommended.

Coil Data @ 23

Nominal

Voltage

(VDC)

Current

10%

(mA)

Maximum

Voltage

(VDC)

Resistance

10%

(Ohms)

Approx.

Power

(mW)

Standard sensitivity (Max. Voltage stated @ 65°C, except 48V @ 60°C)

166.7

100.0

83.3

55.6

41.7

20.8

12.0

3.6

6.0

7.2

10.8

14.4

28.8

52.8

162

288

1,152

4,000

500

580

Contact Data @ 23

Arrangement:

Bifurcated 2 Form C (DPDT) contacts.

Material: Stationary:

Silver, gold clad.

Ratings: Max. Switched Current:

2A.

Max. Carry Current:

2A.

Max. Switched Voltage (at nom. voltage):

125VDC, 125VAC.

Max. Switched Power:

60W DC or 62.5VA AC.

Min. Switching Load:

10µA, 10mVDC.

Rated Load:

500mA at 125VAC.

Initial Contact Resistance:

50 milliohms.

Expected Mechanical Life:

15,000,000 ops at 36,000 ops/hr.

High sensitivity (Max. Voltage stated @ 70°C)

120.7

72.0

60.0

40.0

30.0

15.0

7.5

3.6

6.0

7.2

10.8

14.4

28.8

52.8

100

225

400

1,600

6,400

360

Ultra high sensitivity (Max. Voltage stated @ 70°C)

50.0

30.0

25.0

16.7

12.5

8.3

6.25

4.5

7.5

9.0

13.5

18.0

36.0

72.0

167

240

540

960

2,880

7,680

150

200

300Ap

Initial Dielectric Strength

Between Open Contacts:

750VAC 50/60 Hz. for 1 minute.

Between Coil and Contacts:

1,000VAC 50/60 Hz. for 1 minute.

Between Poles:

1,000VAC 50/60 Hz. for 1 minute.

Surge Voltage Resistance per FCC 68 (10 / 160

s):

Between Open Contacts:

1,500V.

Between Coil and Contacts:

1,500V.

Between Poles:

1,500V.

Operate Data @ 23

Operate Voltage:

75% of nominal voltage.

Release Voltage:

5% of nominal voltage.

Operate Time:

7 ms, max. (3.5 ms, mean).

Release Time:

3 ms, max. (0.8 ms, mean).

Bounce Time: Operate:

0.5 ms, approx.

Release:

3.5 ms, approx.

Operating Frequency: Mechanical:

36,000 ops/hr.

Electrical:

1,800 ops/hr at rated load.

Environmental Data

Initial Insulation Resistance

Between Contact and Coil:

ohms or more @ 500VDC.

Temperature Range:

-40°C to +70°C.

Relative Humidity Range:

35% to 85%.

Shock: Functional:

200m/s

(approx. 10g).

Destructive:

1,000m/s

(approx. 100g).

Vibration:

10-55 Hz., .059 in (1.5 mm) double amplitude.

Coil Data @ 23

Voltage:

3 to 48VDC.

Nominal Power:

150mW to 580mW. See Coil Data table for details.

Duty Cycle:

Continuous.

Mechanical Data

Termination:

DIP compatible, printed circuit terminals.

Enclosure Type:

Immersion cleanable plastic case.

Weight:

0.21 oz. (6g) approximately.

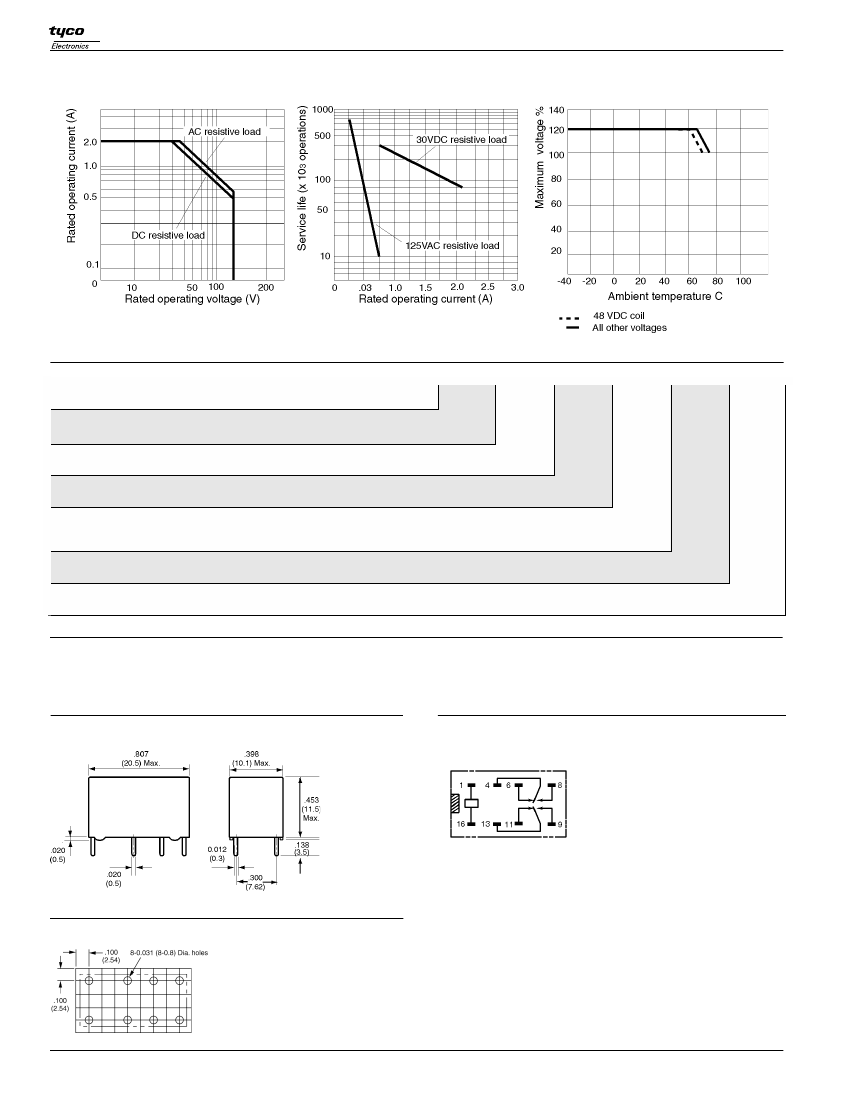

Dimensions are shown for

reference purposes only.

Dimensions are in inches over

(millimeters) unless otherwise

specified.

Specifications and availability

subject to change.

www.tycoelectronics.com

Technical support:

331

Refer to inside back cover.
