Molded Chip Wirewound Inductors
FEATURES
•
•
•
•
•
EIA SIZES A (1210), B (1812) AND C (1008)
EXCELLENT HIGH Q AND HIGH SRF CHARACTERISTICS
includes all homogeneous materials
BOTH FLOW AND REFLOW SOLDERING APPLICABLE
*See Part Number System for Details
HIGH INDUCTANCE AVAILABLE IN SMALL SIZE
EMBOSSED PLASTIC TAPE PACKAGE FOR AUTOMATIC PICK-PLACE
NIN Series
RoHS
Compliant
AVAILABLE TYPE AND RANGE
½½½ ½½½½
½½½½
½½½½ ½½½½
½
½½½½ ½½ ½ ½ ½ ½ ½½½
½½½ ½ ½
½½ ½ ½½½
½½½ ½½½½
½½½½½½
½½½½½½
½
½½½½½
½½½½½½
½½½½
½½½½
½
½
½½½ ½ ½½½ ½ ½½½
½½½ ½ ½½½ ½ ½½½
½½½½½½
½½½½½½
½½½½½½
½½½½½½½½½½ ½½½½½
½½½½ ½ ½½½
µ½
½½½½ ½ ½½½½
µ½
½½½ ½ ½½
µ½
½½½½ ½ ½½½
µ½
½½½½ ½ ½½½
µ½
½½½ ½ ½½½
µ½
½½½½ ½ ½½½½
µ½
½½½½½
½½½½½½½½
½½½½ ½½½½½½½½½
½½½½ ½½½½½½½
½½½½½½½½
½½½½ ½½½½½½½½½
½½½½ ½½½½½½½
½½½½½½½½
SPECIFICATIONS
Specifications
Inductance Range
Inductance Tolerance
Operating Temperature Range
Insulation Resistance
Withstanding Voltage
Q-Factor, Self Resonant Frequency
DC Resistance, Rated DC Current
and Inductance Tolerance
Case Size
1008
1210
1812
10nH ~ 100
µH
47nH ~ 330
µH
0.10
µ
H ~ 1000
µH
±20% (M), ±10% (K), ±5% (J)
±10% (K), ±5% (J)
-25°C ~ +85°C (at 100% of rated voltage)
1,000 MegOhm Min. (@ 100Vdc, Termination to Case)
250 Vdc for 1 minute (Termination to Case)
See Individual Product Listings
ENVIRONMENTAL CHARACTERISTICS
Test
Solderability
Humidity
Specification
90% Min. Coverage
Test Method & Condition
After 3 Sec. Dip in +230
o
C Solder Pot (Post Flux)
After 500 Hrs at 60
o
C and 90 ~ 95% RH
After 5 Seconds at -260
o
C (5 Min. 120
o
C Pre-Heat)
After 2 Hrs per Axis, 10 ~ 55Hz, 1.5 mm Ampl
After 100 cycles (-40
o
to +85
o
C) 30 Min. Each
After 500 Hrs at -40
o
C
After 500 Hrs at +85
o
C with rated DC Current
(1) No Evidence of Damage
(2) Inductance Shall Be
Soldering Effect
Within +5% of initial
Value
Low Frequency Vibration
(3) Q Factor Shall Be
Thermal Shock
Within +10 of initial
Low Temperature Storage
Value
(1) No Evidence of Damage
High Temperature Load (2) Inductance Shall Be
Within ±10% of Initial
Life
Value
(3) Q Factor Shall Be
Humidity Load Life
Within ±10% of Initial
Value
After 500 Hrs at 60
o
C with 90 ~ 95% RH
with Rated DC Current
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
27
Molded Chip Wirewound Inductors
DIMENSIONS (mm)
SIZE A and C
SIZE B
NIN Series
MARKING
MARKING
L
W
A
W
L
B
H
B
½½½ ½½½½
½½½½
½½½½
½½½½
½½½½ ½½½½
½
½
½
½½½½ ½
½½½½
½½½
½½½½
½½½ ½ ½½½
½½½ ½ ½½½
½½½½ ½
½½½ ½ ½½½
½½½ ½ ½½½
½½½ ½ ½½½
½½½½ ½
½½½ ½ ½½½
½½½ ½ ½½½
½½½ ½ ½½½
½½½½ ½
½½½ ½ ½½½
½½½ ½ ½½½
½½½ ½ ½½½
½½½½ ½
½½½ ½ ½½½
½½½ ½ ½½½
½½½ ½ ½½½
PART MARKING
Inductance
Tolerance
±20%
±10%
±5%
Marking for
Tolerance
M
No Identification
J
Example
2R2M
470
270J
(1) 3 digits system in
µH
(2) R indicates decimal point in
µH
Ex:2R7 = 2.7µH
Ex:R18 = .18µH = 180nH
(3) N indicates nanohenries (0.001
µH),
Ex: 10N = 0.01
µH
= 10nH
Applicable Guidelines:
1. Recommended soldering conditions :
Flow (wave): 250
o
C for 5 sec. max. (preheating of 120
o
C for 5 minutes.)
Reflow: 250
o
C for 10 sec. max., total time above 230°C is 40 sec. max. (preheating 150°C ~ 180°C/120 sec. max.)
2. Avoid placing inductor over any metal pattern on the PCB, which may create mutual inductance problems.
3. For mounting, it is suggested to secure chip inductor by means of epoxy adhesive curable by ultraviolet.
4. Ultrasonic cleaning is not recommended. If it is necessary, the cleaning conditions must be examined so as not to create mechanical
damage by unexpected resonant vibration. Please contact our engineering department.
5. An excessive mechanical force may effect the electrical and magnetic properties of chip inductors. Make sure not to use any stress
greater than 2Kg when component is placed.
PART NUMBER SYSTEM
NIN-FA R47 M TR F
Lead Free/RoHS compliant
(99.3% Sn, 0.7% Cu)
Packaging: TR = Tape & Reel
Inductance Tolerance Code:
M = ±20%, K = ±10%, J = ±5%
Rated inductance in µH (3 digits, first 2 numbers
are significant, R stands for decimal point)
Series-Type
®
28
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
H
www.SMTmagnetics.com
A
Molded Chip Wirewound Inductors
NIN Series

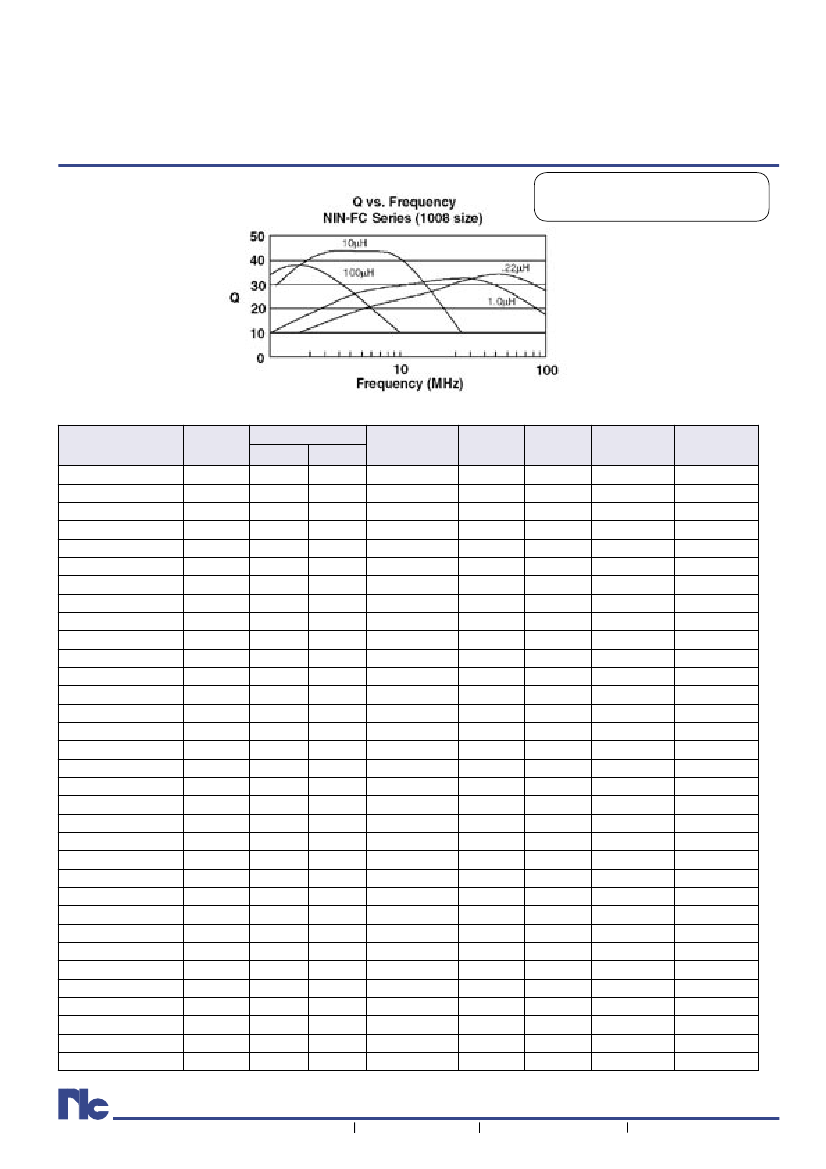

For Quality Factor (Q) and Inductance (L)
over Frequency curves
see
www.RFpassives.com
NIN-FC SERIES
NIC
P/N
NIN-FCR22xTR
NIN-FCR27xTR
NIN-FCR33xTR
NIN-FCR39xTR
NIN-FCR47xTR
NIN-FCR56xTR
NIN-FCR68xTR
NIN-FCR82xTR
NIN-FC1R0 xTR
NIN-FC1R2 xTR
NIN-FC1R5 xTR
NIN-FC1R8 xTR
NIN-FC2R2xTR
NIN-FC2R7 xTR
NIN-FC3R3 xTR
NIN-FC3R9 xTR
NIN-FC4R7 xTR
NIN-FC5R6 xTR
NIN-FC6R8 xTR
NIN-FC8R2 xTR
NIN-FC100 xTR
NIN-FC120 xTR
NIN-FC150 xTR
NIN-FC180 xTR
NIN-FC220 xTR
NIN-FC270 xTR
NIN-FC330 xTR
NIN-FC390 xTR
NIN-FC470 xTR
NIN-FC560 xTR
NIN-FC680 xTR
NIN-FC820 xTR
NIN-FC101 xTR
®
C SIZE (1008)
'L'
Inductance
(µH)
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
Tolerance
(std)
±20% (M)
±20% (M)
±20% (M)
±20% (M)
±20% (M)
±20% (M)
±20% (M)
±20% (M)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
(opt)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
STANDARD TYPE
'Q'
Factor
(min.)
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
20
20
20
20
20
20
20
15
L&Q
Test
Freq.
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
0.796 Mhz
SRF
Mhz
(min.)
230
210
190
175
160
150
135
125
115
100
90
85
80
75
65
60
55
50
45
40
32
30
28
25
22
21
20
18
17
16
15
13
12
DC
Resistance
(ohms) Max.
0.70
0.75
0.85
0.95
1.00
1.10
1.25
1.4
0.65
0.75
0.85
0.95
1.05
1.20
1.30
1.40
1.55
1.75
1.95
2.20
3.50
3.80
4.40
5.00
5.80
6.30
7.10
9.50
11.0
12.1
16.6
19.0
21.0
Rated
DC Current
(mA) Max.
190
180
170
160
155
150
140
130
195
180
170
160
155
145
135
130
125
120
115
105
80
75
70
65
60
115
110
90
80
75
70
65
60
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
29
Molded Chip Wirewound Inductors
NIN Series
For Quality Factor (Q) and Inductance (L)
over Frequency curves
see
www.RFpassives.com
NIN-NC SERIES
NIC
P/N
NIN-NC10NKTR
NIN-NC12NKTR
NIN-NC15NKTR
NIN-NC18NKTR
NIN-NC22NKTR
NIN-NC27NKTR
NIN-NC33NxTR
NIN-NC39NxTR
NIN-NC47NxTR
NIN-NC56NxTR
NIN-NC68NxTR
NIN-NC82NxTR
NIN-NCR10xTR
NIN-NCR12xTR
NIN-NCR15xTR
NIN-NCR18xTR
NIN-NCR22xTR
NIN-NCR27xTR
NIN-NCR33xTR
NIN-NCR39xTR
NIN-NCR47xTR
NIN-NCR56xTR
NIN-NCR68xTR
NIN-NCR82xTR
C SIZE (1008)
'L'
Inductance
(nH)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
Tolerance
(std)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
±10% (K)
(opt)
---
---
---
---
---
---
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
HIGH FREQUENCY TYPE
'Q'
Factor
(min.)
10
10
10
10
15
15
15
15
15
15
15
15
10
10
10
10
10
10
10
10
10
10
10
10
L&Q
Test
Freq.
100 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
25.2 Mhz
SRF
Mhz
(min.)
2500
2200
1800
1550
1350
1150
1000
890
770
670
590
520
460
400
340
300
260
230
200
180
160
145
130
100
DC
Resistance
(ohms) Max.
0.32
0.34
0.38
0.40
0.43
0.47
0.51
0.55
0.59
0.63
0.68
0.73
0.80
0.87
0.98
1.05
1.15
1.25
1.37
1.47
1.58
1.70
1.85
2.10
Rated
DC Current
(mA) Max.
280
270
255
250
240
230
220
215
205
200
190
185
175
170
160
155
145
140
135
130
125
120
110
100
®
30
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Molded Chip Wirewound Inductors
NIN Series
For Quality Factor (Q) and Inductance (L)
over Frequency curves
see
www.RFpassives.com
NIN-PC SERIES
NIC
P/N
NIN-PC1R0MTR
NIN-PC1R5MTR
NIN-PC2R2MTR
NIN-PC3R3MTR
NIN-PC4R7MTR
NIN-PC6R8KTR
NIN-PC100KTR
NIN-PC120KTR
NIN-PC150KTR
NIN-PC220KTR
NIN-PC330KTR
C SIZE (1008)
'L'
Inductance
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
10
12
15
22
33
Tolerance
(std)
±20%
±20%
±20%
±20%
±20%
±10%
±10%
±10%
±10%
±10%
±10%
HIGH CURRENT TYPE
(opt)
---
---
---
---
---
---
---
---
---
---
---
'Q'
Factor
(min.)
10
10
10
8
8
8
20
20
20
20
20
L&Q
Test
Freq.
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
7.96 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
2.52 Mhz
SRF
Mhz
(min.)
95
85
65
55
43
39
32
25
21
18
16
DC
Resistance
(ohms) Max.
0.45
0.55
0.65
0.85
1.2
1.3
2.2
2.7
3.2
4.0
6.5
Rated
DC Current
(mA) Max.
475
435
390
340
285
275
210
195
175
160
120
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
31
京公网安备 11010802033920号
EEWORLD
