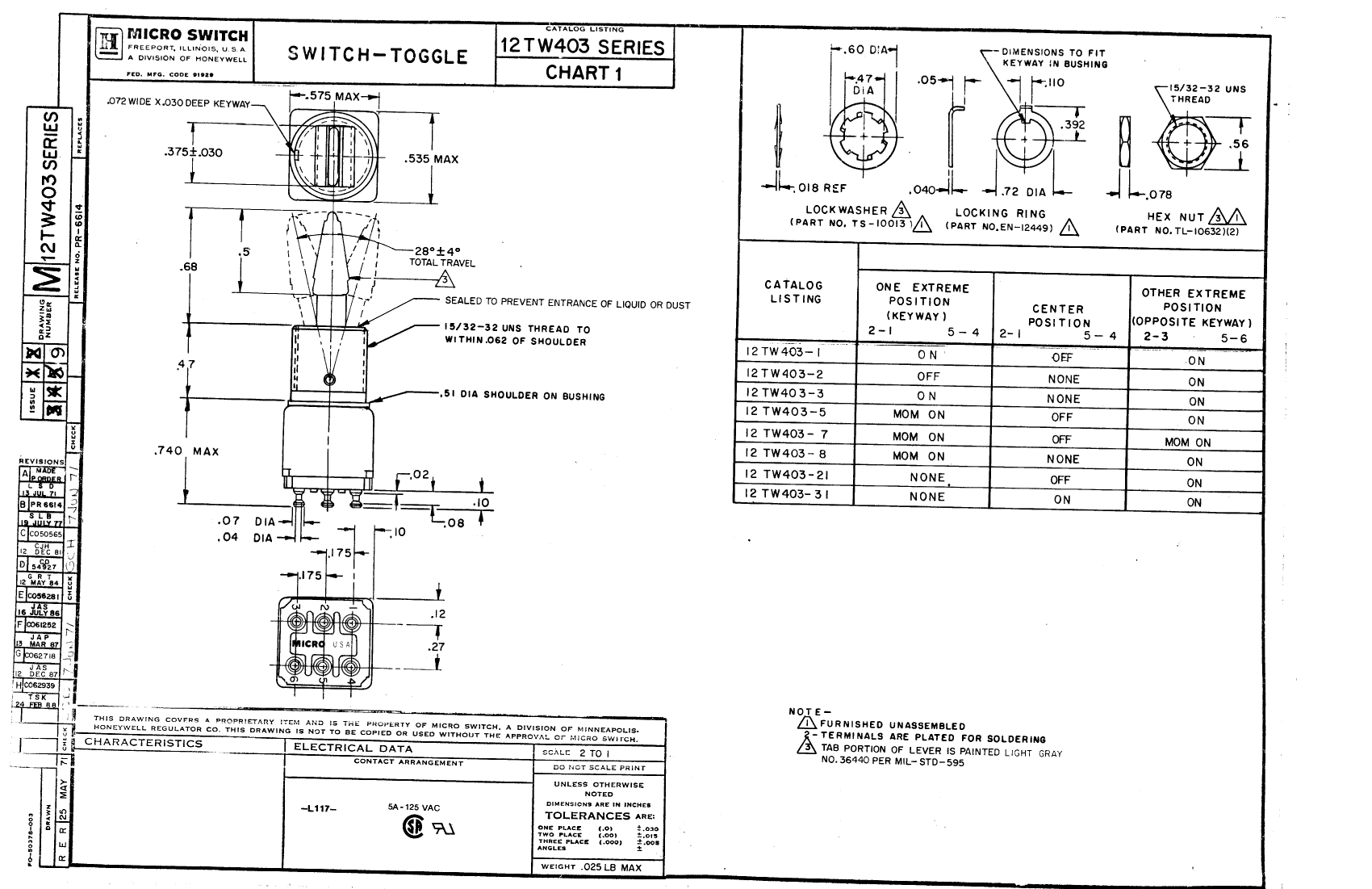

Preview

12TW403-3: DescriptionToggle Switch, DPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size81KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

12TW403-3 Overview

Toggle Switch, DPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded

12TW403-3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	LEVER
body width	13.59 mm
body height	18.8 mm
Body length or diameter	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	125 V
Manufacturer's serial number	12TW403
Installation features	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

12TW403-3 Related Products

	12TW403-3	12TW403-2	12TW403-21	12TW403-5	12TW403-1	12TW403-8	12TW403-31
Description	Toggle Switch, DPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPST, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPST, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Latched And Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Momentary, Wire Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Latched, Wire Terminal, Lever Actuator, Panel Mount-threaded
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER
body width	13.59 mm	13.59 mm	13.59 mm	13.59 mm	13.59 mm	13.59 mm	13.59 mm
body height	18.8 mm	18.8 mm	18.8 mm	18.8 mm	18.8 mm	18.8 mm	18.8 mm
Body length or diameter	14.61 mm	14.61 mm	14.61 mm	14.61 mm	14.61 mm	14.61 mm	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V	125 V
Manufacturer's serial number	12TW403	12TW403	12TW403	12TW403	12TW403	12TW403	12TW403
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED AND MOMENTARY	LATCHED	MOMENTARY	LATCHED
switch function	DPDT	DPST	DPST	DPDT	DPDT	DPDT	DPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Base Number Matches	1	1	1	1	1	1	1
