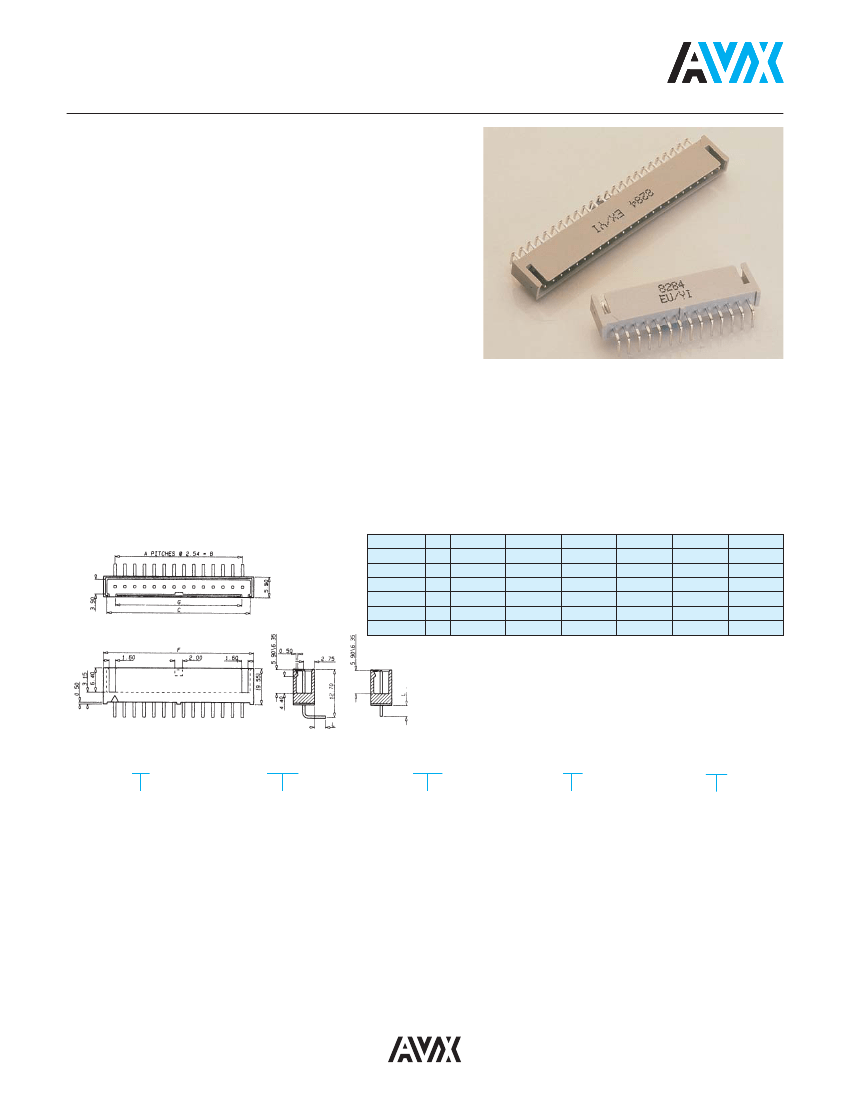

Single Row IDC Header
Series 8284
IDC header/socket for 0.100" (2.54mm) pitch IDC for
0.100" (2.54mm) round conductor flat cable uses similar
8289/8290 contact components recognized under UL &
CSA specifications, but housed in a single row insulator
format. The header is a 1-piece insulator with right angle,
straight solder or press-fit terminations. The socket
is a 2-piece insulator design with IDC contacts suitable for
termination to 26/28 AWG stranded ribbon cable or dip
solder terminations.
TECHNICAL SPECIFICATION
Material:
Molding - UL94VO rated grey polyester
Contact - Brass
Current Rating:
1.5 Amp maximum at 25ºC
1 Amp maximum at 70ºC
Insulation Resistance:
1000 megohms
Dielectric Withstanding Voltage:
1050V DC or AC peak
Voltage Rating:
350V DC or AC peak
Contact Resistance:
20 milliohms maximum
Operating Temperature:
-55ºC to +125ºC
Mechanical Endurance:
Standard tin plating - 10 cycles
Insertion/Withdrawal Forces:
2.7N max insertion force per contact
0.2N min withdrawal force per contact
HEADER
DIMENSIONS:
No. of Positions A
8
14
16
18
20
24
7
13
15
17
19
23
millimeters (inches)
B
C
21.30 (0.84)
36.54 (1.44)
42.22 (1.66)
46.70 (1.84)
52.38 (2.06)
61.94 (2.44)
D
18.54 (0.73)
33.78 (1.33)
38.86 (1.53)
43.94 (1.73)
49.02 (1.93)
59.18 (2.33)
E
19.30 (0.76)
34.54 (1.36)
39.62 (1.56)
44.70 (1.76)
49.78 (1.96)
59.94 (2.36)
F
23.70 (0.93)
38.94 (1.53)
44.02 (1.73)
49.10 (1.93)
54.18 (2.13)
64.34 (2.53)
G
17.54 (0.69)
32.78 (1.29)
37.86 (1.49)
42.94 (1.69)
48.02 (1.89)
58.18 (2.29)
17.78 (0.70)
33.02 (1.30)
38.10 (1.50)
43.18 (1.70)
48.26 (1.90)
58.42 (2.30)
ORDERING CODE
10
Connector Code
Prefix
10 = Header Connector
8284
Series Number
014
Number of
Contacts
008 = 8 position
014 = 14 position
016 = 16 position
018 = 18 position
020 = 20 position
024 = 24 position
000
Contact Variation
000 = 0.110" (2.8mm)
Straight PC Tail
001 = 0.146" (3.7mm)
Straight PC Tail
002 = 0.110" (2.8mm)
R.A. PC Tail
003 = 0.146" (3.7mm)
R.A. PC Tail
009 = 0.209" (4.5mm)
Straight PF Tail
030
Plating Variation
030 = Tin plating,
10 cycles
040 = Gold plating,
50 cycles
Not all versions are available, please check
with AVX Customer Service for availability.
8

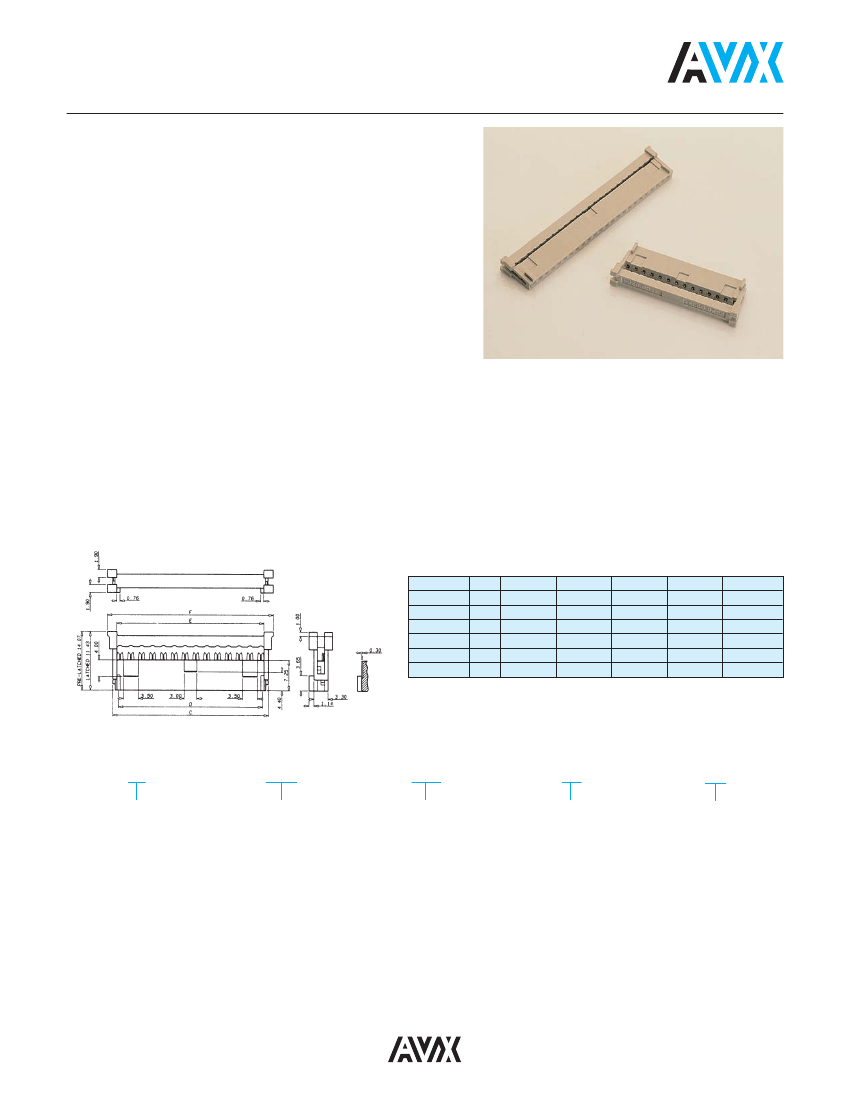

Single Row IDC Socket
Series 8284
IDC header/socket for 0.100" (2.54mm) pitch IDC for
0.100" (2.54mm) round conductor flat cable uses similar
8289/8290 contact components recognized under UL &
CSA specifications, but housed in a single row insulator
format. The header is a 1-piece insulator with right angle,
straight solder or press-fit terminations. The socket is
a 2-piece insulator design with IDC contacts suitable for
termination to 26/28 AWG stranded ribbon cable or dip
solder terminations.
TECHNICAL SPECIFICATION
Material:
Molding - UL94VO rated grey polyester
Contact - Phosphor bronze
Current Rating:
1.5 Amp maximum at 25ºC
1 Amp maximum at 70ºC
Insulation Resistance:
1000 megohms
Dielectric Withstanding Voltage:
1050V DC or AC peak
Voltage Rating:
350V DC or AC peak
Contact Resistance:
20 milliohms maximum
Operating Temperature:
-55ºC to +125ºC
Mechanical Endurance:
Standard tin plating - 10 cycles
Insertion/Withdrawal Forces:
2.7N max insertion force per contact
0.2N min withdrawal force per contact
SOCKET
DIMENSIONS:
No. of Positions
8
14
16
18
20
24
A
7
13
15
17
19
23
millimeters (inches)
B
17.78 (0.70)
33.02 (1.18)
38.10 (1.50)
43.18 (1.70)
48.26 (1.90)
58.42 (2.30)
C
21.30 (0.84)
36.54 (1.45)
42.22 (1.66)
46.70 (1.84)
52.38 (2.06)
61.94 (2.44)
D
18.54 (0.72)
33.78 (1.33)
38.86 (1.53)
43.94 (1.73)
49.02 (1.93)
59.18 (2.33)
E
19.30 (0.76)
34.54 (1.36)
39.62 (1.56)
44.70 (1.76)
49.78 (1.96)
59.94 (2.36)
F
23.70 (0.93)
38.94 (1.53)
44.02 (1.73)
49.10 (1.93)
54.18 (2.13)
64.34 (2.53)
ORDERING CODE
20
Connector Code
Prefix
20 = Socket Connector
8284
Series Number
014
Number of
Contacts
008 = 8 position
014 = 14 position
016 = 16 position
018 = 18 position
020 = 20 position
024 = 24 position
000
Contact Variation
000 = Standard IDC
contact 26/28
AWG
030
Plating Variation
030 = Tin plating,
10 cycles
040 = Gold plating,
50 cycles
Not all versions are available, please check
with AVX Customer Service for availability.
