2N5460 / 2N5461 / 2N5462 / MMBF5460 / MMBF5461
Discrete POWER & Signal
Technologies
2N5460
2N5461
2N5462
MMBF5460
MMBF5461

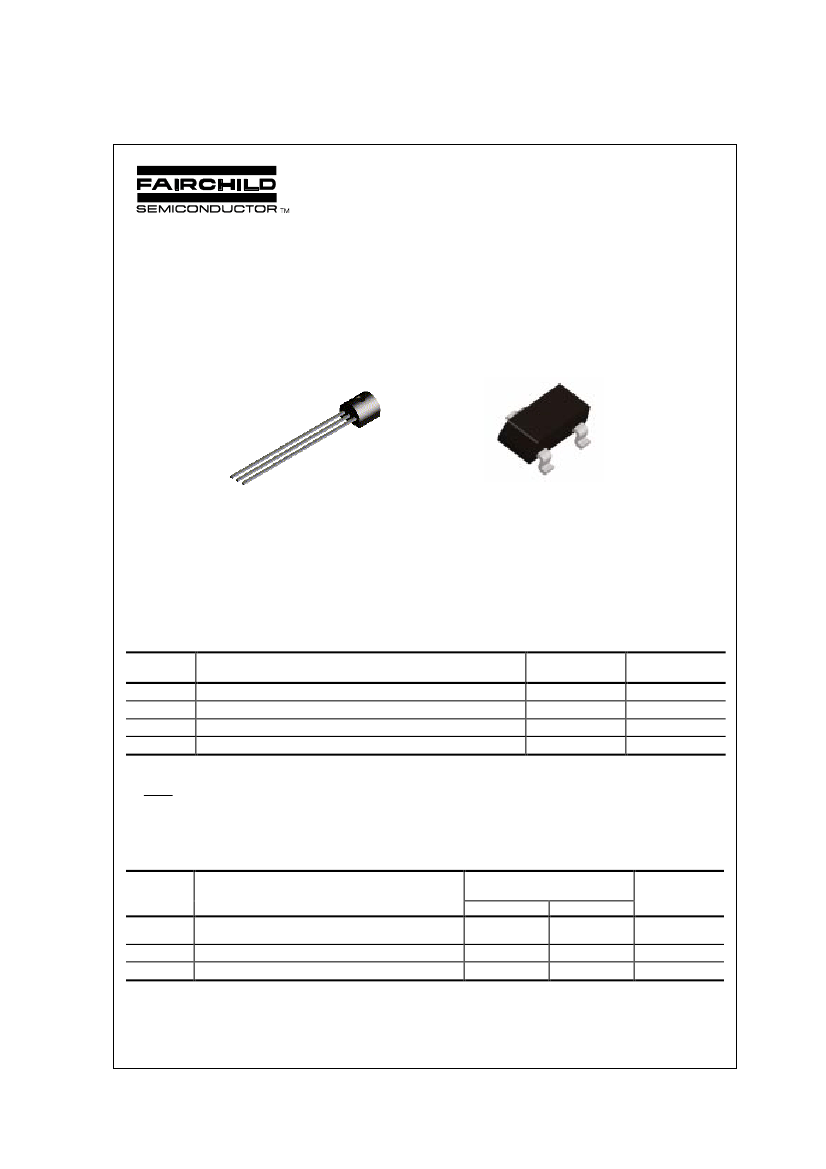

G
D
G
S
TO-92
D
SOT-23
Mark: 6E / 61U
S
P-Channel General Purpose Amplifier
This device is designed primarily for low level audio and general
purpose applications with high impedance signal sources. Sourced
from Process 89.
Absolute Maximum Ratings*
-
TA = 25°C unless otherwise noted
Symbol
V
DG
V
GS
I
GF
T
J
,T
stg
Drain-Gate Voltage
Gate-Source Voltage
Forward Gate Current
Parameter
Value
- 40
40
10
-55 to +150
Units
V
V
mA
°C
Operating and Storage Junction Temperature Range
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
Symbol
P
D
R
θJC
R
θJA
TA = 25°C unless otherwise noted
Characteristic
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Ambient
2N5460
625
5.0
83.3
200
Max
*MMBF5460
350
2.8
357
Units
mW
mW/°C
°C/W
°C/W
*
Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."
ã
1997 Fairchild Semiconductor Corporation
2N5460 / 2N5461 / 2N5462 / MMBF5460 / MMBF5461
P-Channel General Purpose Amplifier
(continued)
Electrical Characteristics
Symbol
Parameter
TA = 25°C unless otherwise noted
Test Conditions
Min
Typ
Max Units
OFF CHARACTERISTICS
V
(BR)GSS
I
GSS
V
GS(off)
Gate-Source Breakdown Voltage
Gate Reverse Current
Gate-Source Cutoff Voltage
I
G
= 10
µA,
V
DS
= 0
V
GS
= 20 V, V
DS
= 0
V
GS
= 20 V, V
DS
= 0, T
A
= 100°C
V
DS
= 15 V, I
D
= 1.0
µA
2N5460
2N5461
2N5462
V
DS
= 15 V, I
D
= 0.1 mA
2N5460
V
DS
= 15 V, I
D
= 0.2 mA
2N5461
V
DS
= 15 V, I
D
= 0.4 mA
2N5462
40
5.0
1.0
6.0
7.5
9.0
4.0
4.5
6.0
V
nA
µA
V
V
V
V
V
V
V
GS
Gate-Source Voltage
0.75
1.0
1.8
0.5
0.8
1.5
ON CHARACTERISTICS
I
DSS
Zero-Gate Voltage Drain Current*
V
DS
= 15 V, V
GS
= 0
2N5460
2N5461
2N5462
- 1.0
- 2.0
- 4.0
- 5.0
- 9.0
- 16
mA
mA
mA
SMALL SIGNAL CHARACTERISTICS
g
fs
Forward Transfer Conductance
V
DS
= 15, V
GS
= 0, f = 1.0 kHz
2N5460
2N5461
2N5462
V
DS
= 15, V
GS
= 0, f = 1.0 kHz
V
DS
= 15, V
GS
= 0, f = 1.0 MHz
V
DS
= 15, V
GS
= 0, f = 1.0 MHz
V
DS
= 15 V, V
GS
= 0,
R
G
= 1.0 megohm, f = 100 Hz,
BW = 1.0 Hz
V
DS
= 15 V, V
GS
= 0, f = 100 Hz,
BW = 1.0 Hz
1000
1500
2000
5.0
1.0
1.0
4000
5000
6000
75
7.0
2.0
2.5
µmhos
µmhos
µmhos
µmhos
pF
pF
dB
g
os
C
iss
C
rss
NF
Output Conductance
Input Capacitance
Reverse Transfer Capacitance
Noise Figure
e
n
Equivalent Short-Circuit Input
Noise Voltage
60
115
nV/
Ö
Hz
*
Pulse Test: Pulse Width
£
300 ms, Duty Cycle
£
2%
2N5460 / 2N5461 / 2N5462 / MMBF5460 / MMBF5461
P-Channel General Purpose Amplifier
(continued)
Typical Characteristics
(continued)

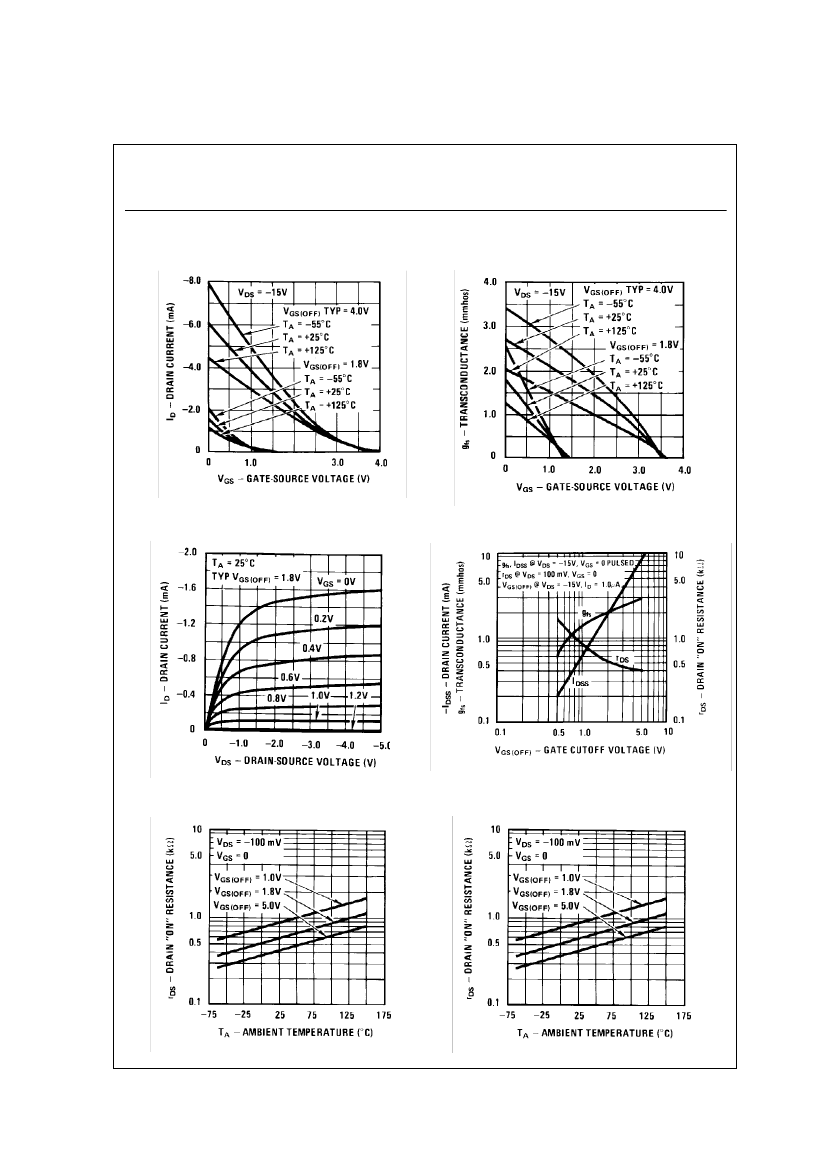

Transfer Characteristics
Transfer Charactersitics
Common Drain-Source
Parameter Interactions
Leakage Current vs. Voltage
Channel Resistance vs.
Temperature
2N5460 / 2N5461 / 2N5462 / MMBF5460 / MMBF5461
P-Channel General Purpose Amplifier
(continued)
Typical Characteristics
(continued)

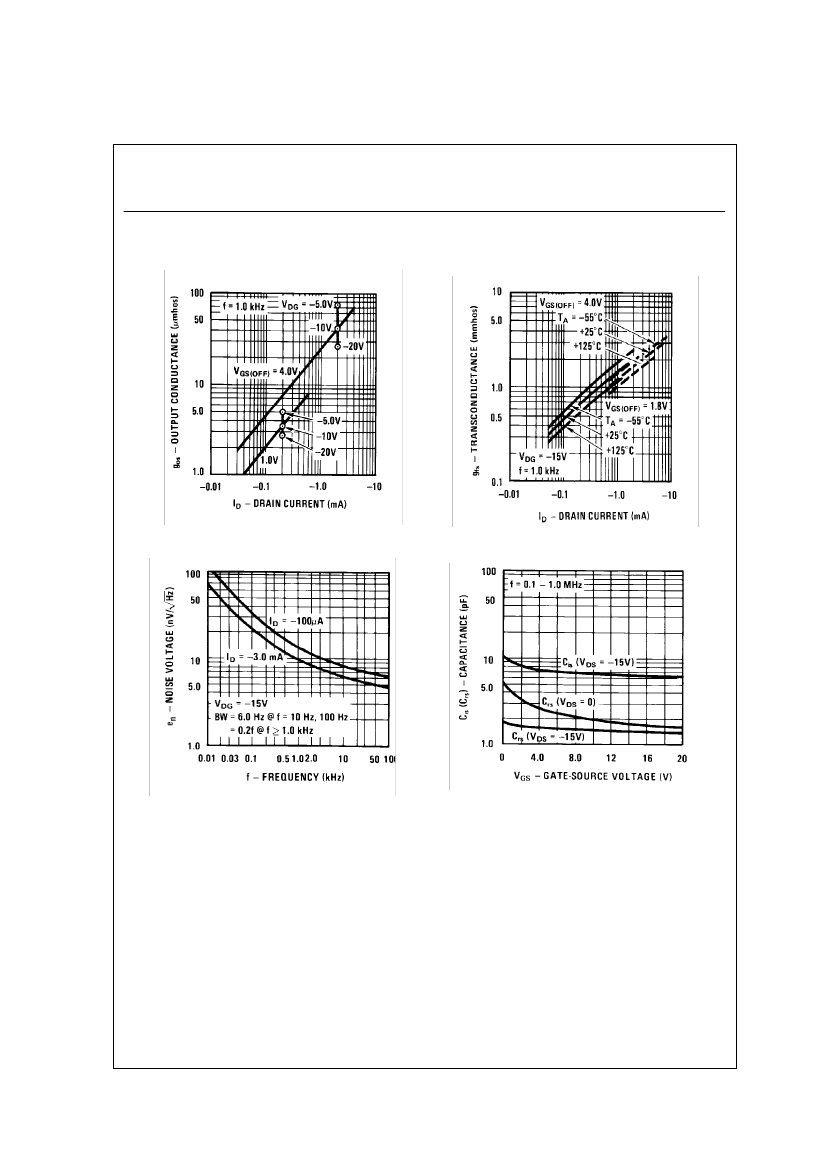

Output Conductance vs.
Drain Current
Transconductance vs.
Drain Current
Noise Voltage vs. Frequency
Capacitance vs. Voltage

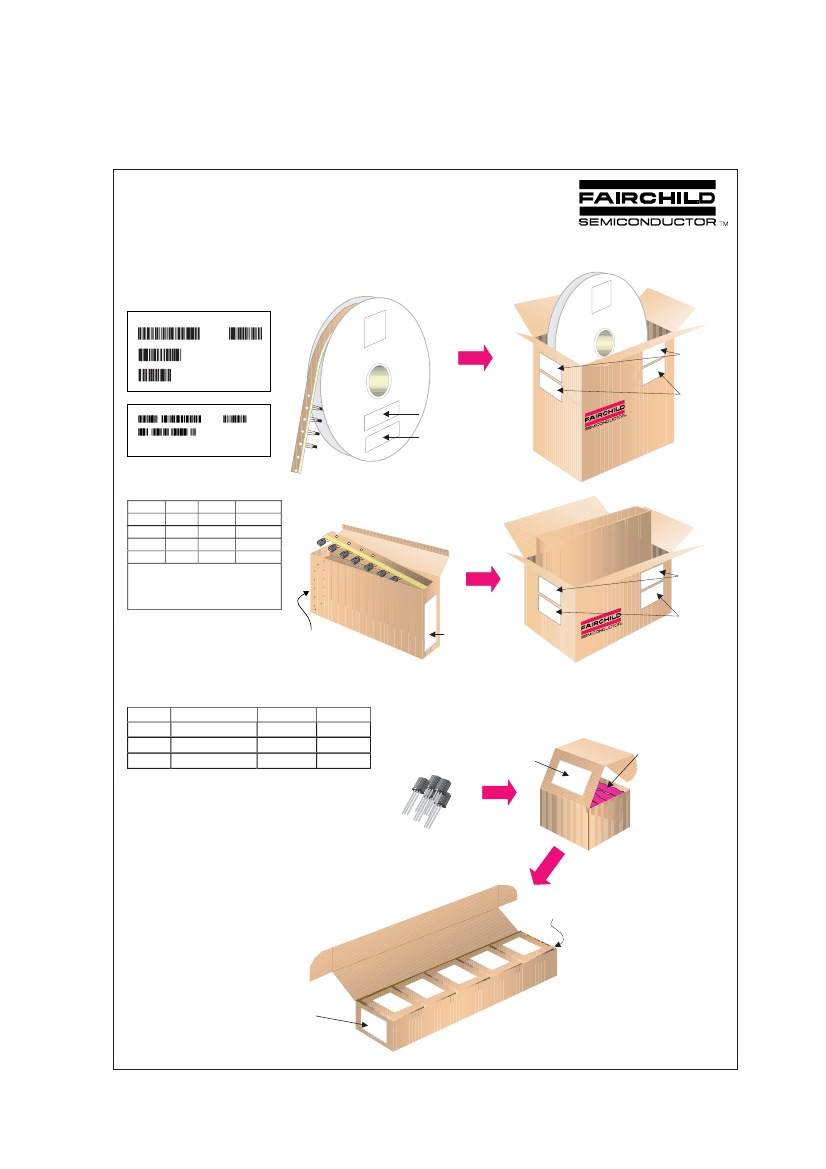

TO-92 Tape and Reel Data and Package Dimensions
TO-92 Packaging
Configuration:
Figure 1.0
TAPE and REEL OPTION
FSCINT Label sample
FAIRCHILD SEMICONDUCTOR CORPORATION
LOT:
CBVK741B019
HTB:B
QTY:
10000
See Fig 2.0 for various
Reeling Styles
NSID:
PN2222N
SPEC:
D/C1:
D9842
SPEC REV:
QA REV:
B2
FSCINT
Label
(FSCINT)
5 Reels per
Intermediate Box
F63TNR
Label
Customized
Label
375mm x 267mm x 375mm
Intermediate Box
F63TNR Label sample
LOT: CBVK741B019
FSID: PN222N
D/C1: D9842
D/C2:
QTY1:
QTY2:
QTY: 2000
SPEC:
SPEC REV:
CPN:
N/F: F
Customized
Label
(F63TNR)3
TO-92 TNR/AMMO PACKING INFROMATION
Packing
Reel
Style
A
E
Ammo
M
P
Quantity
2,000
2,000
2,000
2,000
EOL code
D26Z
D27Z
D74Z
D75Z
AMMO PACK OPTION
See Fig 3.0 for 2 Ammo
Pack Options
Unit weight
= 0.22 gm
Reel weight with components
= 1.04 kg
Ammo weight with components = 1.02 kg
Max quantity per intermediate box = 10,000 units
FSCINT
Label
327mm x 158mm x 135mm
Immediate Box
Customized
Label
5 Ammo boxes per
Intermediate Box
F63TNR
Label
333mm x 231mm x 183mm
Intermediate Box
Customized
Label
(TO-92) BULK PACKING INFORMATION
EOL
CODE
J18Z
J05Z
NO EOL
CODE
DESCRIPTION
TO-18 OPTION STD
TO-5 OPTION STD
TO-92 STANDARD
STRAIGHT
LEADCLIP
DIMENSION
NO LEAD CLIP
NO LEAD CLIP
NO LEADCLIP
QUANTITY
2.0 K / BOX
1.5 K / BOX
2.0 K / BOX
BULK OPTION
See Bulk Packing
Information table
Anti-static
Bubble Sheets
FSCINT Label
2000 units per
EO70 box for
std option
114mm x 102mm x 51mm
Immediate Box
5 EO70 boxes per
intermediate Box
530mm x 130mm x 83mm
Intermediate box
Customized
Label
FSCINT Label
10,000 units maximum
per intermediate box
for std option
September 1999, Rev. B
