Coaxial
50Ω
Features
High Power Amplifier
20W
20 to 1000 MHz
•
High power, 20 Watt
•
Protected against overheat -shuts off automatically
•
Excellent gain flatness, ±1.2 dB typ.
•
Class A amplifier
•
Usable over 15 to 1100 MHz
•
Protected by US patent 7,348,854
ZHL-20W-13+
Applications
Model No.
Case Style
Connectors
Price (Qty.)
ZHL-20W-13X+
▲
CP641
SMA
$1395.00 ea. (1-9)
$1320.00 ea. (1-9)
ZHL-20W-13+
•
VHF/UHF transmitters
•
defense
•
Amateur radio, FM, TV
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
Electrical Specifications
ZHL-20W-13+
Parameter
Frequency Range
Gain
Gain Flatness
Output Power at 1dB compression
Saturated Output Power at 3dB compression
Noise Figure
Output third order intercept point
Input VSWR
Output VSWR
DC Supply Voltage
Supply Current
+39
+40
+41
+43
3.5
+50
1.7
2.5
24
2.8
▲
ZHL-20W-13X+
▲
Max.
1000
55
±1.8
+39
+40
+41
+43
3.5
+50
1.7
2.5
24
2.8
Min.
20
46
Typ.
50
Min
20
46
Typ.
50
Max.
1000
55
±1.8
Units
MHz
dB
dB
dBm
dBm
dB
dBm
:1
:1
V
A

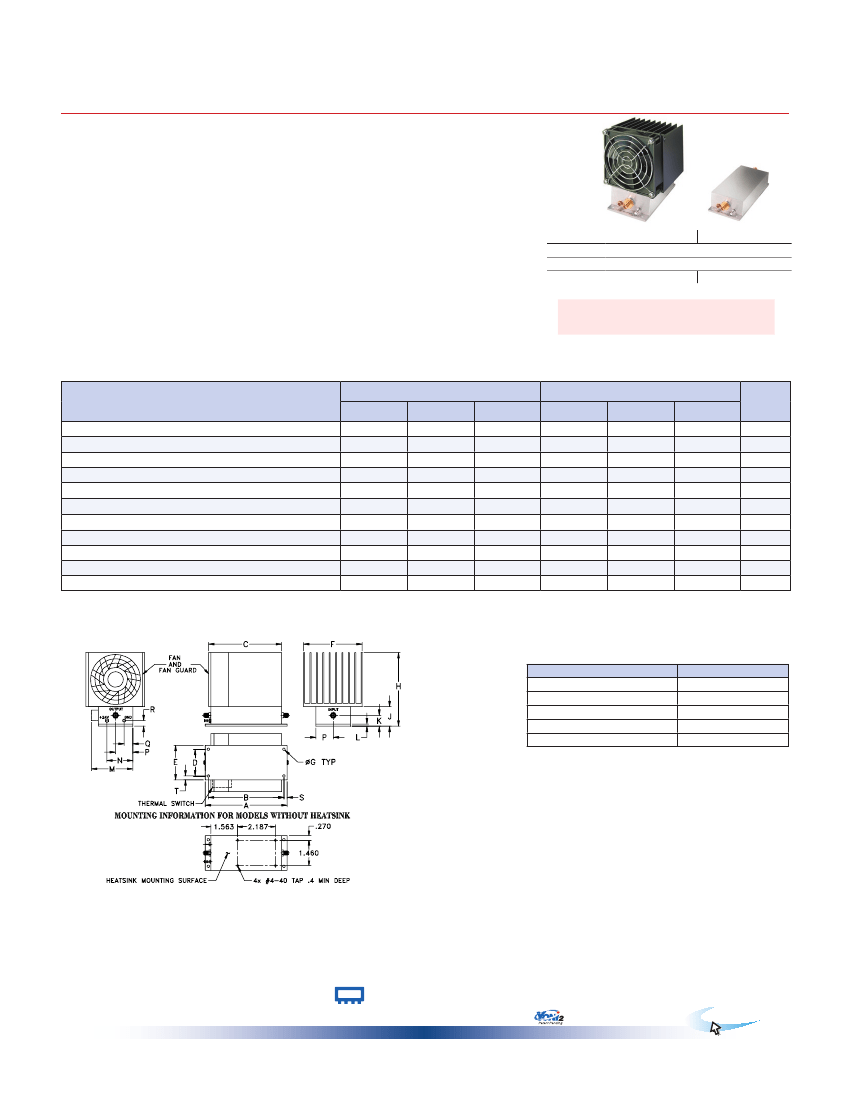

Outline Drawing
Heat sink and fan not included. Alternative heat sinking and heat removal
must be provided by the user to limit maximum base-plate temperature to
85°C, in order to ensure proper performance. For reference, this requires
thermal resistance of user’s external heat sink to be 0.3°C/W max.
Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Base Plate Temperature
DC Voltage
Input RF Power
1
(no damage)
Ratings
-20°C to 65°C
-55°C to 100°C
85°C
28V
-3 dBm
Permanent damage may occur if any of these limits are exceeded.
1. At nominal output load, 24V nominal supply voltage. Amplifier can withstand a
full mismatch (short or open) across all phases at the RF output for peak enve-
lope power (PEP) not exceeding the output power at 1 dB compression [Refer to
application note AN-60-037 for PEP calculation].
Outline Dimensions (
inch
)
mm
A
B
C
D
E
F
4.75 4.375
4.18 1.540
2.00
3.36
120.65 111.13 106.17 39.12 50.80 85.34
G
H
J
K
.144
4.24
1.12
.58
3.66 107.70 28.45 14.73
L
M
N
P
Q
.125
2.38
1.50
1.00
.50
3.18 60.45 38.10 25.40 12.70
R
S
T
wt
.34
.19
.23 grams*
8.64
4.83
5.84
750
*290 grams without heatsink
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
TM
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
REV. D
M124323
ZHL-20W-13+
