MM44MS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> MM44MS

MM44MS: DescriptionTriple Balanced Mixer, 1500MHz Min, 9000MHz Max, 9dB Conversion Loss-Max, MS3AL, 3 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size165KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

MM44MS Overview

Triple Balanced Mixer, 1500MHz Min, 9000MHz Max, 9dB Conversion Loss-Max, MS3AL, 3 PIN

MM44MS Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Is Samacsys	N
Characteristic impedance	50 Ω
structure	MODULE
Maximum frequency conversion loss	9 dB
Maximum operating frequency	9000 MHz
Minimum operating frequency	1500 MHz
RF/Microwave Device Types	TRIPLE BALANCED
Base Number Matches	1

Preview

Download Datasheet

View All

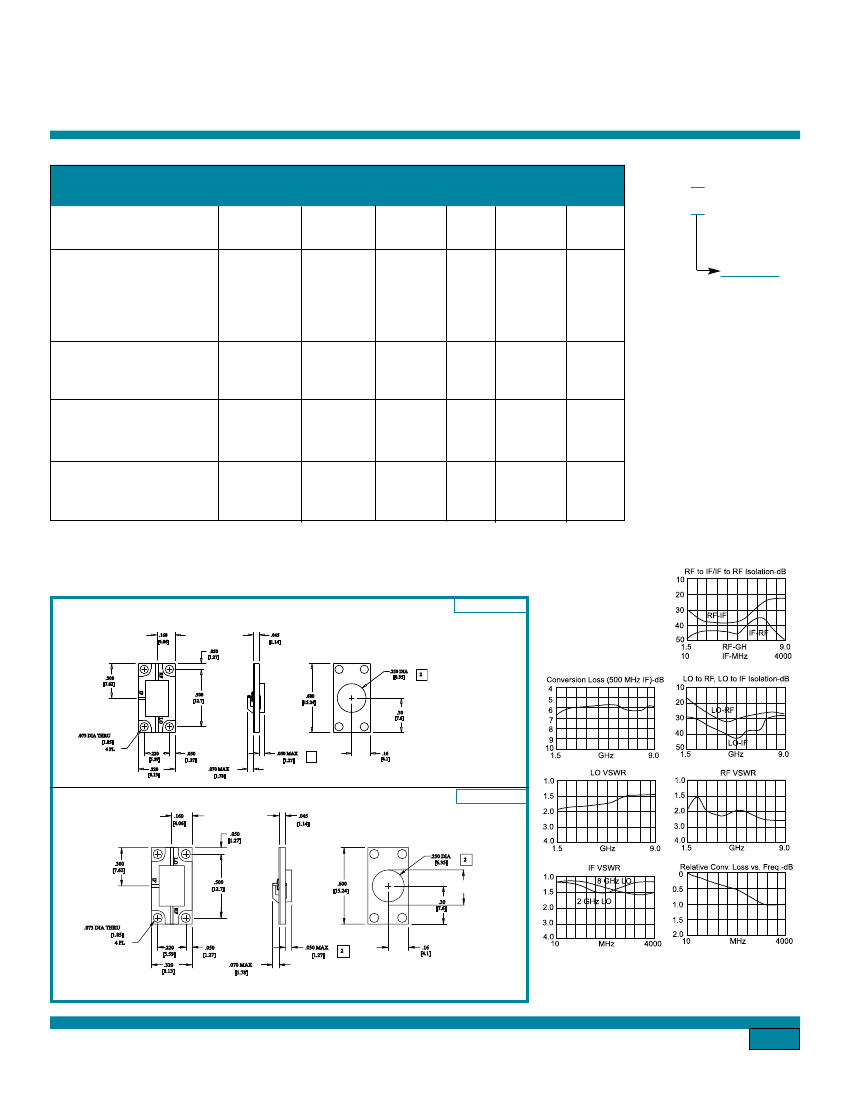

REMEC

Triple Balanced Mixer

Multi-Octave Band

Electrical Specifications

Parameter

SSB Conversion

loss:

(2) (3)

Isolation

LO to RF:

LO to IF:

RF to IF:

IF to RF:

Input 1-dB

Compression Point:

Input Third Order

Intercept Point:

LO Power:

1.5-9.0

(1)

RF 1.5-9.0 GHz

LO 1.5-9.0 GHz

IF 10-4000 MHz

Conditions

RF(GHz)

2.0-9.0

1.5-9.0

LO(GHz)

2.0-9.0

1.5-9.0

3.0-9.0

1.5-9.0

10-4000

IF(MHz)

10-2000

10-4000

Min

Specifications

Typical

6.0 dB

6.5 dB

22 dB

27 dB

35 dB

31 dB

42 dB

+5 dBm

+8 dBm

+12 dBm

+15 dBm

+14 dBm

+17 dBm

+21 dBm

+24 dBm

+10 dBm

+13 dBm

+17 dBm

+21 dBm

Max

7.5 dB

9.0 dB

MM4xMS

MM4xMS-15

LO Power

4 = +10 dBm

6 = +13 dBm

7 = +17 dBm

8 = +21 dBm

15 dB

20 dB

22 dB

1.5-9.0

10-4000

(4)

1.5-9.0

10-4000

MM44

MM46

MM47

MM48

MM44

MM46

MM47

MM48

MM44

MM46

MM47

MM48

Notes:

1. Specifications are guaranteed when tested as a downconverter in a 50 Ohm system at +25°C with the

nominal LO power. Specifications indicated as typical are not guaranteed.

2. Noise figure is typically within ±0.5 dB of conversion loss.

3. Conversion loss typically degrades less than 0.5 dB at +100°C and improves less than 0.5 dB at -55°C.

4. Usable LO drives are up to 2 dB below and 3 dB above nominal.

5. See Application Note M112, for aid in selecting the outline and for mounting and installation information.

MM4xMS

Outline: MS3AL

Typical

Performance

at 25°C

MM4xMS-15

Outline: MS3BL

0.38

All dimensions are in inches and [mm].

Specifications subject to change without notice.

1590 Buckeye Drive - Milpitas, CA 95035 - TEL: 408-432-9898 - FAX: 408-432-1551 - components@remec.com - www.remec.com

3-28
