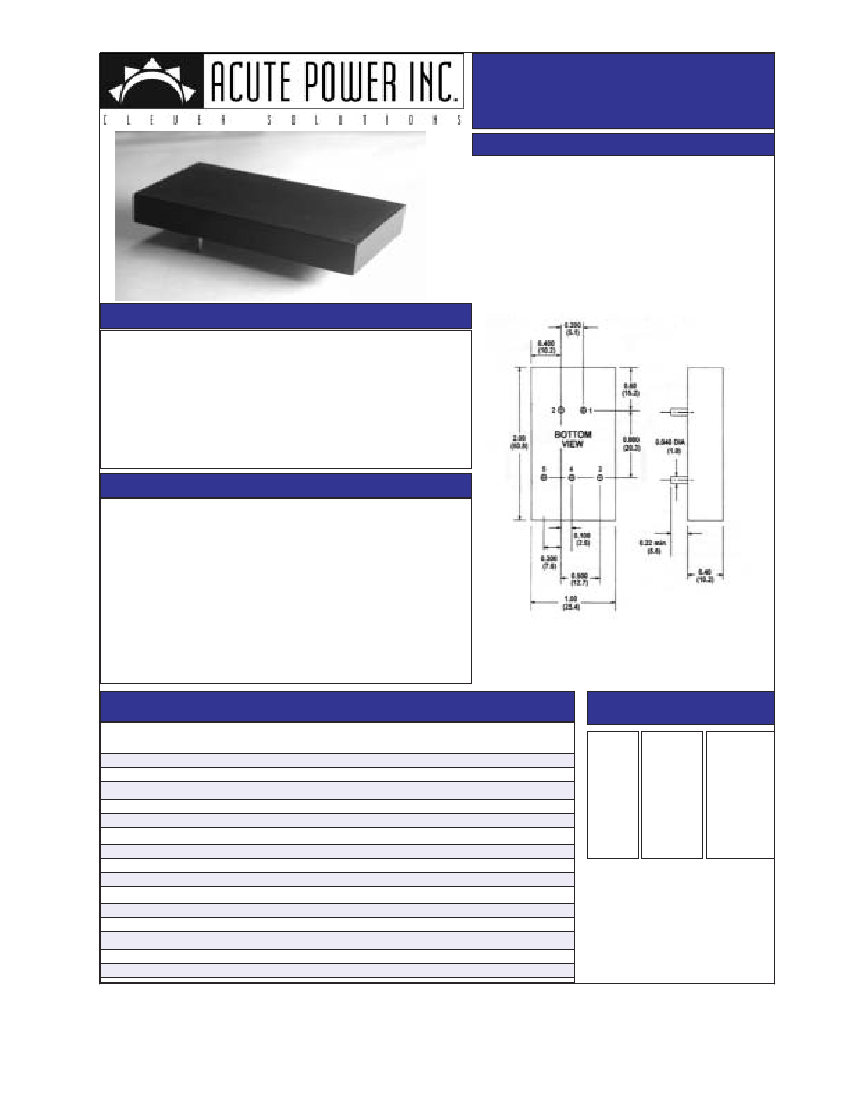

15 WATT DC/DC

BRM 15 Series

Features

•

Wide input voltage range 2:1

15 Watts (1x2x0.4”)

Efficiency to 84%

PI input filter

Electrical Specifications

Input Voltage/Range................ See Table

Output Voltage Accuracy........ -/+ 2%

Line Regulation...................... -/+ 1.0% (HL-LL)

Load Regulation (single)........ -/+ 1.0% (100% to 10%)

Load Regulation (dual).......... -/+ 2% (100% to 10%)

Efficiency.............................. See Table

EM/RFI................................ Six-Sided Continuous Shield

General Specifications

Switching Frequency................300KHz Typ.

Output Ripple & Noise.............100mVp-p(20MHz B.W.)

Isolation Voltage.......................1500VDC

Isolation Resistance..................1 gigohm

Storage Temperature Range.......-40C to 100C

Operating Temperature Range... -25C to +71C

Short Circuit Protection........... Continuous

Case Material........................... Black Coated Metal With

Non-Conductive Base

Model Selection Guide

Input

Nom.

12V

24V

48V

Voltage

Range

9-18VDC

18-36VDC

36-72VDC

Output

Voltage

5VDC

12VDC

15VDC

+/-12VDC

+/-15VDC

5VDC

12VDC

15VDC

+/-12VDC

+/-15VDC

5VDC

12VDC

15VDC

+/-12VDC

+/-15VDC

Output

Current

3000mA

1250mA

1000mA

+/-625mA

+/-500mA

3000mA

1250mA

1000mA

+/-625mA

+/-500mA

3000mA

1250mA

1000mA

+/-625mA

+/-500mA

Efficiency

(%)

Model

Number

BRM15-12S05RTH

BRM15-12S12RTH

BRM15-12S15RTH

BRM15-12D12RTH

BRM15-12D15RTH

BRM15-24S05RTH

BRM15-24S12RTH

BRM15-24S15RTH

BRM15-24D12RTH

BRM15-24D15RTH

BRM15-48S05RTH

BRM15-48S12RTH

BRM15-48S15RTH

BRM15-48D12RTH

BRM15-48D15RTH

Pin Connection

Pin#

Single

+Vin

-Vin

+Vout

No pin

-Vout

Dual

+Vin

-Vin

+Vout

Common

-Vout

International Coil Power Inc., 15 Jonathan Drive, Unit 1, Brockton, MA 02301

Ph:(508)

580-8515

Fax:

(508) 580-8511 www.acutepower.com
