EPD3R3030: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid; CategoryPower/power management The power supply circuit; File Size84KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

EPD3R3030 Overview

DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid

EPD3R3030 Parametric

Parameter Name	Attribute value
Maker	SHINDENGEN
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	60 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-G10
Number of functions	1
Output times	1
Number of terminals	10
Maximum output voltage	3.465 V
Minimum output voltage	3.201 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	YES
technology	HYBRID
Terminal form	GULL WING
Terminal location	DUAL
Maximum total power output	10 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

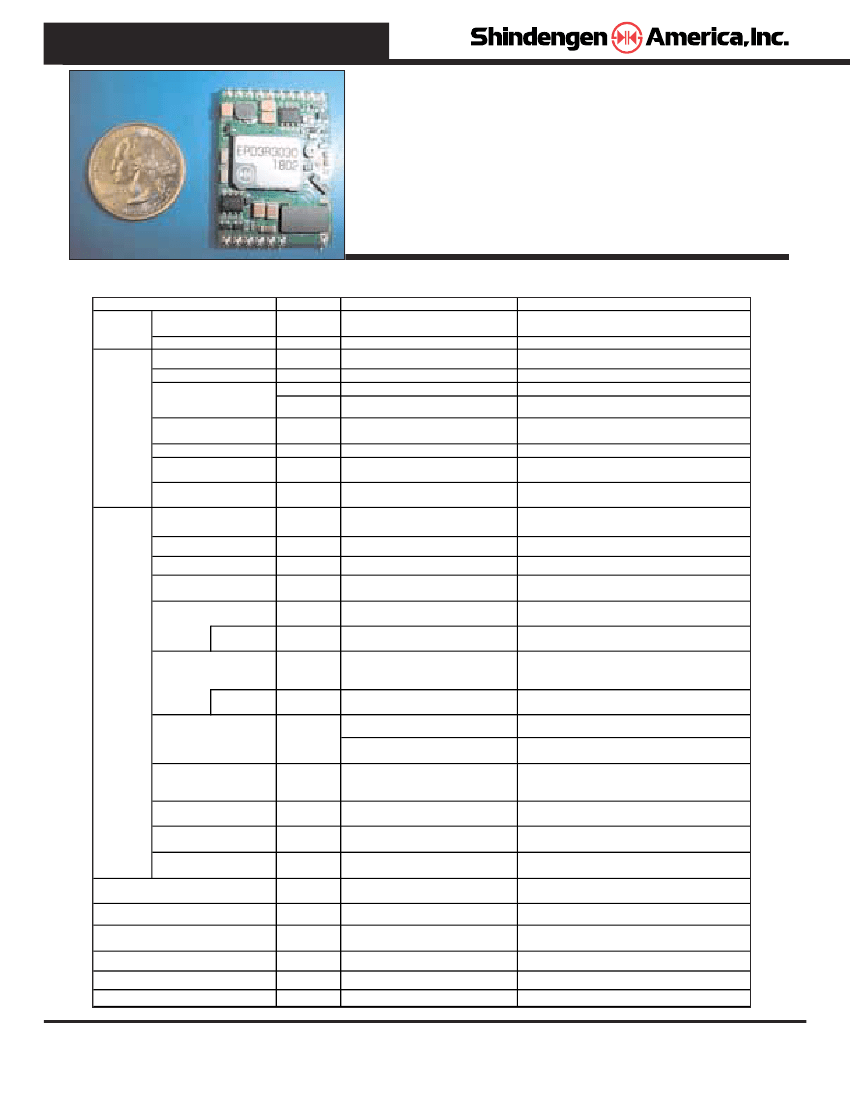

EPD DC/DC Converter

The EPD Series

is a new line of very low profile isolated DC/DC con-

verters with a maximum height of 5mm. Shindengen’s design offers high

efficiency (up to 88%) and excellent reliability. Typical applications

include 48V telecom, networking and datacom.

Features

•

*

•

*

3.3v output voltage

Up to 3.0A output current

Small size (1.07” x 1.57” x 1.96”)

10 Watt

SPECIFICATIONS

Output Initial Setting

Rating

Cooling Method

Absolute Max. Rating

Voltage Rating

V

3.3

Continuous

0.2

75

48

36-60

60-75

32.0-35.5

5

3

FCC part15 subpart B class A

conformity

3.201-3.465

3

0-3.0

More than 3.1

3.79-4.62

200

115-140 to rating

Between single-engined 10ms is electrical-property-guaranteed.

m/s

V

mA typ.

% typ.

Natural convection

Radiated emission

Conversion Frequency

Dimension (L*W*H)

Isolation Voltage

Insulation resistance

Safety

KHz typ.

mm

V

Ohm

-

Input Side

Output side

Input Voltage Range

Turn-on Input Voltage

Standby Current

Input Voltage sudden

change characteristic

Line conduction

Output Voltage Initial

Setting

Output Current (max.)

Output Current

Output Over Current

Limit

Fault

Voltage

detection setting

Delay time

Insufficient

voltage

detection setting value

Delay time

Output Ripple

Stop hysteresis: More than 2.0V

Vin=30V

Ta=25 degree

Ta=25 degree (Vin=48V, Io=3A)

-3/+5% to rating

V

A

V

us typ.

V

ms

Less than 2.97

More than 100

50

90% to Rating

Including surge

Excluding surge

mV p-p

Output Starting delay

time

Start up time

Load change

Efficiency

ms

% typ.

25

20-500

5

88

FCC Part15 subpart B class A

680

27.2 +/- 0.5 * 39.9 +/- 0.6 *

4.8

DC1500 (1 minute.)

More than 10M

UL, CSA Requirement scheduled

Ta=25 degree

Vin=48V, Io=3A, Ta=25 degree

Ta=25 degree

Height : 5.0 max.

Vin-Vout, 10mA

Vin-Vout, DC 500V

1 - 8 0 0 - 6 3 4 - 3 6 5 4

w w w . s h i n d e n g e n . c o m

EPD3R3030 Related Products

	EPD3R3030	EPD1R8030	EPD2R5030
Description	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	60 V	60 V	60 V
Minimum input voltage	36 V	36 V	36 V
Nominal input voltage	48 V	48 V	48 V
JESD-30 code	R-XDMA-G10	R-XDMA-G10	R-XDMA-G10
Number of functions	1	1	1
Output times	1	1	1
Number of terminals	10	10	10
Nominal output voltage	3.3 V	1.8 V	2.5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
technology	HYBRID	HYBRID	HYBRID
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Maximum total power output	10 W	10 W	10 W
Fine-tuning/adjustable output	NO	NO	NO
Maker	SHINDENGEN	-	SHINDENGEN
Base Number Matches	1	1	-
