KF42X-A26S/A26S-B2NJ datasheet, PDF

Datasheet> All Categories > The connector> The connector> KF42X-A26S/A26S-B2NJ

KF42X-A26S/A26S-B2NJ: DescriptionD Subminiature Connector, 26 Contact(s), Female-Female, Solder Terminal, Socket, ROHS COMPLIANT PACKAGE-26; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

KF42X-A26S/A26S-B2NJ Overview

D Subminiature Connector, 26 Contact(s), Female-Female, Solder Terminal, Socket, ROHS COMPLIANT PACKAGE-26

KF42X-A26S/A26S-B2NJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT PACKAGE-26
Reach Compliance Code	unknown
Is Samacsys	N
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE-FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	KF42
Plug information	NO
Mixed contacts	NO
Installation type	BOARD/PANEL
Options	GENERAL PURPOSE
Housing size	2/A
Termination type	SOLDER
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

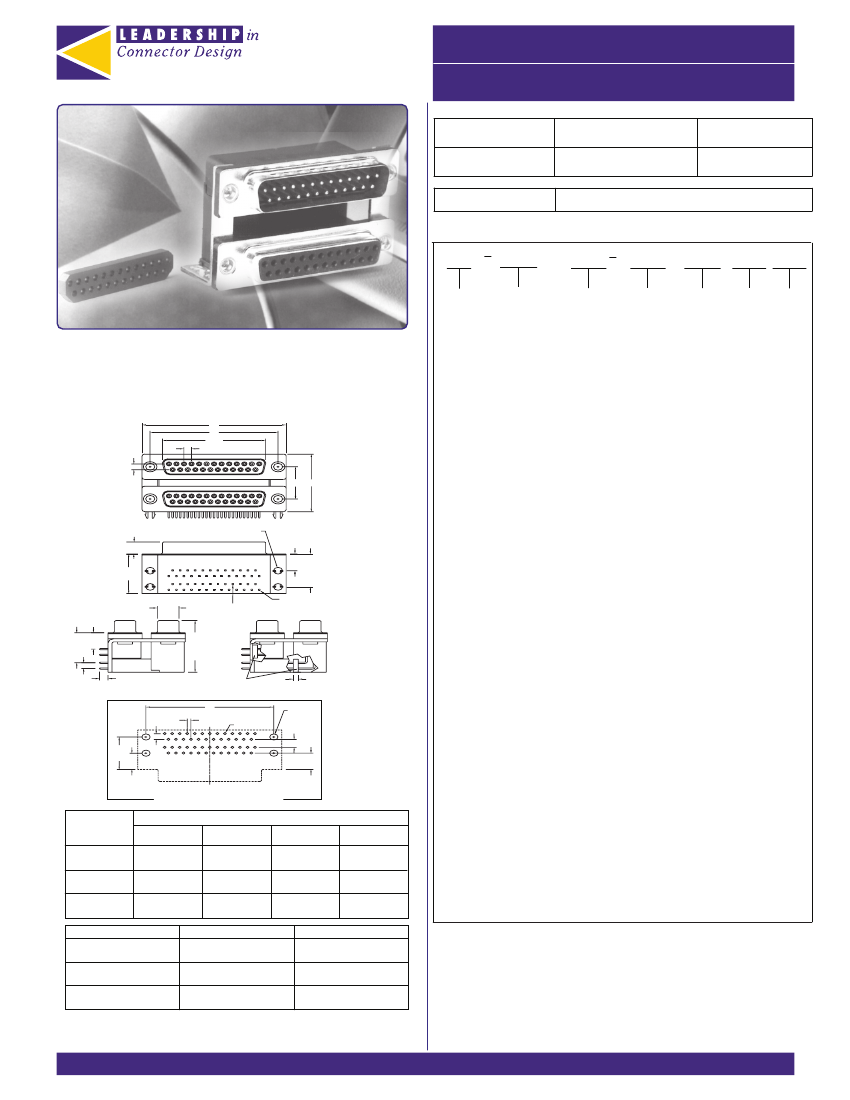

FERRITE D-SUBMINIATURE

KYCON

RoHS

KF42X Series

Documentation &

Ordering Information

Drawing

Sample

Kycon Part #

Stock

CofC

RFQ

KF42X-E9S/S-A2NJ

Part Builder

KF42X

E9 S

Center

Distance

Board

Lock

Jack Plating

Screws Option

Series Top Shell Size Bottom

Connector

Shell Size

Type

Connector

KF42X Series

Dual Port D-Sub with Ferrite

Pictured with Board Lock Option, Dimensions in mm [In]

A, A1

2.77

Series

KF42X - Dual-Port D-Subminiature Connector

KF42X

E - 9 Contacts

A - 26 Contacts

B - 25 Contacts

C - 62 Contacts

E - 15 Contacts (High Density)

Top Shell Size

2.84

Top Connector Type

4-Ø3.18 [0.125"]

5.9 Plug,

6.0 Socket

Bottom Shell Size

8.0±0.25

16.00±0.25

P - Pin Contact (Plug)

S - Socket Contact (Receptacle)

8.08±0.20

7.90

±0.13

Inner Hole

Edge Hole

E - 9 Contacts

- 15 Contacts

B - 44 Contacts

C - 62 Contacts

E - 15 Contacts (High Density)

19.50

14.84±0.20

25.50±0.25

- Pin Contact (Plug)

S - Socket Contact (Receptacle)

Ferrite Inserts

1.80

±0.20

Bottom Connector Type

2.84

3.18

±0.20

Center to Center Distance

A - .750”

B - .900”

- .625”

Optional grounding brackets not shown in side views.

4-Ø3.05

2.84

1.385

3.92

Ø1.09

Board Locks Option

8.08

(Top View)

Blank

Blank - No Board Lock

2N - Board Locks in rear only

4N - Board Locks in ( Most Popular)

16.00

8.00

Recommended PCB Layout

Number of

Contacts

(Shell Size)

9 (E)

15 (A)

25 (B)

Dimensions (Inch/

mm )

.643

16.33

.971

24.66

1.511

38.38

.666

16.92

.994

25.25

1.534

38.96

.750

19.05

.900

22.86

.625

15.88

.984

24.99

1.312

33.32

1.852

47.04

1.213

30.81

1.541

39.14

2.088

53.04

1.244

31.60

1.394

35.41

1.119

28.42

Blank - No Jack Screws

Blank

J - 4-40 HEX Removable Jack Screws

R - Round Riveted Jack Screws

Jack Screws Option

Plating Option

Blank

- Gold Flash

- 15

” Gold

- 30

” Gold

Center to Center Spacing

Click here for Performance Specification

Click here for FERRITE D-SUBMINIATURE CONNECTORS

A1 = Interior of Male Shell (P) A = Exterior of Female Shell (S)

2007

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
