BSS98E-6288 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BSS98E-6288

BSS98E-6288: Description300mA, 50V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92; CategoryDiscrete semiconductor The transistor; File Size291KB，7 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BSS98E-6288 Overview

300mA, 50V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92

BSS98E-6288 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
Is Samacsys	N
Configuration	SINGLE
Minimum drain-source breakdown voltage	50 V
Maximum drain current (ID)	0.3 A
Maximum drain-source on-resistance	3.5 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Transistor component materials	SILICON
Base Number Matches	1

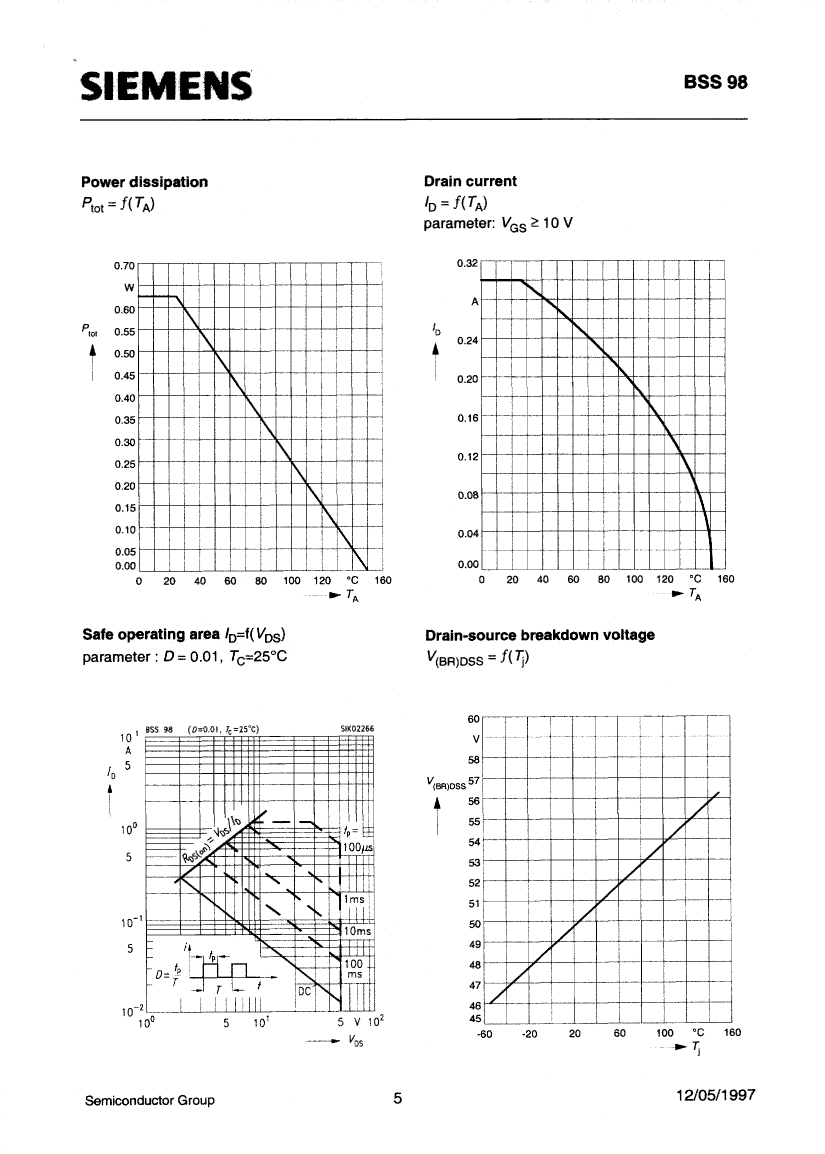

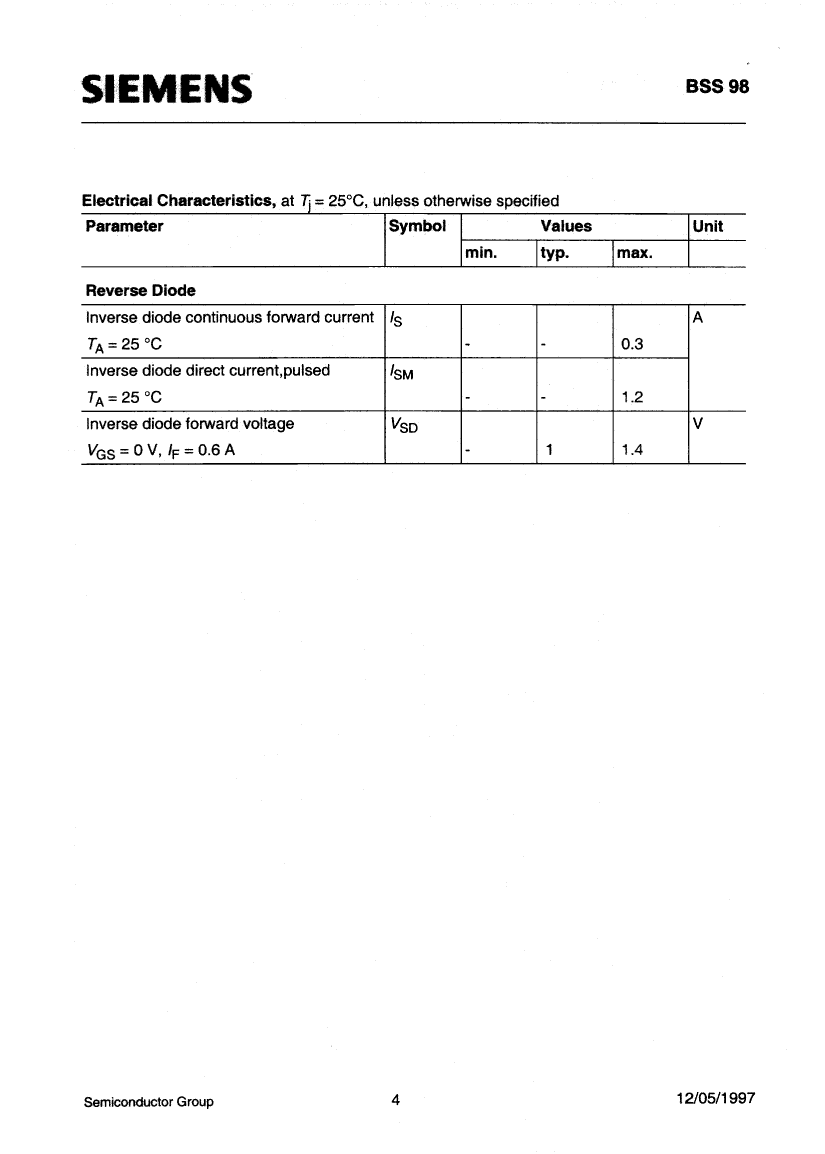

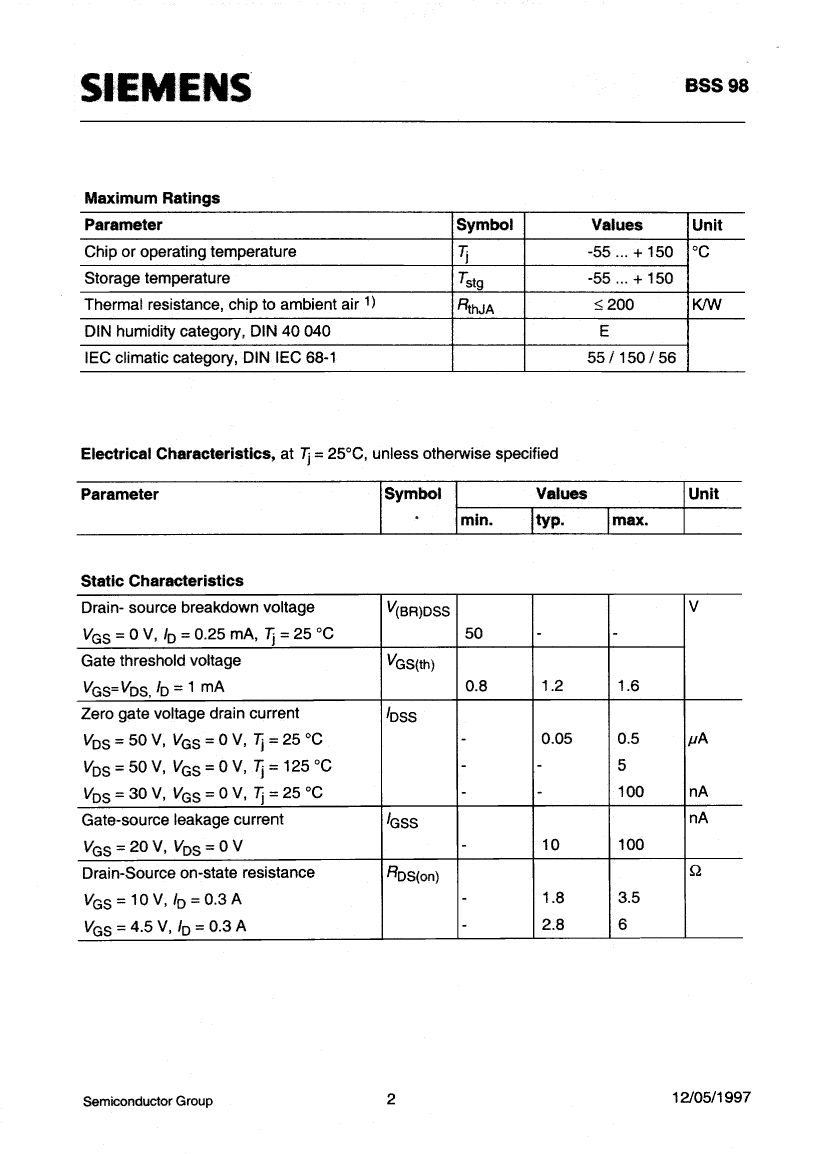

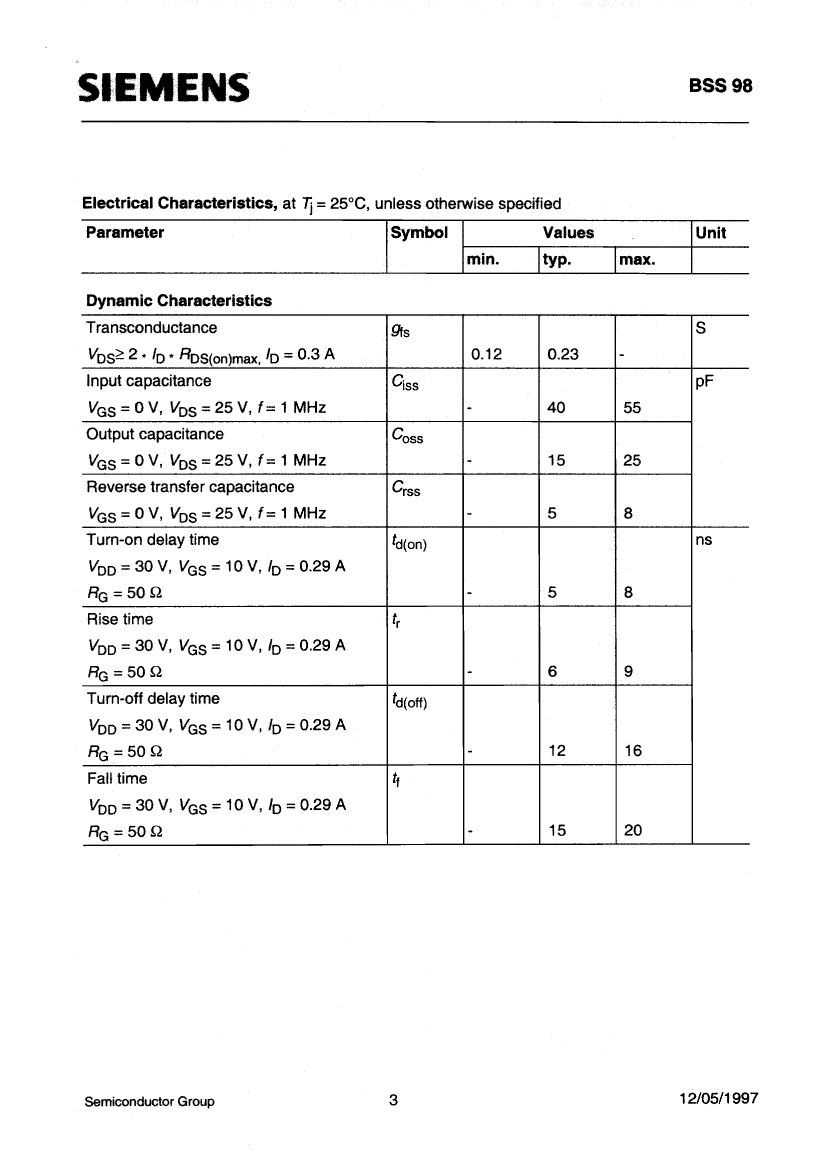

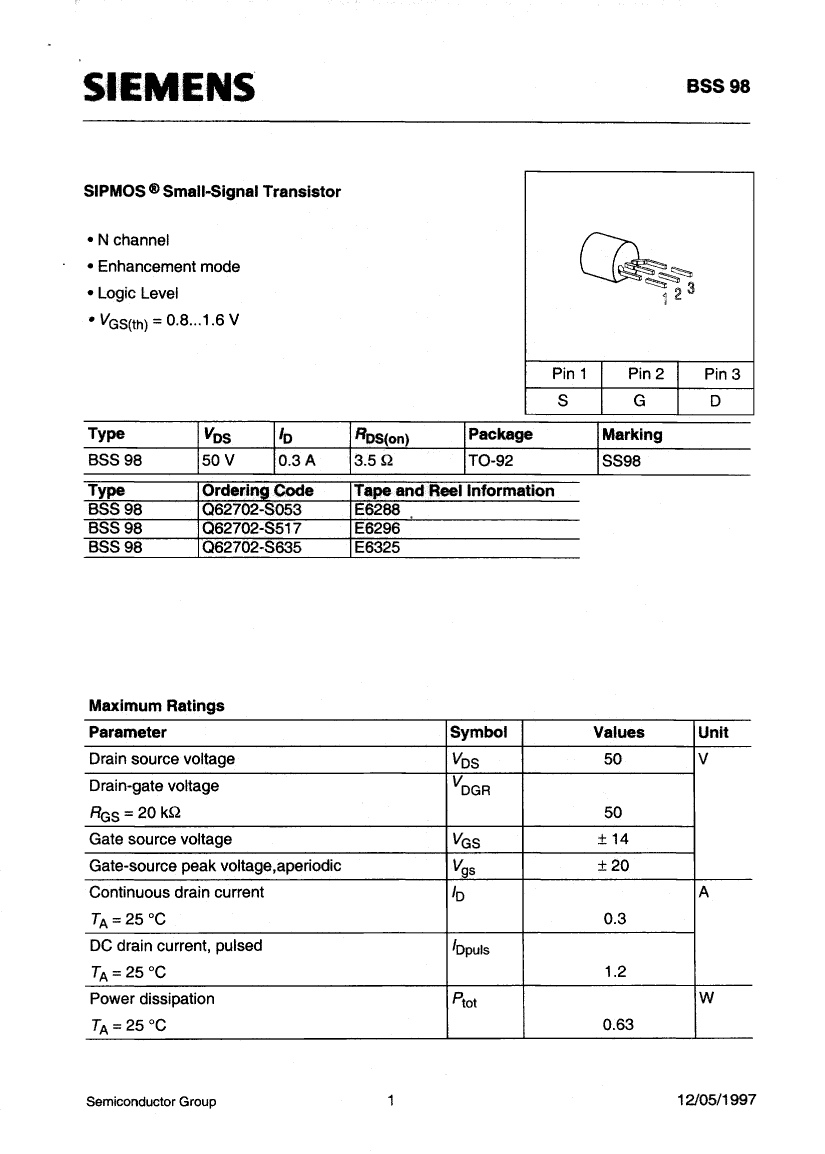

Preview

Download Datasheet

View All

BSS98E-6288 Related Products

	BSS98E-6288	BSS98E6325	BSS98E6288	BSS98E6296
Description	300mA, 50V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92	Small Signal Field-Effect Transistor, 0.3A I(D), 50V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92	Small Signal Field-Effect Transistor, 0.3A I(D), 50V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92	Small Signal Field-Effect Transistor, 0.3A I(D), 50V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92
Maker	SIEMENS	SIEMENS	SIEMENS	SIEMENS
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N
Configuration	SINGLE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	50 V	50 V	50 V	50 V
Maximum drain current (ID)	0.3 A	0.3 A	0.3 A	0.3 A
Maximum drain-source on-resistance	3.5 Ω	6 Ω	6 Ω	6 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Base Number Matches	1	1	1	1
ECCN code	-	EAR99	EAR99	EAR99
Other features	-	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE
Maximum feedback capacitance (Crss)	-	8 pF	8 pF	8 pF
transistor applications	-	SWITCHING	SWITCHING	SWITCHING
