AD632AH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> AD632AH

AD632AH: DescriptionAnalog Multiplier Or Divider, 1 Func, 1MHz Band Width, BIPolar, MBCY10,; CategoryAnalog mixed-signal IC The signal circuit; File Size368KB，5 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/; Related ProductsFound14parts with similar functions to AD632AH

Download Datasheet Parametric Compare View All

AD632AH Overview

Analog Multiplier Or Divider, 1 Func, 1MHz Band Width, BIPolar, MBCY10,

AD632AH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	ANALOG MULTIPLIER OR DIVIDER
Nominal bandwidth	1 MHz
JESD-30 code	O-MBCY-W10
JESD-609 code	e0
Maximum negative supply voltage (Vsup)	-20 V
Negative supply voltage minimum (Vsup)	-8 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Maximum negative input voltage	-10 V
Number of functions	1
Number of terminals	10
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN10,.23
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum positive input voltage	10 V
power supply	+-15 V
Certification status	Not Qualified
Maximum supply current (Isup)	12 mA
Maximum supply voltage (Vsup)	20 V
Minimum supply voltage (Vsup)	8 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

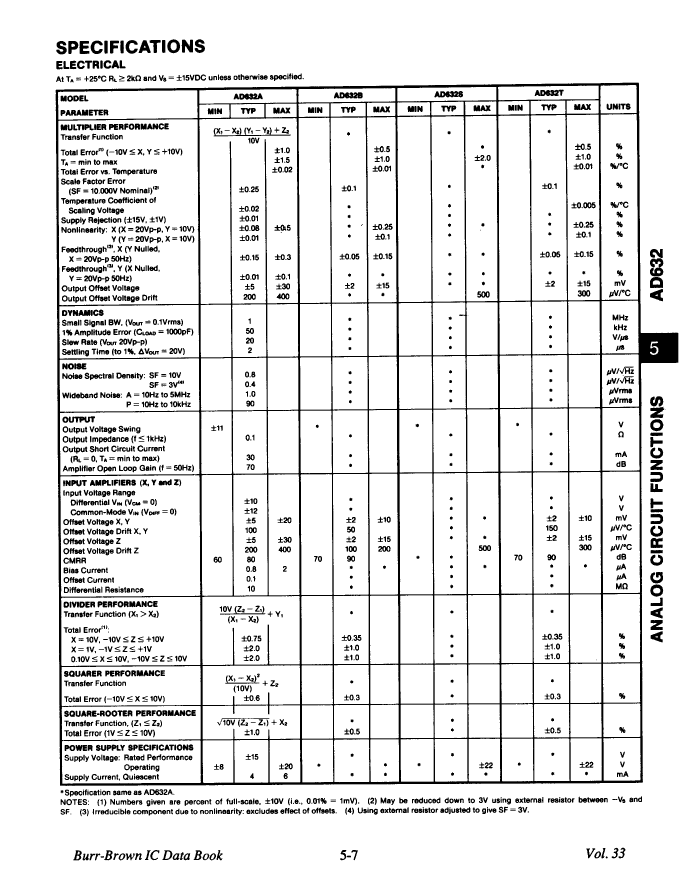

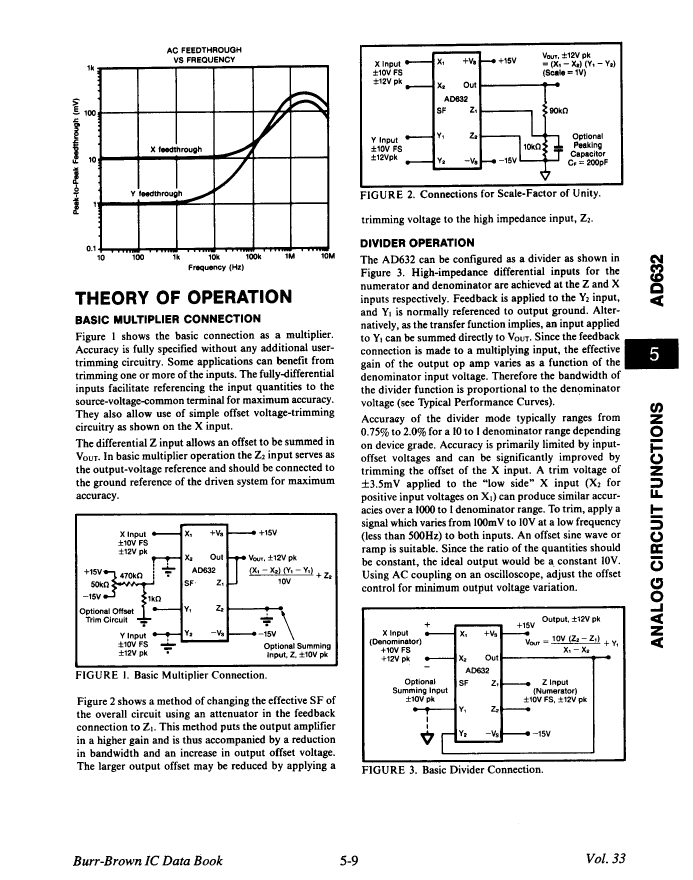

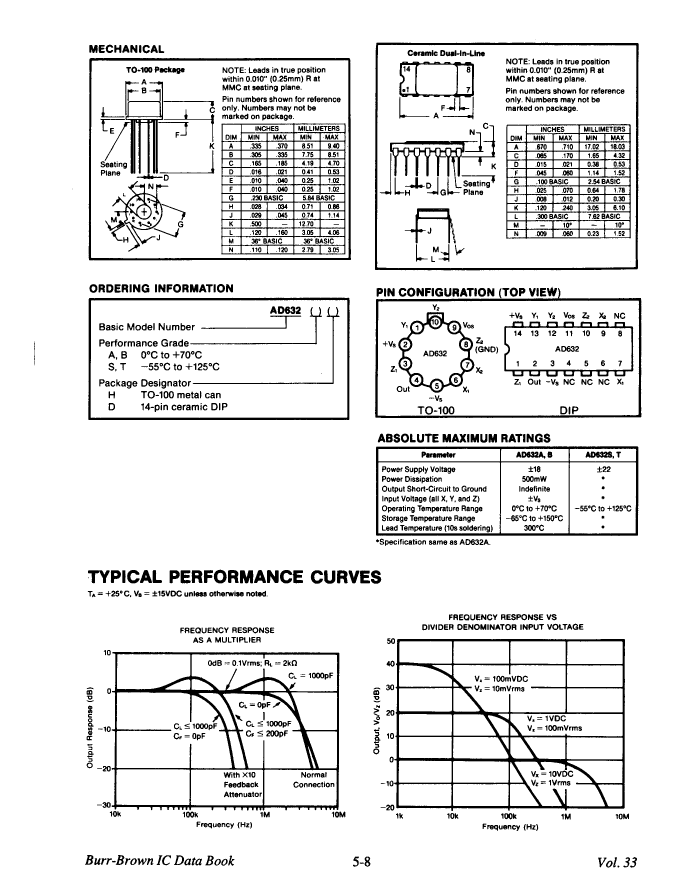

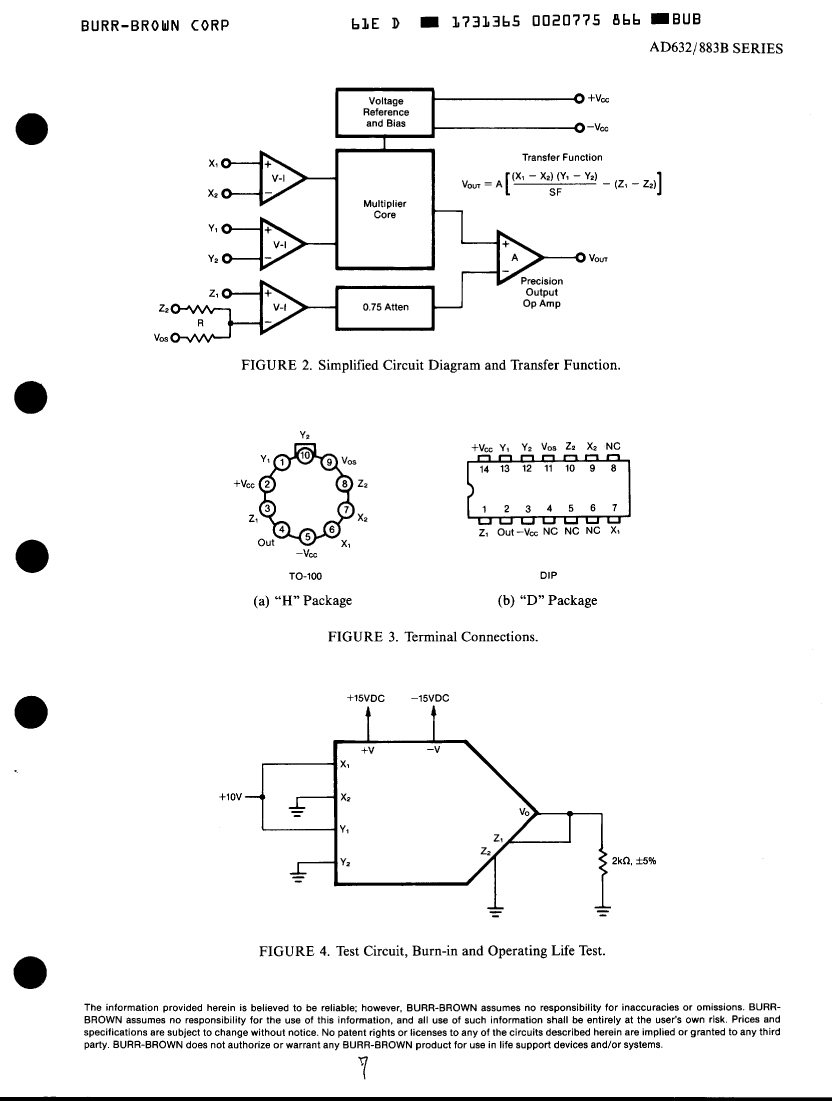

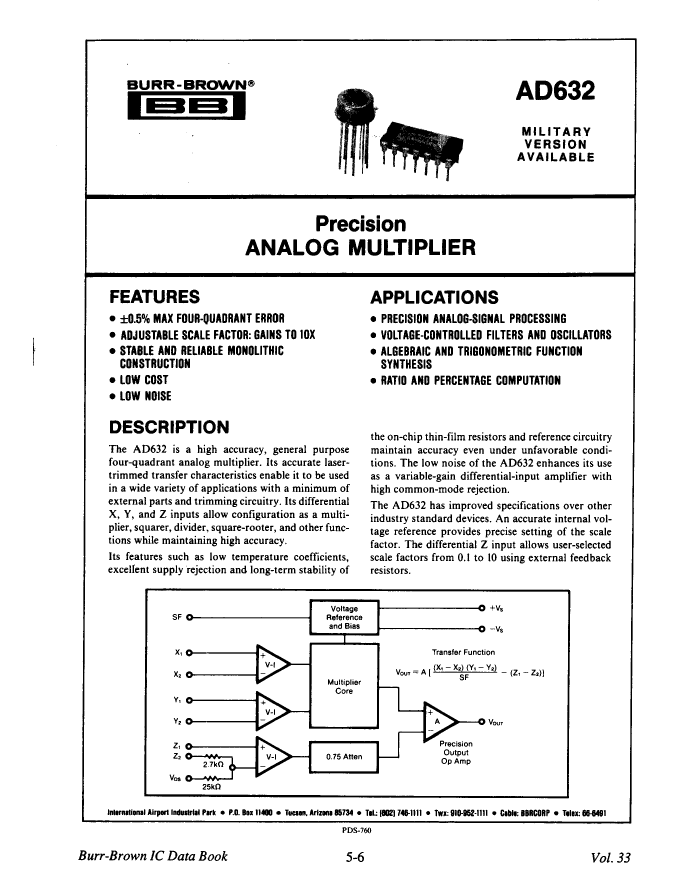

Preview

Download Datasheet

View All

AD632AH Related Products

	AD632AH	AD632BH	AD632SH	AD632TH	AD632AD	AD632BD	AD632TD	AD632SD
Description	Analog Multiplier Or Divider, 1 Func, 1MHz Band Width, BIPolar, MBCY10,	Analog Multiplier Or Divider, 1 Func, 1MHz Band Width, BIPolar, MBCY10,	Analog Multiplier Or Divider, 1 Func, 1MHz Band Width, BIPolar, MBCY10,	Analog Multiplier Or Divider, 1 Func, 1MHz Band Width, BIPolar, MBCY10,	Analog Multiplier Or Divider, 1 Func, 1MHz Band Width, BIPolar, PDIP14,	Analog Multiplier Or Divider, 1 Func, 1MHz Band Width, BIPolar, PDIP14,	Analog Multiplier Or Divider, 1 Func, 1MHz Band Width, BIPolar, PDIP14,	Analog Multiplier Or Divider, 1 Func, 1MHz Band Width, BIPolar, PDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maker	Burr-Brown	-	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown	Burr-Brown
Is Samacsys	N	-	N	N	N	N	-	-
Analog Integrated Circuits - Other Types	ANALOG MULTIPLIER OR DIVIDER	ANALOG MULTIPLIER OR DIVIDER	ANALOG MULTIPLIER OR DIVIDER	ANALOG MULTIPLIER OR DIVIDER	ANALOG MULTIPLIER OR DIVIDER	ANALOG MULTIPLIER OR DIVIDER	ANALOG MULTIPLIER OR DIVIDER	-
Nominal bandwidth	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	-
JESD-30 code	O-MBCY-W10	O-MBCY-W10	O-MBCY-W10	O-MBCY-W10	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	-
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	-
Maximum negative supply voltage (Vsup)	-20 V	-20 V	-22 V	-22 V	-20 V	-20 V	-22 V	-
Negative supply voltage minimum (Vsup)	-8 V	-8 V	-8 V	-8 V	-8 V	-8 V	-8 V	-
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-
Maximum negative input voltage	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V	-
Number of functions	1	1	1	1	1	1	1	-
Number of terminals	10	10	10	10	14	14	14	-
Maximum operating temperature	70 °C	70 °C	125 °C	125 °C	70 °C	70 °C	125 °C	-
Package body material	METAL	METAL	METAL	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Encapsulate equivalent code	CAN10,.23	CAN10,.23	CAN10,.23	CAN10,.23	DIP14,.3	DIP14,.3	DIP14,.3	-
Package shape	ROUND	ROUND	ROUND	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	IN-LINE	IN-LINE	IN-LINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum positive input voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V	-
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum supply current (Isup)	12 mA	12 mA	12 mA	12 mA	12 mA	12 mA	12 mA	-
Maximum supply voltage (Vsup)	20 V	20 V	22 V	22 V	20 V	20 V	22 V	-
Minimum supply voltage (Vsup)	8 V	8 V	8 V	8 V	8 V	8 V	8 V	-
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	-
surface mount	NO	NO	NO	NO	NO	NO	NO	-
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	WIRE	WIRE	WIRE	WIRE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Base Number Matches	1	1	1	1	1	1	-	-
