CZ8462 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> CZ8462

CZ8462: Description0 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size201KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

CZ8462 Overview

0 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN

CZ8462 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Is Samacsys	N
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.2
Base Number Matches	1

Preview

Download Datasheet

View All

Cross Reference Guide

CZ8462 / SM8462*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

0.0 - 400.0 MHz

14.5 dB Typical

13.0 dB Min

5.0 dB Typical

7.0 dB Max

8.5 dBm Typical

7.0 dBm Min

20.0 dBm Typical

27.0 dBm Typical

1.8/2.2 Input Typ/Max

1.8/2.2 Output Typ/Max

-20.0 dB Typical

-18.0 dB Min

15.0 Volts

25.0 mA

-55.0 - 85.0 °C

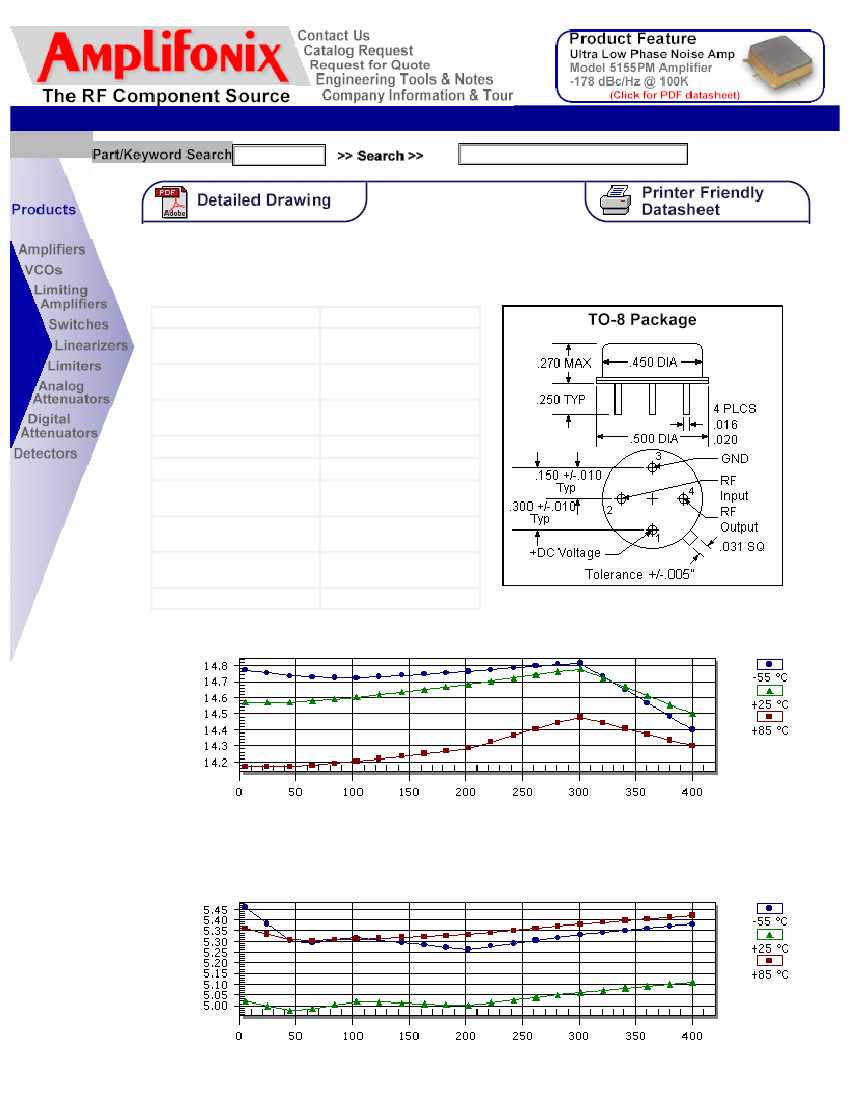

Package Drawing

Gain

Frequency (MHz)

Noise Figure

CZ8462 Related Products

	CZ8462	SM8462
Description	0 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN	0 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT
Gain	13 dB	13 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	400 MHz	400 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.2	2.2
Base Number Matches	1	1
