CLH1005B-27NK-S datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CLH1005B-27NK-S

CLH1005B-27NK-S: DescriptionGeneral Purpose Inductor, 0.027uH, 10%, 1 Element, Ceramic-Core, SMD, 0402, CHIP, 0402, ROHS COMPLIANT; CategoryPassive components inductor; File Size177KB，11 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric View All

CLH1005B-27NK-S Overview

General Purpose Inductor, 0.027uH, 10%, 1 Element, Ceramic-Core, SMD, 0402, CHIP, 0402, ROHS COMPLIANT

CLH1005B-27NK-S Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	0402
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	0402
structure	Chip
core material	CERAMIC
DC Resistance	1 Ω
Nominal inductance(L)	0.027 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CLH
Number of functions	1
Number of terminals	2
Package height	0.5 mm
Package length	1 mm
Package form	SMT
Package width	0.5 mm
method of packing	Bulk
Minimum quality factor (at nominal inductance)	8
Maximum rated current	300 A
self resonant frequency	1900 MHz
series	CLH
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

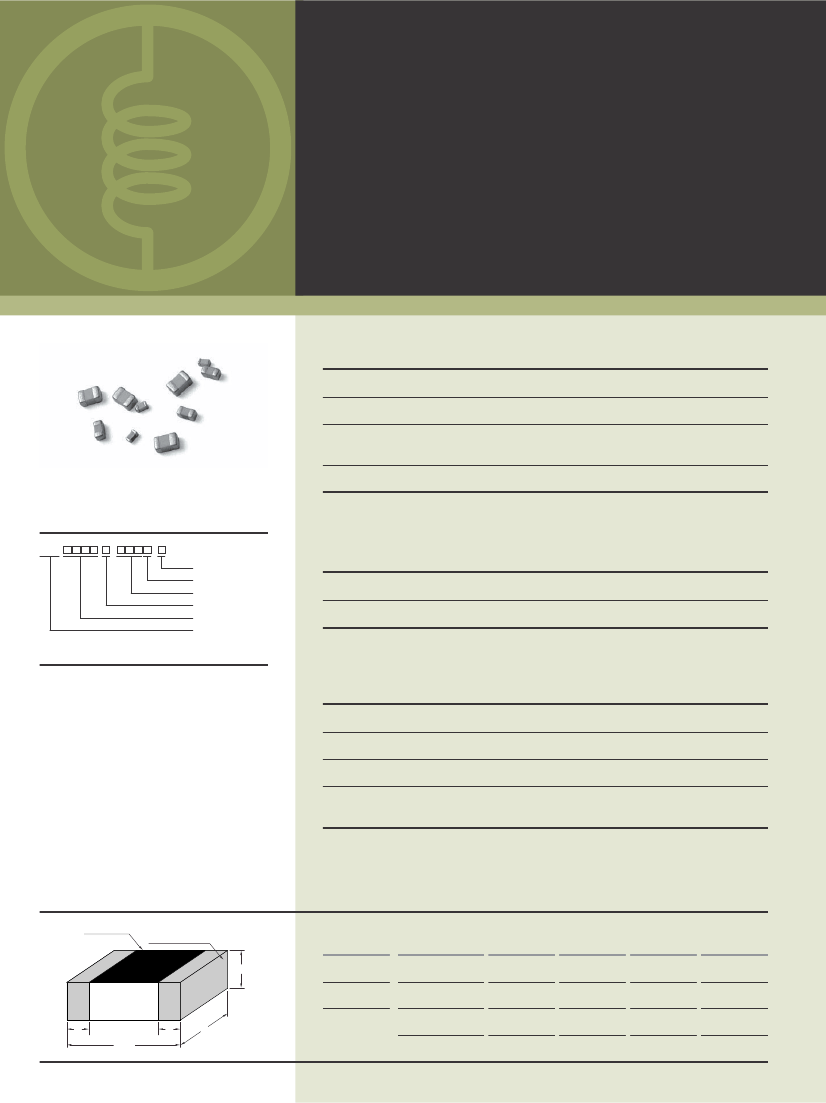

YAGEO CORPORATION

SMD INDUCTOR / BEADS

Multilayer Chip Inductors

High Frequency

CLH Series

APPLICATIONS

RF Resonance and Impedance Matching Circuit

RF and Wireless Communication

Information Technology Equipments, Computers, Telecommunications, Radar Detectors, Automotive

Electronics, Cellular Phones, Pagers, PDAs, Keyless Remote Systems.

Use in L-C Filter Configurations

PRODUCT IDENTIFICATION

CLH

International No.

Tolerance

Inductance

Packaging Style (*)

Dimensions

Product Symbol

OUTLINE

Yageo high frequency multilayer ceramic chip inductor is formed without wound wire.

Monolithic laminated structure.

* B : Bulk ; T : Tape and Reel

FEATURES

Excellent Q Factor and SRF Characteristic

Cost Effective

Small size of 1005/1608 is suitable for small portable equipment.

Supports Operating Frequency Bands up to 6GHz with Nominal Inductance Values from 1.0nH To

470nH

SHAPES AND DIMENSIONS

Dimensions : mm

Polarity Mark

Terminal Electrode

TYPE

INDUCTANCE A

RANGE

A11

< 180nH

180nH

1.00

1.60

2.00

0.10

0.15

0.20

CLH1005

CLH1608

0.50

0.80

1.25

0.10

0.15

0.20

0.50

0.80

0.90

1.20

0.10

0.15

0.20

0.30

0.25

0.30

0.50

0.10

0.20

0.30

CLH2012
