S-24H45IF10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> S-24H45IF10

S-24H45IF10: DescriptionNon-Volatile SRAM, 16X16, 300ns, CMOS, PDSO8, SOP-8; Categorystorage storage; File Size751KB，15 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

S-24H45IF10 Overview

Non-Volatile SRAM, 16X16, 300ns, CMOS, PDSO8, SOP-8

S-24H45IF10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ABLIC
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Maximum access time	300 ns
JESD-30 code	S-PDSO-G8
JESD-609 code	e0
length	5 mm
memory density	256 bit
Memory IC Type	NON-VOLATILE SRAM
memory width	16
Number of functions	1
Number of terminals	8
word count	16 words
character code	16
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	16X16
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	SQUARE
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.15 mm
Maximum standby current	0.000001 A
Maximum slew rate	0.01 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5 mm
Base Number Matches	1

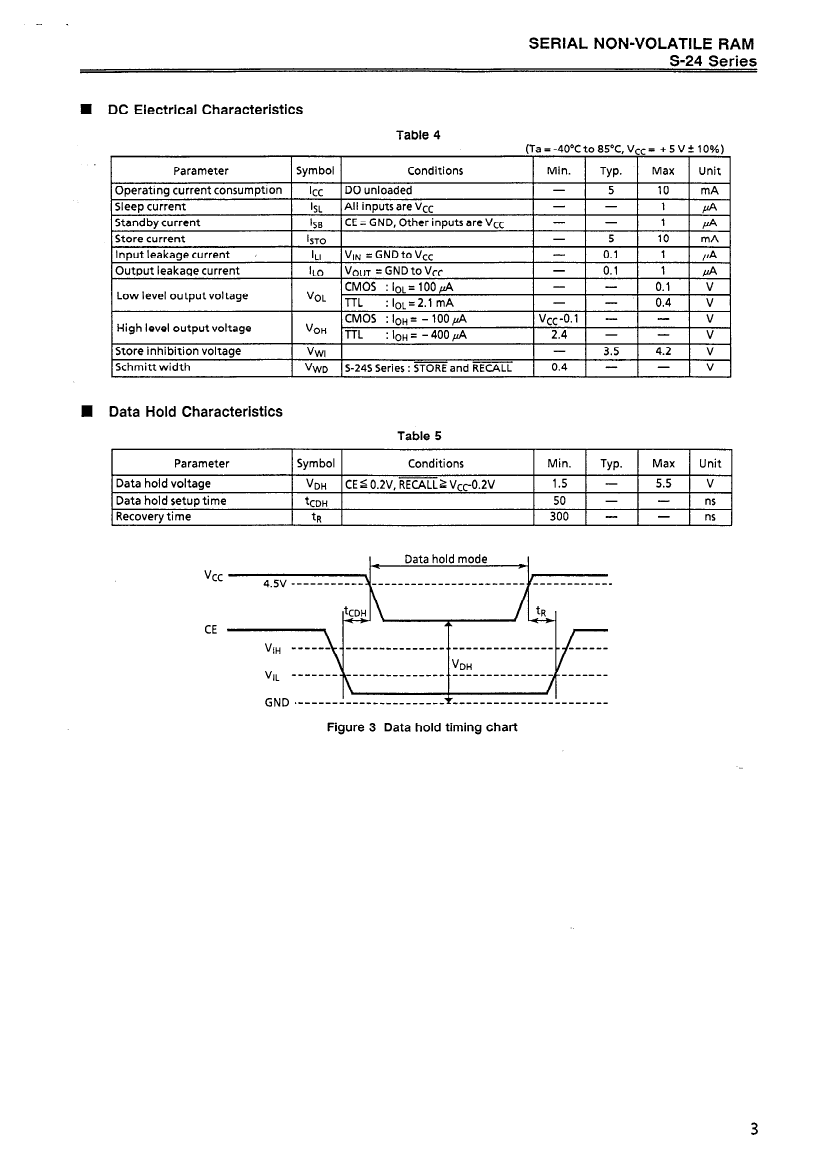

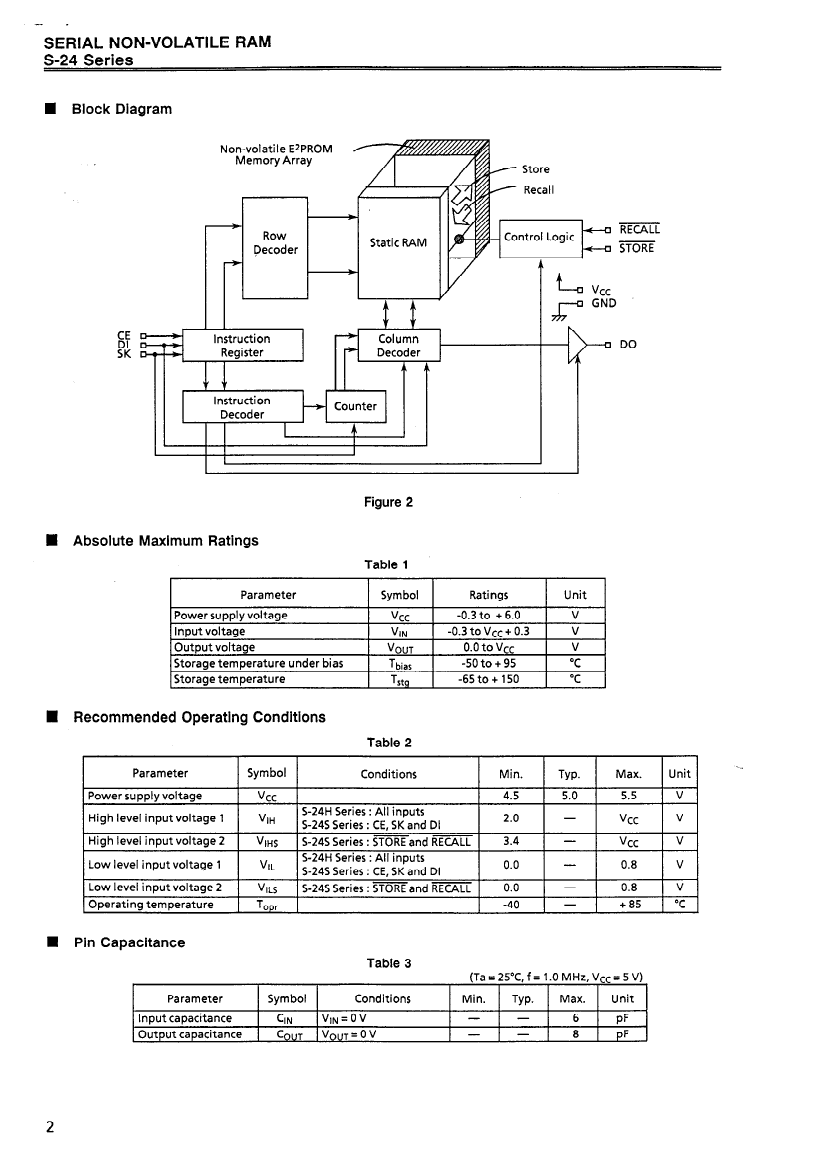

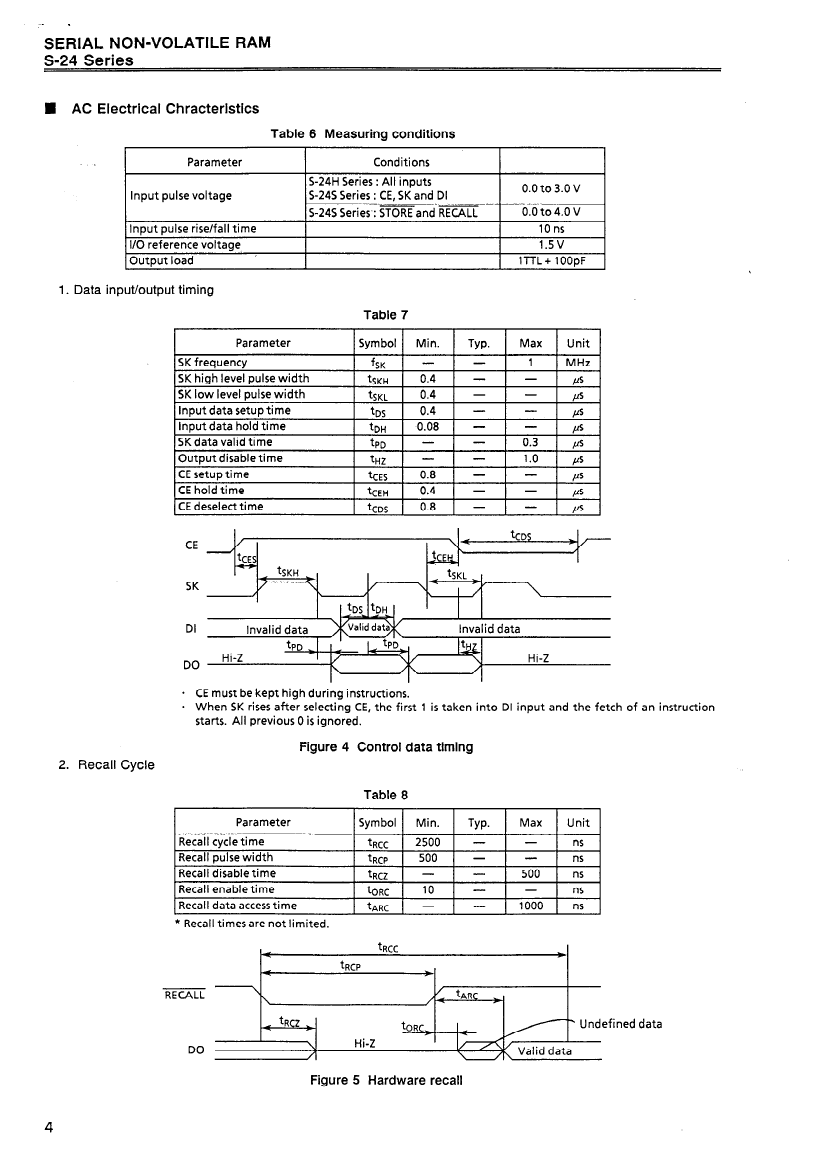

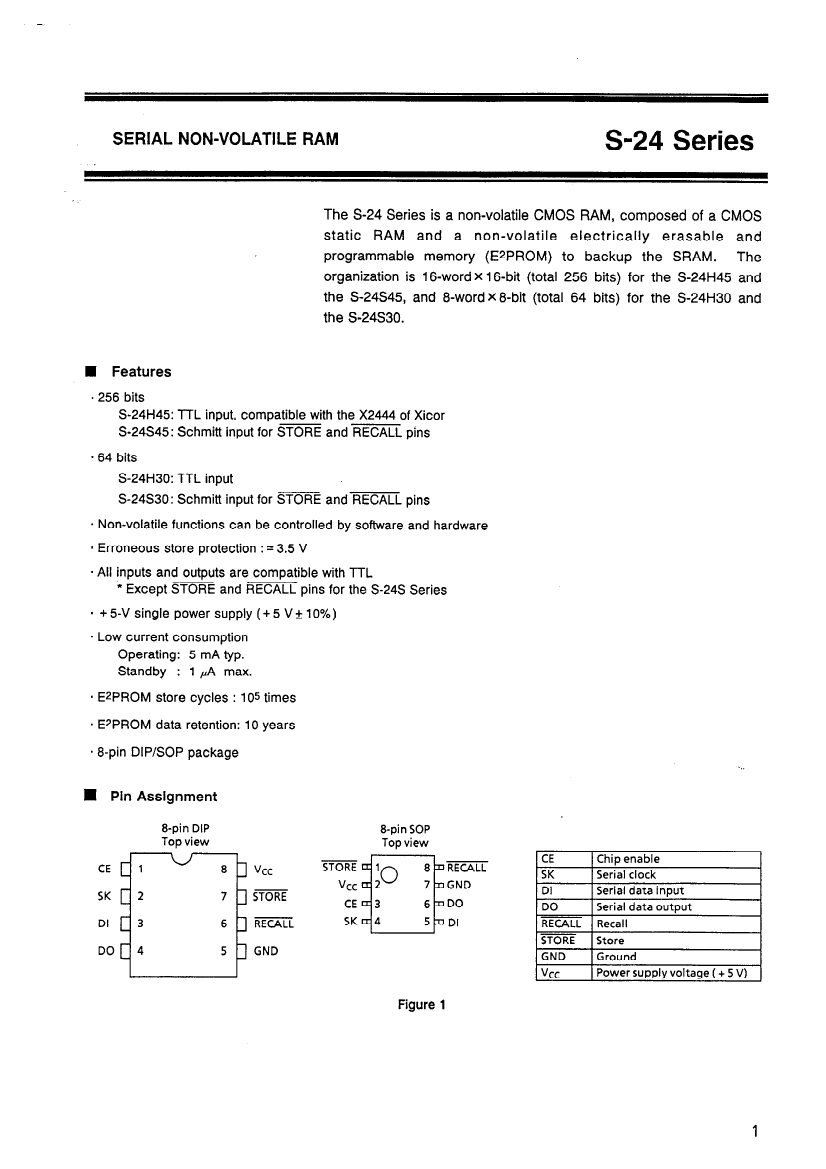

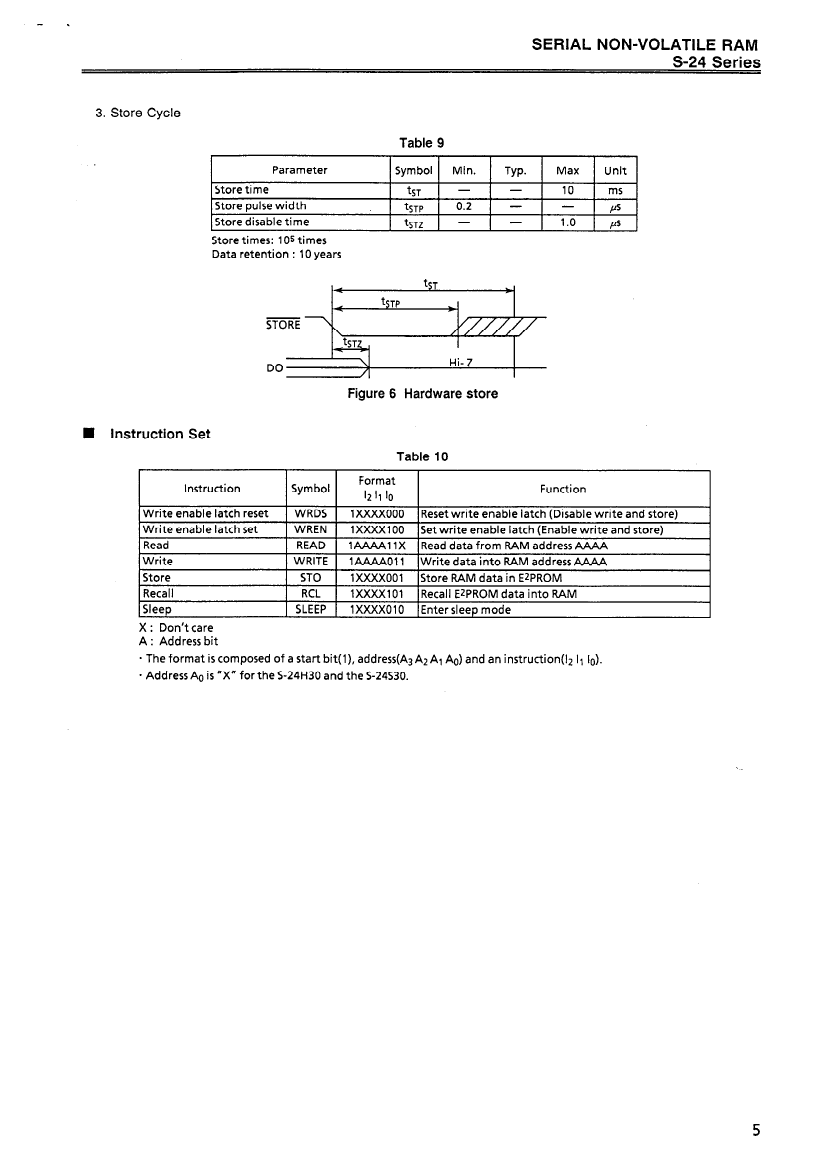

Preview

Download Datasheet

View All

S-24H45IF10 Related Products

	S-24H45IF10	S-24S45IF10	S-24H30I10
Description	Non-Volatile SRAM, 16X16, 300ns, CMOS, PDSO8, SOP-8	Non-Volatile SRAM, 16X16, 300ns, CMOS, PDSO8, SOP-8	Non-Volatile SRAM, 8X8, 300ns, CMOS, PDIP8, DIP-8
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	DIP
package instruction	SOP, SOP8,.25	SOP, SOP8,.25	DIP, DIP8,.3
Contacts	8	8	8
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Maximum access time	300 ns	300 ns	300 ns
JESD-30 code	S-PDSO-G8	S-PDSO-G8	R-PDIP-T8
JESD-609 code	e0	e0	e0
length	5 mm	5 mm	9.3 mm
memory density	256 bit	256 bit	64 bit
Memory IC Type	NON-VOLATILE SRAM	NON-VOLATILE SRAM	NON-VOLATILE SRAM
memory width	16	16	8
Number of functions	1	1	1
Number of terminals	8	8	8
word count	16 words	16 words	8 words
character code	16	16	8
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
organize	16X16	16X16	8X8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	DIP8,.3
Package shape	SQUARE	SQUARE	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Parallel/Serial	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.15 mm	2.15 mm	4.5 mm
Maximum standby current	0.000001 A	0.000001 A	0.000001 A
Maximum slew rate	0.01 mA	0.01 mA	0.01 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	5 mm	5 mm	7.62 mm
Base Number Matches	1	1	1
Maker	ABLIC	ABLIC	-
Is Samacsys	N	N	-
