SI4712 Overview

RF and Baseband Circuit, CMOS, QFN-20

SI4712 Parametric

Parameter Name	Attribute value
Parts packaging code	QFN
package instruction	QFN-20
Contacts	20
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	S-XQCC-N20
length	3 mm
Number of functions	1
Number of terminals	20
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Certification status	Not Qualified
Maximum seat height	0.6 mm
surface mount	YES
technology	CMOS
Telecom integrated circuit types	RF AND BASEBAND CIRCUIT
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
width	3 mm
Base Number Matches	1

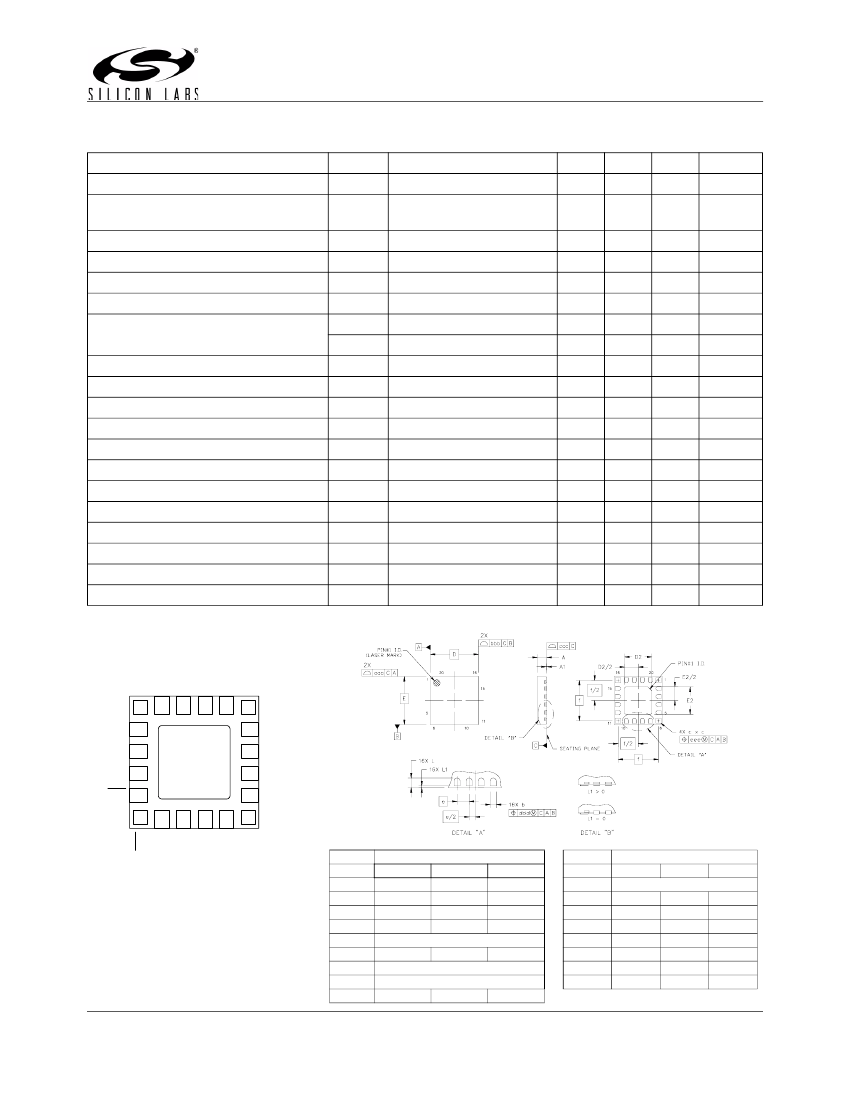

Preview

Download Datasheet

View All

Si4712/13

FM Radio Transmitter with Receive Power Scan

Description

The Si4712/13 is the industry's first 100% CMOS FM

radio transmitter with an integrated receiver to

measure receive signal strength. The device

leverages Silicon Labs’ highly successful and proven

Si4700/01 FM receiver, and offers unmatched

integration and performance allowing FM transmit to

be added to any portable device by using a single

chip. As with the Si4700/01, the Si4712/13 offers

industry leading size, performance, low power

consumption, and ease of use.

The Si4712/13’s digital integration reduces the

required external components of traditional offerings,

resulting in a solution requiring only an external

inductor and bypass capacitor, and PCB space of

approximately 15 mm

. High reliability in device

manufacturing, improved quality, easy design-in, and

software programmability are key advantages of the

Si4712/13.

The Si4713 supports the European Radio Data

System (RDS) and the US Radio Broadcast Data

System (RBDS) standards including all the symbol

encoding, block synchronization, and error correction

functions. Using this feature, the Si4713 enables

data such as artist name and song title to be

transmitted to an RDS/RBDS receiver.

Users are responsible for adjusting their system’s

radiated power levels to comply with local regulations

on RF transmission (FCC, ETSI, ARIB, etc.).

Features

Integrated receiver for receive power measurement

Worldwide FM band support

(76–108 MHz) for transmit

Requires only two external components

Frequency synthesizer with integrated VCO

Digital stereo modulator

Programmable pre-emphasis

(50/75 µs)

Analog/digital audio interface

Programmable reference clock

RDS/RBDS transmit encoder (Si4713 only)

PCB loop antenna support with self calibrated

capacitor tuning

Programmable transmit level

Programmable modulation

2.7 to 5.5 V supply voltage

Digital gain compression

Integrated LDO regulator

3 x 3 x 0.55 mm 20-pin QFN

Pb-free and RoHS Compliant

Applications

Cellular handsets/hands-free

MP3 players

Portable audio/video players

Wireless speakers/microphone

Satellite digital audio radios

Personal computers/notebooks

Si4712/13

PEAK

DETECT

DIGITAL

AUDIO

DSP

Ant

120 nH

DIN

DFS

DAC

TXO

RFGND

DAC

ADC

LIN

ADC

RIN

AFC

CONTROL

INTERFACE

GPO

RDS (Si4713)

VDD 2.7–5.5 V

LDO

GND

22 nF

FM Tuner

GPO3/

DCLK

GPO2/

INT

GPO1

RCLK

SDIO

VIO

RST

SCLK

SEN

4.3.08

SI4712 Related Products

	SI4712	SI4713
Description	RF and Baseband Circuit, CMOS, QFN-20	RF and Baseband Circuit, CMOS, QFN-20
Parts packaging code	QFN	QFN
package instruction	QFN-20	QFN-20
Contacts	20	20
Reach Compliance Code	unknown	unknown
JESD-30 code	S-XQCC-N20	S-XQCC-N20
length	3 mm	3 mm
Number of functions	1	1
Number of terminals	20	20
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	HVQCCN	HVQCCN
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Certification status	Not Qualified	Not Qualified
Maximum seat height	0.6 mm	0.6 mm
surface mount	YES	YES
technology	CMOS	CMOS
Telecom integrated circuit types	RF AND BASEBAND CIRCUIT	RF AND BASEBAND CIRCUIT
Terminal form	NO LEAD	NO LEAD
Terminal pitch	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD
width	3 mm	3 mm
Base Number Matches	1	1
