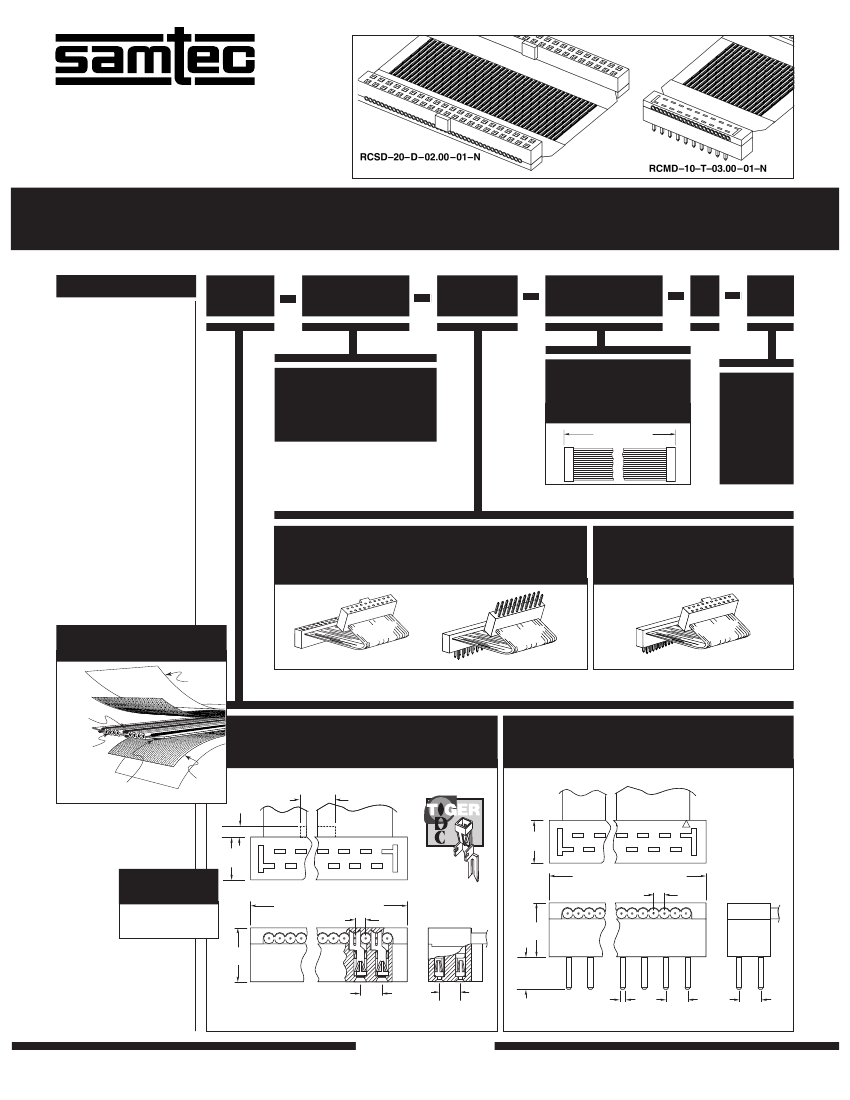

F-203
2mm SHIELDED/HIGH SPEED
SPECIFICATIONS
For complete specifications
see www.samtec.com?RCSD
or www.samtec.com?RCMD
Insulator Material:
Black Glass Filled Polyester
Terminal (RCMD):
Phospor Bronze
Contact (RCSD):
BeCu
Current Rating:
0.5A
Operating Temp Range:
-40°C to +105°C
Terminal Plating:
Sn over 50µ"
(1,27µm) Ni
Contact Plating:
30µ" (0,76µm) Au on contact
area; Sn on balance,
over 50µ" (1,27µm) Ni
Wire:
30 AWG
Made with Gore
RIBBON-AX
®
Cable
RCSD,
RCMD
TYPE
STRIP
NO. PINS
PER ROW
END
OPTION
OVERALL
LENGTH
01
N
–10, –20,
–22, –25
(Call for other sizes)
= Assembled Length
(02.00, 05.00 and 10.00.
Call for other sizes)
Assembled Length
in INCHES (±1/8")
Contact Samtec for other lengths
–“XX”
Mates with:
RCSD: TMM, TMMH, STMM,
MMT, TW, MTMM, EHT
RCMD: SMM, MMS
= Notch
Polarization
on socket
(Leave blank
for RCMD
without
Transfer End)
–N
–D
=Double End
–T
=Transfer End
(Requires RCMD)
CABLE
CROSS-SECTION
ePTFE
Dieletric
Ribbon
Cable
Signal
Conductors
Integrated
Drain Lines in
Contact with Foil Shield
Foil
Shield
(1,02)
.040
(3,17)
.125
PTFE
Jacket
= Socket Strip
RCSD
= Terminal Strip
RCMD
01
01
(4,00)
.157
(4,00)
.157
POLARIZING
KEY
Specify PK-07
for polarizing key.
(5,08)
.200
No. of Positions X (2,00) .0787
+ (4,00) .157
(1,00)
.0397
(5,08)
.200
No. of Positions x (2,00) .0787
+ (4,00) .158
(1,00)
.03937
Note:
RCSD & RCMD Series
assemblies are non-standard,
non-returnable.
RIBBON-AX is a registered
trademark of W.L. Gore
Associates
(3,05)
.120
(2,00)
.0787
(2,00)
.0787
(0,50)
.020
SQ
(2,00)
.0787
(2,00)
.0787
