PR39MF22NIPF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PR39MF22NIPF

PR39MF22NIPF: DescriptionTrigger Output SSR, 1-Channel, 4000V Isolation, LEAD FREE, PLASTIC, SMT, DIP-8; CategoryLED optoelectronic/LED photoelectric; File Size885KB，15 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/; Environmental Compliance

Download Datasheet Parametric Compare View All

PR39MF22NIPF Overview

Trigger Output SSR, 1-Channel, 4000V Isolation, LEAD FREE, PLASTIC, SMT, DIP-8

PR39MF22NIPF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE, PLASTIC, SMT, DIP-8
Reach Compliance Code	unknown
Is Samacsys	N
Other features	UL RECOGNIZED, HIGH RELIABILITY, WITH ZERO CROSSOVER CIRCUIT
Configuration	SINGLE
Maximum forward current	0.05 A
Maximum insulation voltage	4000 V
JESD-609 code	e6
Number of components	1
Maximum on-state current	0.9 A
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Terminal surface	Tin/Bismuth (Sn/Bi)
Base Number Matches	1

Preview

Download Datasheet

View All

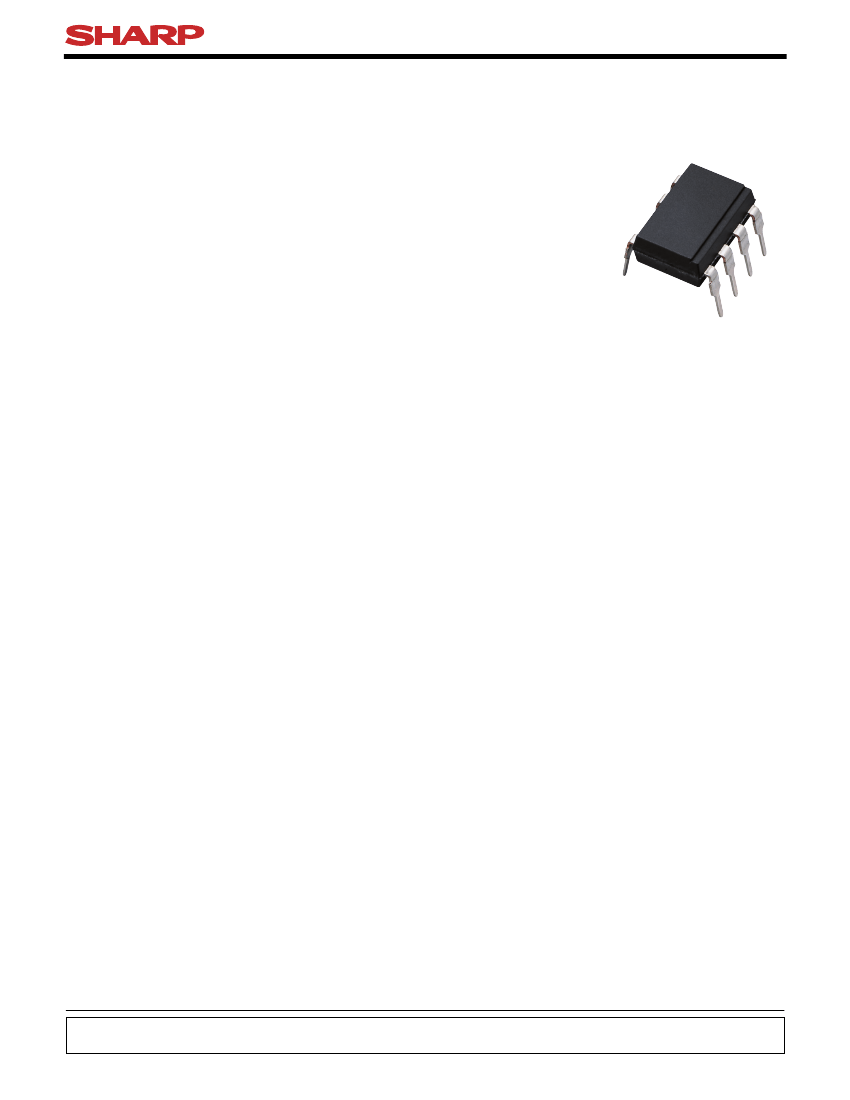

PR29MF21NSZ Series

PR39MF2xNSZ Series

PR29MF21NSZ Series

PR39MF2xNSZ Series

∗

(rms)≤0.9A, Zero Cross type

DIP 8pin

Triac output SSR

Non-zero cross type is also available.

(PR29MF1xNSZ

Series/PR39MF1xNSZ Series)

■

Description

PR29MF21NSZ Series

and

PR39MF2xNSZ Series

Solid State Relays (SSR) are an integration of an

infrared emitting diode (IRED), a Phototriac Detector

and a main output Triac. These devices are ideally

suited for controlling high voltage AC loads with solid

state reliability while providing 4.0kV isolation

iso

(rms)) from input to output.

■

Agency approvals/Compliance

1. Recognized by UL508, file No. E94758 (as model No.

R29MF2/R39MF2)

2. Approved by CSA 22.2 No.14, file No. LR63705 (as

model No.

R29MF2/R39MF2)

3. Optionary available VDE approved

(∗)

(DIN EN 60747-5-

2), file No. 40008898 (only for

PR39MF2xNSZ Series

as model No.

R39MF2)

4. Package resin : UL flammability grade (94V-0)

(∗)

■

Features

1. Output current, I

(rms)≤0.9A

2. Zero crossing functionary (V

: MAX. 35V)

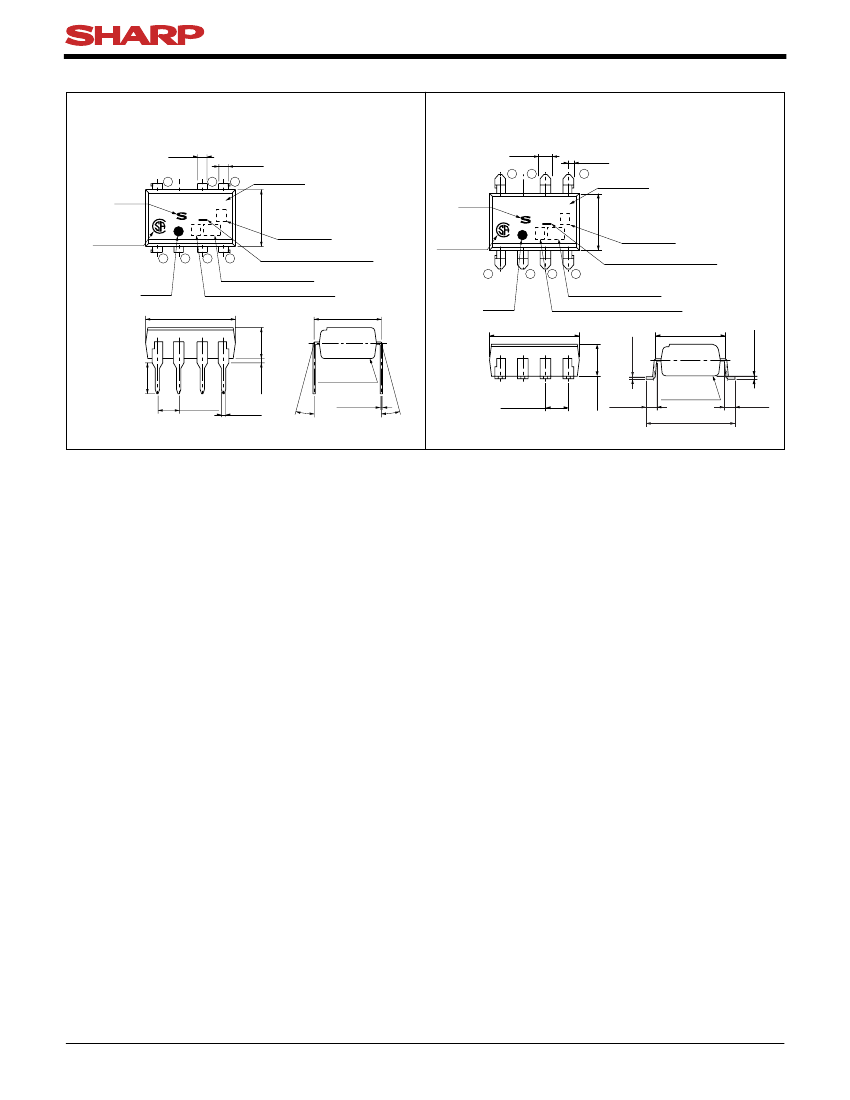

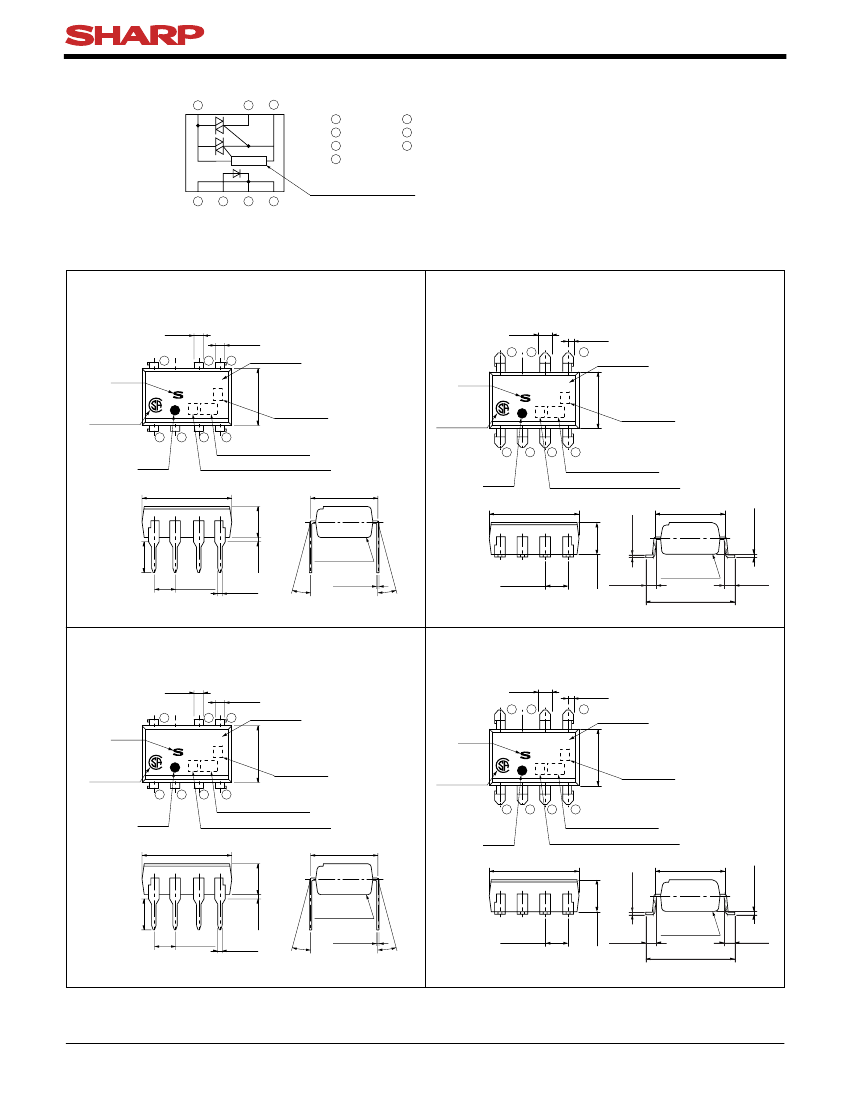

3. 8 pin DIP package (SMT gullwing also available)

4. High repetitive peak off-state voltage

DRM

: 600V,

PR39MF2xNSZ Series)

DRM

: 400V,

PR29MF21NSZ Series)

5. I

ranks available (see Model Line-up in this

datasheet)

6. Superior noise immunity (dV/dt : MIN. 100V/µs)

7. Response time, t

: MAX. 50µs

High isolation voltage between input and output

iso

(rms) : 4.0kV)

DIN EN60747-5-2 : successor standard of DIN VDE0884.

Up to Date code "RD" (December 2003), approval of DIN

VDE0884.

From Date code "S1" (January 2004), approval of DIN

EN60747-5-2.

■

Applications

1. Isolated interface between high voltage AC devices

and lower voltage DC control circuitry.

2. Switching motors, fans, heaters, solenoids, and

valves.

3. Power control in applications such as lighting and

temperature control equipment.

Notice The content of data sheet is subject to change without prior notice.

In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP

devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.

Sheet No.: D4-A00701FEN

Date Mar. 31. 2004

PR39MF22NIPF Related Products

	PR39MF22NIPF	PR29MF21NIPF	PR39MF22YSZF
Description	Trigger Output SSR, 1-Channel, 4000V Isolation, LEAD FREE, PLASTIC, SMT, DIP-8	Trigger Output SSR, 1-Channel, 4000V Isolation, LEAD FREE, PLASTIC, SMT, DIP-8	Trigger Output SSR, 1-Channel, 4000V Isolation, LEAD FREE, PLASTIC, DIP-8
Is it Rohs certified?	conform to	conform to	conform to
package instruction	LEAD FREE, PLASTIC, SMT, DIP-8	LEAD FREE, PLASTIC, SMT, DIP-8	LEAD FREE, PLASTIC, DIP-8
Reach Compliance Code	unknown	unknown	unknown
Other features	UL RECOGNIZED, HIGH RELIABILITY, WITH ZERO CROSSOVER CIRCUIT	UL RECOGNIZED, HIGH RELIABILITY, WITH ZERO CROSSOVER CIRCUIT	UL RECOGNIZED, VDE APPROVED, HIGH RELIABILITY, WITH ZERO CROSSOVER CIRCUIT
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	4000 V	4000 V	4000 V
Number of components	1	1	1
Maximum on-state current	0.9 A	0.9 A	0.9 A
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
Optoelectronic device types	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR
Base Number Matches	1	1	1
Is Samacsys	N	N	-
JESD-609 code	e6	e6	-
Terminal surface	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	-
