BK8/AGC-10-B-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK8/AGC-10-B-R

BK8/AGC-10-B-R: DescriptionElectric Fuse, Fast Blow, 10A, 200A (IR),; CategoryCircuit protection Circuit protection; File Size159KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric View All

BK8/AGC-10-B-R Overview

Electric Fuse, Fast Blow, 10A, 200A (IR),

BK8/AGC-10-B-R Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Is Samacsys	N
Fusing characteristics	FAST
body height	31.75 mm
Body length or diameter	6.35 mm
Circuit protection type	Electric Fuse
physical size	6.35mm x 31.75mm
Pre-discharge rating	0.492 A2/s
Rated breaking capacity	200 A
Rated current	10 A
Rated voltage	250 V
Guideline	CSA, UL
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

1/4" x 1-1/4" Fuses

AGC Series, Fast Acting, Glass Tube

Description

• Fast-acting, glass tube

• Optional axial leads available

• 1/4 x 1-1/4 (6.3mm x 32mm) physical size

• Glass tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

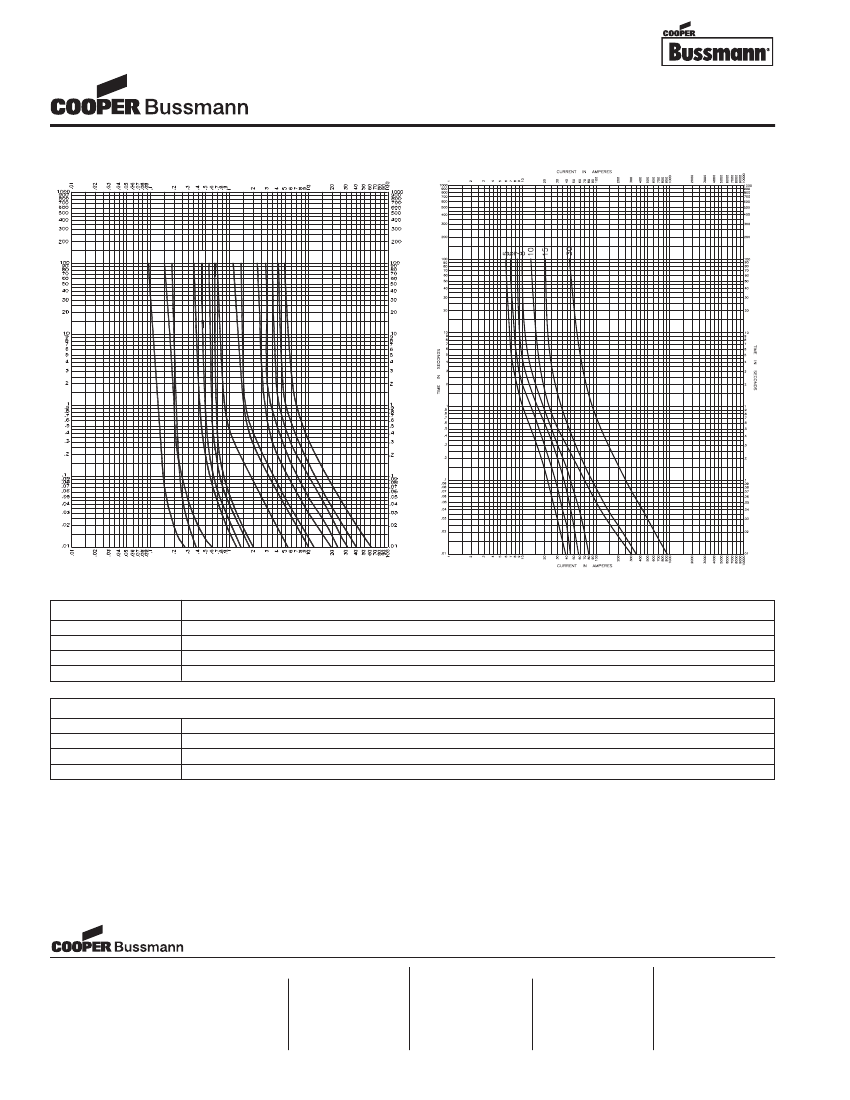

ELECTRICAL CHARACTERISTICS

% of Amp Rating

Opening Time

100%

None

135%

60 Minutes Maximum

200%

120 Seconds Maximum

RoHS

2002/95/EC

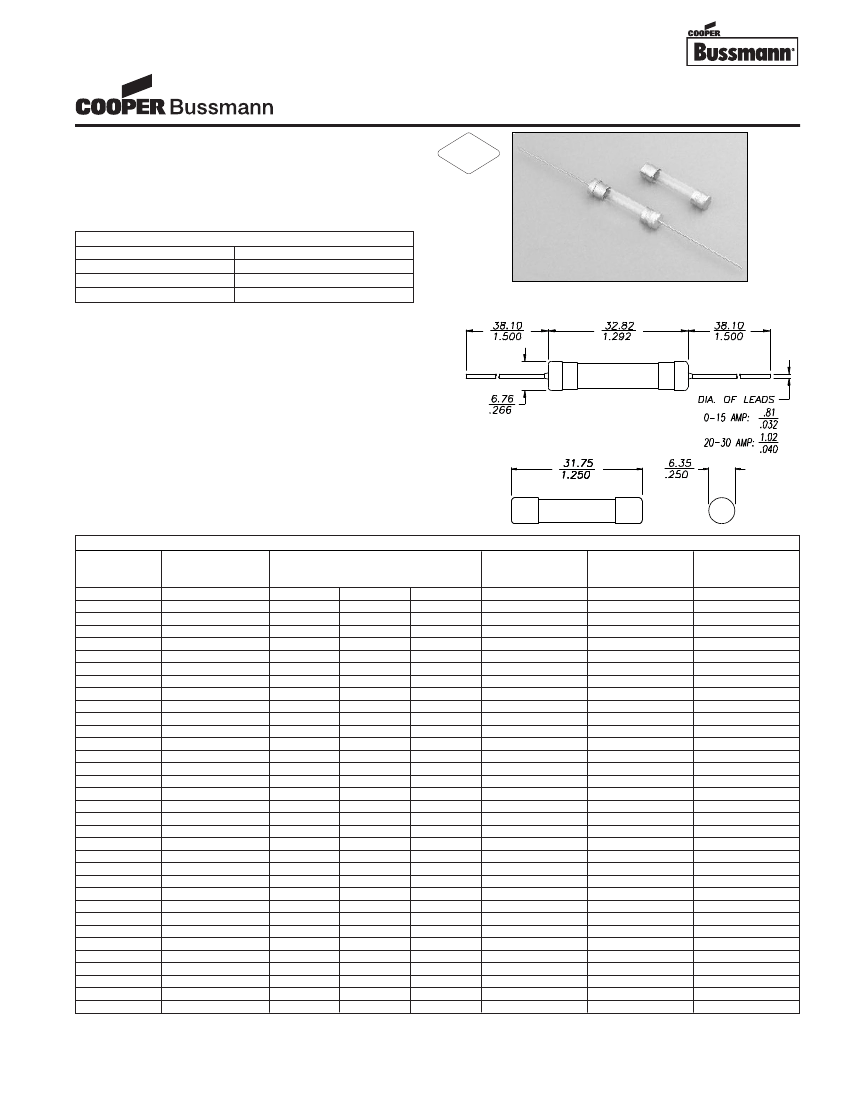

Dimensions

(

⁄

)

Drawing Not to Scale

Agency Information

• UL Listed Card: AGC 1/500-10

• UL Recognition Card: AGC 11-45

• CSA Component Acceptance Card (Class No. 1422 30)

• CSA Certification Card (Class No. 1422 01)

Environmental Data

• Shock: 1/100A thru 3/4A – MIL-STD-202,

Method 213, Test Condition I; 1A thru 30A –

MIL-STD-202, Method 207, (HI Shock)

• Vibration: 1/100A thru 30A – MIL-STD-202,

Method 204, Test Condition A (Except 5g, 500HZ)

Ordering

• Specify packaging, product, and option code

Product Code

AGC-1/20

AGC-1/16

AGC-1/10

AGC-1/8

AGC-3/16

AGC-2/10

AGC-1/4

AGC-3/10

AGC-3/8

AGC-1/2

AGC-3/4

AGC-1

AGC-1-1/4

AGC-1-1/2

AGC-2

AGC-2-1/4

AGC-2-1/2

AGC-3

AGC-4

AGC-5

AGC-6

AGC-7

AGC-7-1/2

AGC-8

AGC-9

AGC-10

AGC-12

AGC-14

AGC-15

AGC-20

AGC-25

AGC-30

AGC-35

AGC-40

Voltage

Rating

250V

32V

250V

35A

100A

200A

AC Interrupting

Rating

125V

10000A

SPECIFICATIONS

32V

1000A

70A

80A

Typical DC Cold

Resistance**

(ohms)

4.500

29.000

12.565

6.800

4.900

3.360

2.300

1.670

1.203

0.615

0.312

0.190

0.145

0.115

0.078

0.067

0.057

0.045

0.030

0.024

0.020

0.017

0.0146

0.014

0.012

0.008

0.0070

0.0062

0.006

0.004

0.003

0.002

0.0014

0.0019

Typical

Melting I

t†

0.00773

0.000181

0.000787

0.00131

0.00637

0.00435

0.0148

0.0208

0.0321

0.269

0.815

1.615

0.018

0.0149

0.00509

0.00588

0.00879

0.0167

0.0305

0.045

0.071

0.105

0.152

0.21

0.492

0.566

1.438

2.109

3.807

Typical

Voltage

Drop‡

0.67

10.41

6.00

4.67

4.12

4.51

0.89

2.88

4.59

0.59

0.37

0.31

0.35

0.27

0.28

0.26

0.31

0.25

0.22

0.23

0.19

0.18

0.20

0.14

0.12

0.11

0.12

** DC Cold Resistance (Measured at

≤10%

of rated current)

† Typical Melting I

t (A

Sec) (I

t was measured at listed interrupting rating and rated voltage.)

‡ Typical Voltage Drop (Voltage drop was measured at 25°C ambient temperature at rated current)
