2SC1972 datasheet, PDF - EEWORLD Datasheet

2SC1972: DescriptionNPN EPITAXIAL PLANAR TYPE(for RF power amplifiers on VHF band Mobile radio applications); CategoryDiscrete semiconductor The transistor; File Size118KB，3 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

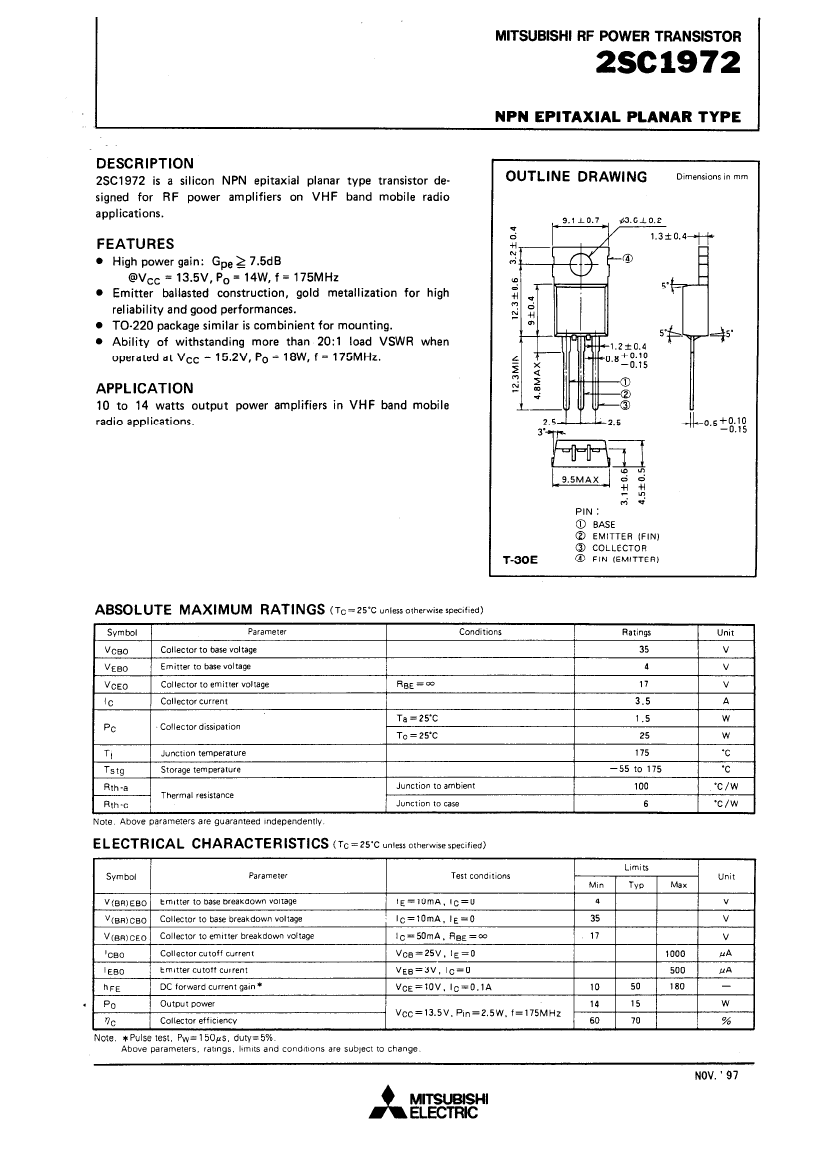

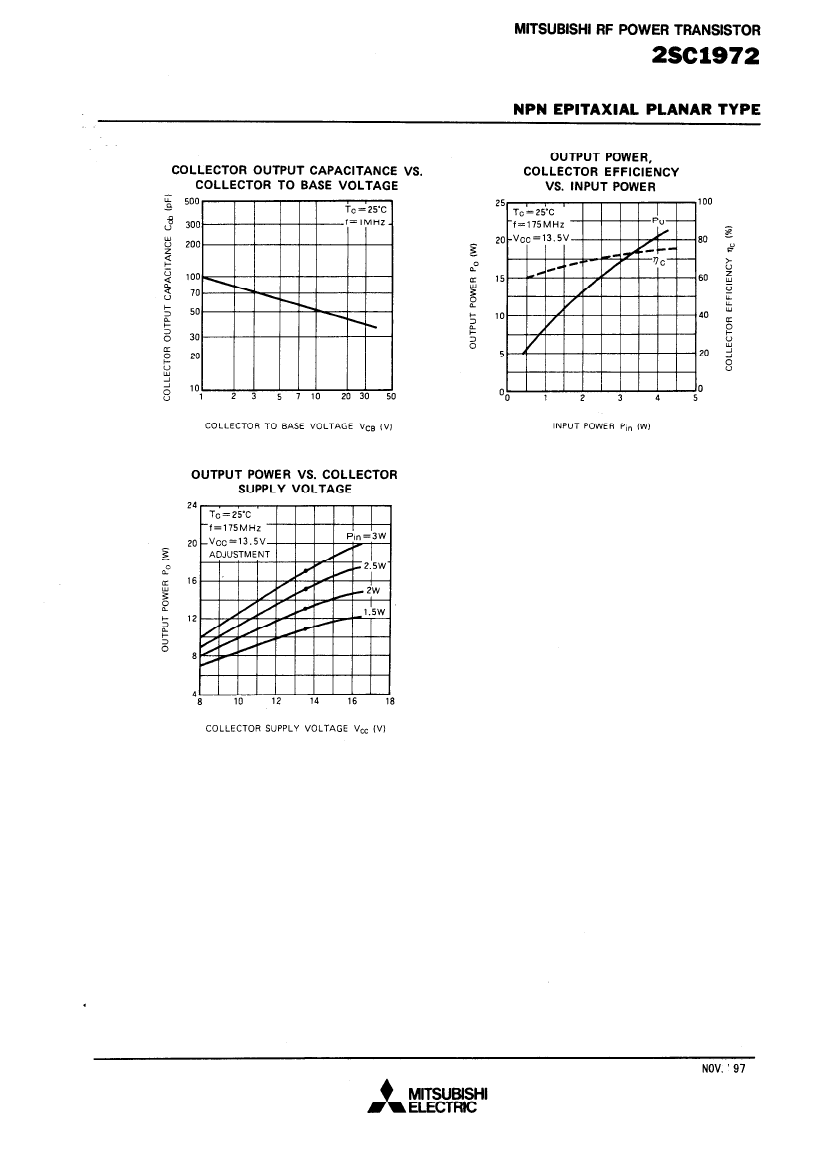

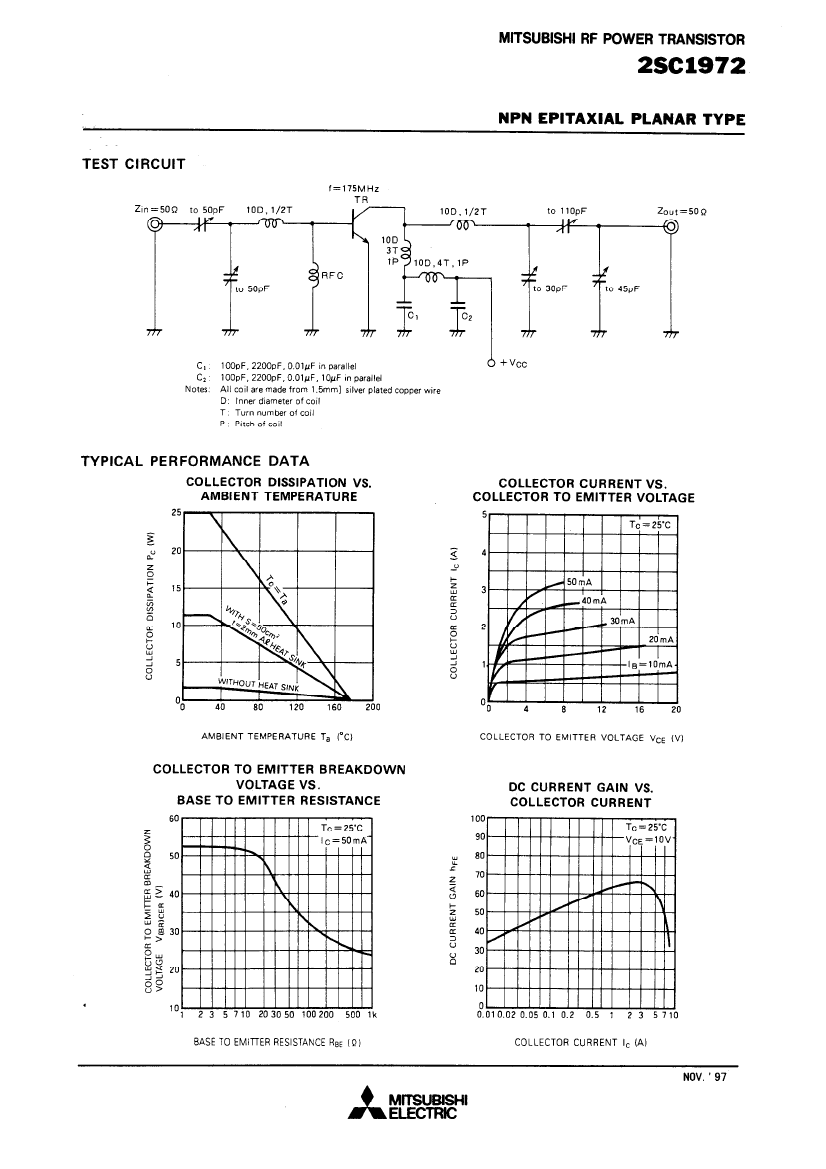

2SC1972 Overview

NPN EPITAXIAL PLANAR TYPE(for RF power amplifiers on VHF band Mobile radio applications)

Parameter Name	Attribute value
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	EMITTER
Maximum collector current (IC)	3.5 A
Collector-emitter maximum voltage	17 V
Configuration	SINGLE
Minimum DC current gain (hFE)	10
highest frequency band	VERY HIGH FREQUENCY BAND
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power consumption environment	25 W
Maximum power dissipation(Abs)	1.5 W
Minimum power gain (Gp)	7.5 dB
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Base Number Matches	1

	2SC1972	SC1972
Description	NPN EPITAXIAL PLANAR TYPE(for RF power amplifiers on VHF band Mobile radio applications)	NPN EPITAXIAL PLANAR TYPE(for RF power amplifiers on VHF band Mobile radio applications)
