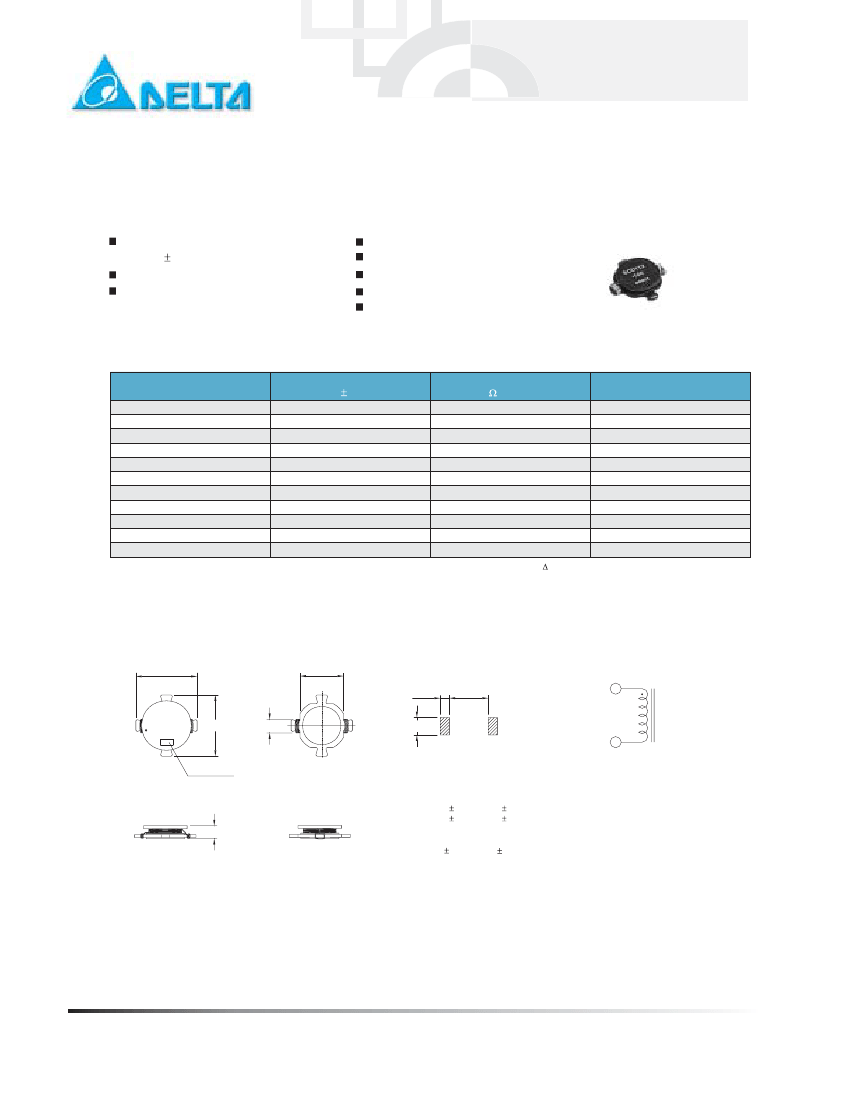

Power Inductor
SCD112 TYPE
FEATURES
Tolerance of inductance
1~47uH 20%
Low profile: 2.2mm (Max)
Suitable for SMD automachine
& reflow soldering
SMD TYPE
APPLICATIONS
Mobile phones
Digital cameras
Battery powered equipment
Notebook computers
PC cards
AT 25
o
C: 100KHz, 0.1V
Model
SCD112-1R0
SCD112-1R5
SCD112-2R2
SCD112-3R3
SCD112-4R7
SCD112-6R8
SCD112-100
SCD112-150
SCD112-220
SCD112-330
SCD112-470
Inductance
(uH 20%)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
DCR
( ) MAX
0.020
0.024
0.032
0.056
0.081
0.115
0.150
0.220
0.310
0.500
0.840
o
Isat
(Amperes)
6.0
4.7
3.8
3.3
2.6
2.1
1.8
1.4
1.2
1.0
0.9
T=45 C, depending on whichever is lower.
Note. Isat indicates the value of current when the inductance is 15% lower than its initial value or temperature rising
MECHANICAL CONSTRUCTION
A
E
2.1
SCD112
-***
SCHEMATICS
7.0
1
B
D
3.5
2
SUGGESTED PCB LAYOUT
DATE CODE
BOTTOM VIEW
C
UNIT : mm / inch
A = 10.60 0.254 / 0.417 0.010
B = 10.60 0.254 / 0.417 0.010
C = 2.20 / 0.087 MAX
D = 2.50 / 0.098 (REF)
E = 7.40 0.127 / 0.291 0.005
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT CPBG)
252, SHANG YING ROAD, KUEI SAN, TAOYUAN HSIEN 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com/products/networking/power.htm
A-10
