SN74LS126ADR2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74LS126ADR2

SN74LS126ADR2: DescriptionIC,BUFFER/DRIVER,SINGLE,4-BIT,LS-TTL,SOP,14PIN,PLASTIC; Categorylogic logic; File Size118KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS126ADR2 Overview

IC,BUFFER/DRIVER,SINGLE,4-BIT,LS-TTL,SOP,14PIN,PLASTIC

SN74LS126ADR2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknown
Is Samacsys	N
Control type	ENABLE HIGH
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power supply	5 V
Maximum supply current (ICC)	22 mA
Prop。Delay @ Nom-Sup	18 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

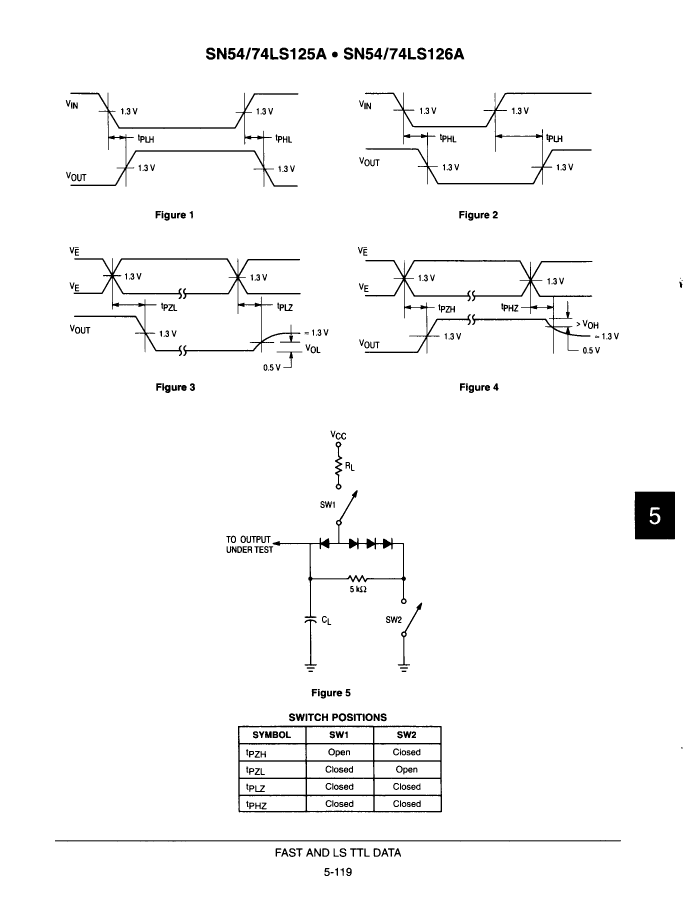

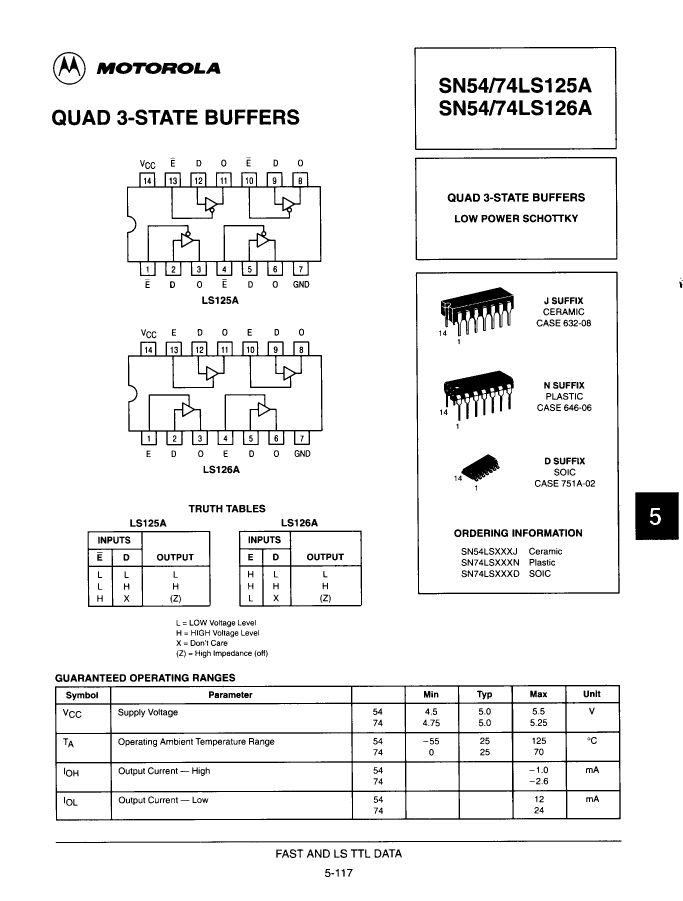

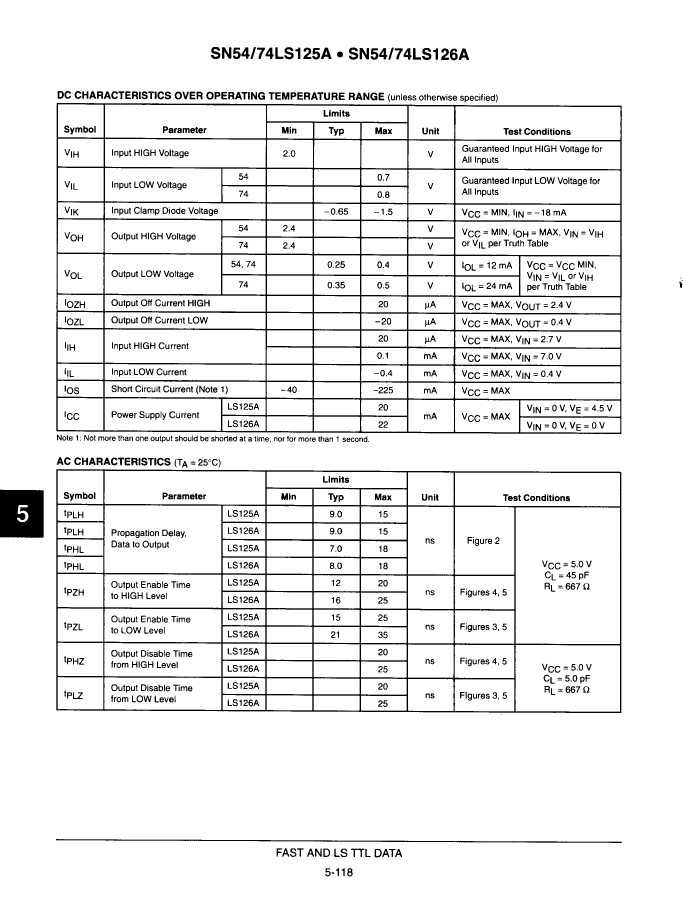

Preview

Download Datasheet

View All

SN74LS126ADR2 Related Products

	SN74LS126ADR2	54LS125A/BCBJC	54LS125A/BDAJC	SN74LS126AJD	SN74LS125ANDS	SN74LS125AJD	AER23-23-12CB/S	SN74LS126ANDS	SN74LS126AJ
Description	IC,BUFFER/DRIVER,SINGLE,4-BIT,LS-TTL,SOP,14PIN,PLASTIC	IC,BUFFER/DRIVER,SINGLE,4-BIT,LS-TTL,DIP,14PIN,CERAMIC	IC,BUFFER/DRIVER,SINGLE,4-BIT,LS-TTL,FP,14PIN,CERAMIC	IC,BUFFER/DRIVER,SINGLE,4-BIT,LS-TTL,DIP,14PIN,CERAMIC	IC,BUFFER/DRIVER,SINGLE,4-BIT,LS-TTL,DIP,14PIN,PLASTIC	IC,BUFFER/DRIVER,SINGLE,4-BIT,LS-TTL,DIP,14PIN,CERAMIC	AER Forged Heat Sinks	IC,BUFFER/DRIVER,SINGLE,4-BIT,LS-TTL,DIP,14PIN,PLASTIC	IC,BUFFER/DRIVER,SINGLE,4-BIT,LS-TTL,DIP,14PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible
package instruction	SOP, SOP14,.25	DIP, DIP14,.3	DFP, FL14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	-	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	-	unknown	unknown
Control type	ENABLE HIGH	ENABLE LOW	ENABLE LOW	ENABLE HIGH	ENABLE LOW	ENABLE LOW	-	ENABLE HIGH	ENABLE HIGH
JESD-30 code	R-PDSO-G14	R-XDIP-T14	R-XDFP-F14	R-XDIP-T14	R-PDIP-T14	R-XDIP-T14	-	R-PDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	-	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	-	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.012 A	0.012 A	0.024 A	0.024 A	0.024 A	-	0.024 A	0.024 A
Number of digits	4	4	4	4	4	4	-	4	4
Number of functions	1	1	1	1	1	1	-	1	1
Number of terminals	14	14	14	14	14	14	-	14	14
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C	-	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	-	TRUE	TRUE
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	-	PLASTIC/EPOXY	CERAMIC
encapsulated code	SOP	DIP	DFP	DIP	DIP	DIP	-	DIP	DIP
Encapsulate equivalent code	SOP14,.25	DIP14,.3	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3	-	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V	5 V
surface mount	YES	NO	YES	NO	NO	NO	-	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	-	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL
Maker	-	NXP	NXP	NXP	NXP	NXP	-	NXP	NXP
