TRR03EZPF1804

Description
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP
CategoryPassive components    The resistor
File Size91KB,5 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

TRR03EZPF1804 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP

TRR03EZPF1804 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionSMT, 0603
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresANTI-SULFUR
structureChip
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height0.45 mm
Package length1.6 mm
Package shapeRECTANGULAR PACKAGE
Package formSMT
Package width0.8 mm
method of packingTR, PAPER, 7 INCH
Rated power dissipation(P)0.1 W
Rated temperature70 °C
GuidelineTS 16949
resistance1800000 Ω
Resistor typeFIXED RESISTOR
size code0603
surface mountYES
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient100 ppm/°C
Terminal surfaceTin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Tolerance1%
Operating Voltage50 V
Base Number Matches1

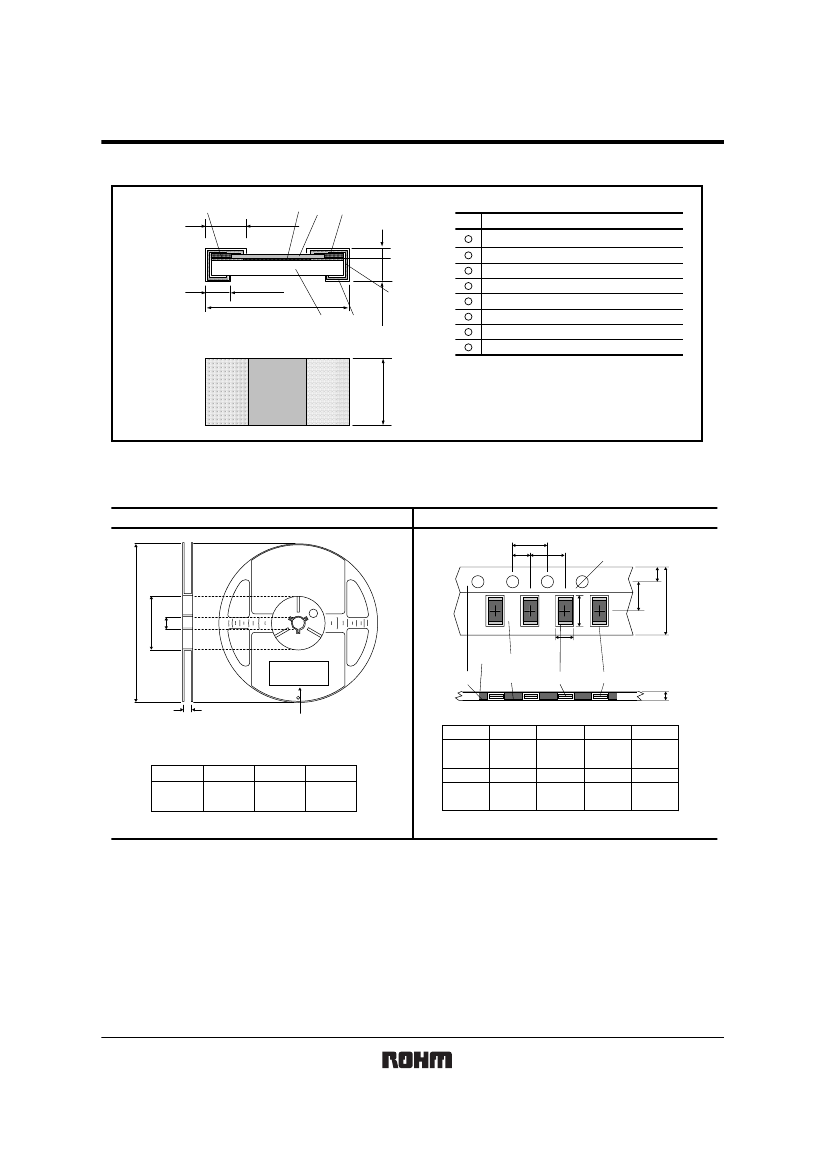

TRR03
Resistors
Sulfur Tolerant Chip Resistors
TRR03
(0603 size)
Features
1) Unique protect materials prevent from silver sulfide occurrence under sulfur environment.
2) Highly recommended for automotive, industrial and Power supply applications under sulfur environment.
3) Realize the good cost performance not like the Au terminal components from other suppliers.
4) ROHM resistors have approved ISO9001 / ISO/TS 16949 certification.
Design and specifications are subject to change without notice. Carefully check the specification sheet supplied with the
product before using or ordering it.
Ratings
Item
Rated power
Conditions
Power must be derated according to the power derating curve in
Figure 1 when ambient temperature exceeds 70°C.
100
80
POWER LOAD (%)
Specifications
0.10W (1 / 10W)
at 70°C
60
40
20
0
−55
0
70
100
155
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage
The voltage rating is calculated by the following equation.
If the value obtained exceeds the limiting element voltage,
the voltage rating is equal to the maximum operating voltage.
E=
Nominal resistance
Operating temperature
P×R
E: Rated voltage (V) P: Rated power (W)
R: Nominal resistance (Ω)
Limiting element voltage
50V
See Table 1.
−55°C
to
+155°C
Jumper type
Resistance
Rated current
Max. 50mΩ
1A
Table 1
Resistance tolerance
J (±5%)
F (±1%)
Resistance range
(Ω)
1.0 to 9.1
10 to 10M
10 to 10M
(E24)
(E24)
(E24)
Resistance temperature coefficient
(ppm/°C)
±400
±200
±100
Operating temperature
−55°C
to
+155°C
Before using components in circuits where they will be exposed to transients such as pulse loads (short–duration, high– level loads), be certain to evaluate the
component in the mounted state. In addition, the reliability and performance of this component cannot be guaranteed if it is used with a steady state voltage that
is greater than its rated voltage.
Rev.A
1/4
