NAWT221M16V8X10.5LBF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NAWT221M16V8X10.5LBF

NAWT221M16V8X10.5LBF: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 3533, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size98KB，3 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NAWT221M16V8X10.5LBF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 3533, CHIP, ROHS COMPLIANT

NAWT221M16V8X10.5LBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
high	8 mm
JESD-609 code	e6
leakage current	0.0352 mA
length	9 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	185 mA
size code	3533
surface mount	YES
Delta tangent	0.24
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT
width	8.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

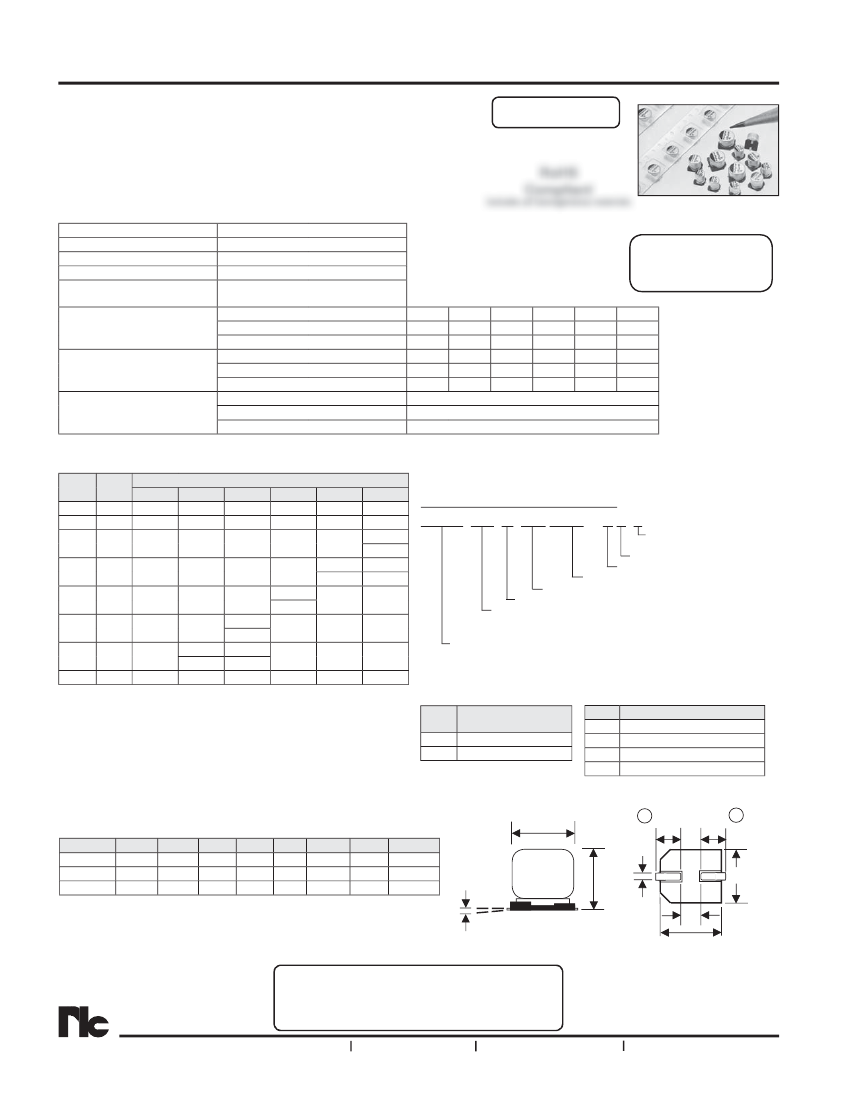

Surface Mount Aluminum Electrolytic Capacitors

FEATURES

•

CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING

SUIT FOR HIGH TEMPERATURE REFLOW SOLDERING (UP TO 260°C)

2,000 HOUR LOAD LIFE @ +105°C

DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING

SAC

Alloy Compatible

230°C ~ 260°C

NAWT Series

includes all homogeneous materials

RoHS

Compliant

CHARACTERISTICS

Rated Voltage Rating

Rated Capacitance Range

Operating Temp. Range

Capacitance Tolerance

Max. Leakage Current

After 2 Miuntes @ 20°C

Tan

@ 120Hz/20°C

Low Temperature

Stability

Impedance Ratio @ 120Hz

Load Life Test @ 105°C

All Case Sizes = 2,000 hours

6.3 ~ 50Vdc

22 ~ 1,000μF

-55 ~ +105°C

±20% (M)

0.01CV or 3μA

whichever is greater

W.V. (Vdc)

S.V. (Vdc)

6.3x8mm & 8~10mm diameter

W.V. (Vdc)

Z-25°C/Z+20°C

Z-40°C/Z+20°C

Capacitance Change

Tan

Leakage Current

*See Part Number System for Details

P N b S

f D il

LOW ESR COMPONENT

LIQUID ELECTROLYTE

For Performance Data

see www.LowESR.com

0.26

0.24

0.18

0.14

0.12

Within ±25% of initial measured value

Less than ±200% of the speciﬁed maximum value

Less than the speciﬁed maximum value

6.3

8.0

0.35

6.3

STANDARD VALUES AND CASE SIZES (mm)

Cap.

(μF)

100

220

330

470

1000

Code

220

330

470

101

221

331

471

102

6.3x8

8x10.5

6.3x8

10x10.5

8x10.5 8x10.5

6.3x8 8x10.5

10x10.5 10x10.5

8x10.5

6.3x8

8x10.5

10x10.5

8x10.5

10x10.5

8x10.5 8x10.5

8x10.5

10x10.5

10x10.5 10x10.5

10x10.5

6.3

Working Voltage (Vdc)

6.3x8

PART NUMBER SYSTEM

NAWT 101 M 16V 6.3x8

NB F

RoHS Compliant

Termination/Packaging Code

Reﬂow Temperature Code

Size in mm

Working Voltage

Tolerance Code M=20%

Capacitance Code in

μF,

ﬁ

rst 2 digits are signiﬁcant

Third digit is no. of zeros, “R” indicates decimal for

values under 10μF

Series

TERMINATION FINISH &

PEAK REFLOW

TEMPERATURE CODES PACKAGING OPTIONS CODES

Code

Peak Reﬂow

Temperature

260°C

250°C

Code

Finish & Reel Size

Sn-Bi Finish & 13" Reel

Sn-Bi Finish & 15" Reel

100% Sn Finish & 13" Reel

LS 100% Sn Finish & 15" Reel

DIMENSIONS (mm) AND REEL QUANTITIES

Case Size

φD±0.5

L max. A±0.2 B±0.2 I±0.3

P±0.3 Qty/Reel

6.3X8

6.3

8.0

6.6

2.7 0.5~0.8 1.8

500

8x10.5

8.0

10.5

8.3

2.9 0.7~1.1 3.2

300

10x10.5

10.0

10.5

10.3 10.3 3.2 0.8~1.4 4.6

300

Dφ

0.3mm max.

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

Recommended Resources
