RUEF600-AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RUEF600-AP

RUEF600-AP: DescriptionPTC Resettable Fuse, 0.04ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size38KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RUEF600-AP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RUEF600-AP	-	-	View	Buy Now

RUEF600-AP Overview

PTC Resettable Fuse, 0.04ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

RUEF600-AP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknown
Other features	RESISTANCE RANGE(MIN-MAX): 0.005-0.020
JESD-609 code	e3
Manufacturer's serial number	RUEF
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	AMMO PACK
Rated (AC) voltage (URac)	30 V
Rated power dissipation(P)	3.5 W
resistance	0.04 Ω
Resistor type	PTC RESETTABLE FUSE
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Thermistor Applications	TEMPERATURE SENSING
Base Number Matches	1

Preview

Download Datasheet

View All

PolySwitch®

PTC Devices

Overcurrent Protection Device

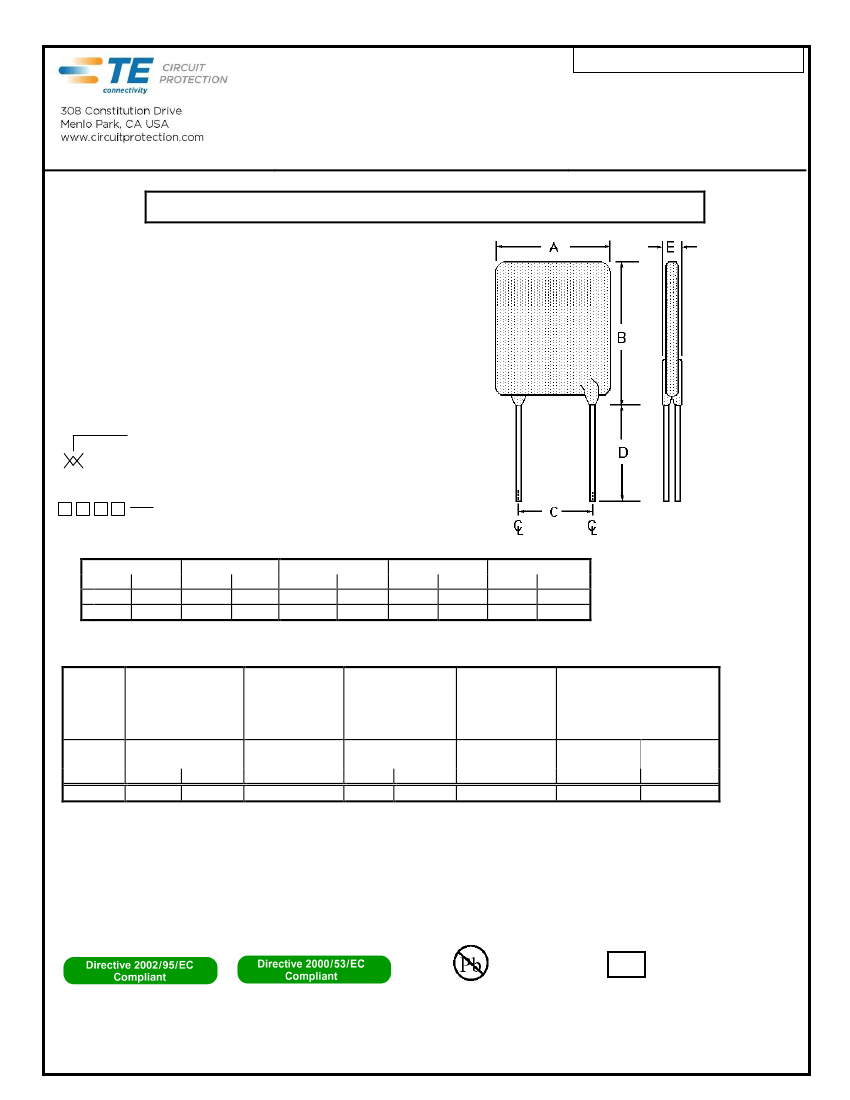

PRODUCT: RUEF600

DOCUMENT: SCD25178

REV LETTER: G

REV DATE: AUGUST 06, 2013

PAGE NO.: 1 OF 1

Specification Status: Released

Maximum Electrical Rating at

20°C

30 V

/100 A

30 V

/70 A

RMS

Insulating Material:

Cured, Flame Retardant Epoxy Polymer

meets UL94 V-0 Requirements

Lead Material:

20 AWG Tin Plated Copper

Marking:

Manufacturer’s Mark

U600

and Part Identification

Lot Identification

TABLE I. DIMENSIONS:

mm:

in*:

MIN

9.4

(0.37)

MAX

10.9

(0.43)

MIN

7.6

(0.30)

MAX

MIN

MAX

3.0

(0.12)

MIN

MAX

MIN

MAX

16.5

24.1

(0.65)

(0.95)

*Rounded off approximation

TABLE II. PERFORMANCE RATINGS:

I HOLD

CURRENT

RATINGS

TIME TO

TRIP

RESISTANCE

ONE-HOUR

POST-TRIP

RESISTANCE

STANDARD

TRIP

OHMS

AT 20°

MAX

0.04

TRIPPED POWER

DISSIPATION

AMPS

20°

HOLD

6.00

AMPS AT

20°

HOLD

TRIP

6.00

12.00

SECONDS AT

20° 30.0A

MAX

16.0

OHMS

AT 20.0° C

MIN

MAX

0.005

0.02

WATTS AT

20°

NOMINAL

3.50

WATTS AT

20°

MAX

3.68

Agency Recognitions:

Reference Documents:

Precedence:

Effectivity:

CAUTION:

UL, CSA, TUV, CQC

PS300

This specification takes precedence over documents referenced herein.

Reference documents shall be the issue in effect on the date of invitation for bid.

Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.

Materials Information

ROHS Compliant

ELV Compliant

Pb-Free

Halogen Free*

* Halogen Free refers to: Br≤900ppm, Cl≤900ppm, Br+Cl≤1500ppm.
