CY100E474-3LC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CY100E474-3LC

CY100E474-3LC: DescriptionStandard SRAM, 1KX4, 3ns, ECL, CQCC24, LCC-24; Categorystorage storage; File Size204KB，8 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY100E474-3LC Overview

Standard SRAM, 1KX4, 3ns, ECL, CQCC24, LCC-24

CY100E474-3LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	LCC
package instruction	LCC-24
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	3 ns
I/O type	SEPARATE
JESD-30 code	S-CQCC-N24
JESD-609 code	e0
length	10.2235 mm
memory density	4096 bit
Memory IC Type	STANDARD SRAM
memory width	4
Negative supply voltage rating	-4.5 V
Number of functions	1
Number of ports	1
Number of terminals	24
word count	1024 words
character code	1000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature
organize	1KX4
Output characteristics	OPEN-EMITTER
Exportable	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC24,.4SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	-4.5 V
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum slew rate	0.275 mA
surface mount	YES
technology	ECL
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.2235 mm
Base Number Matches	1

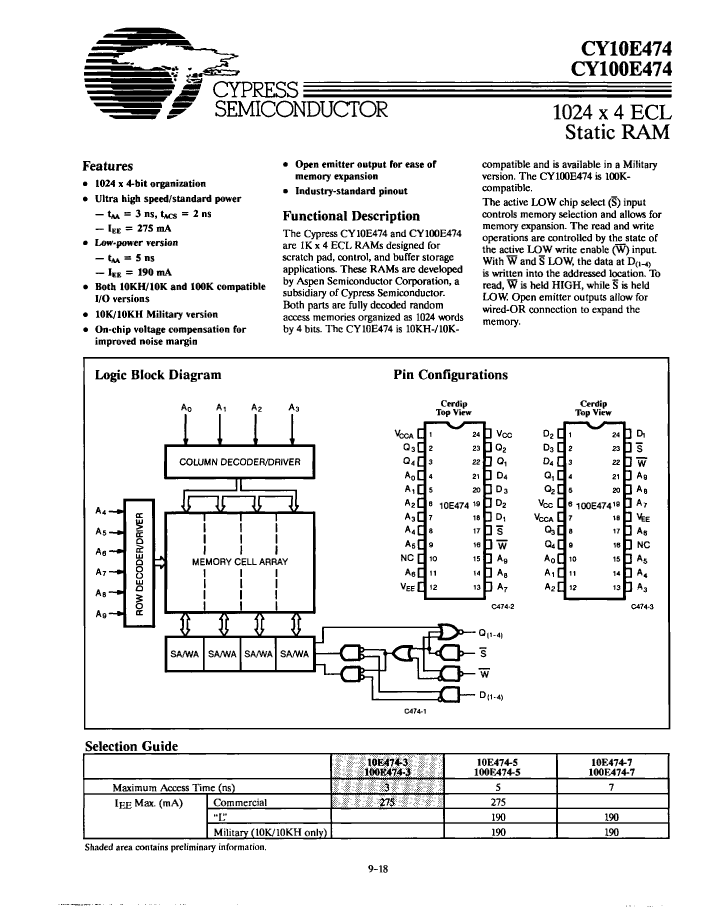

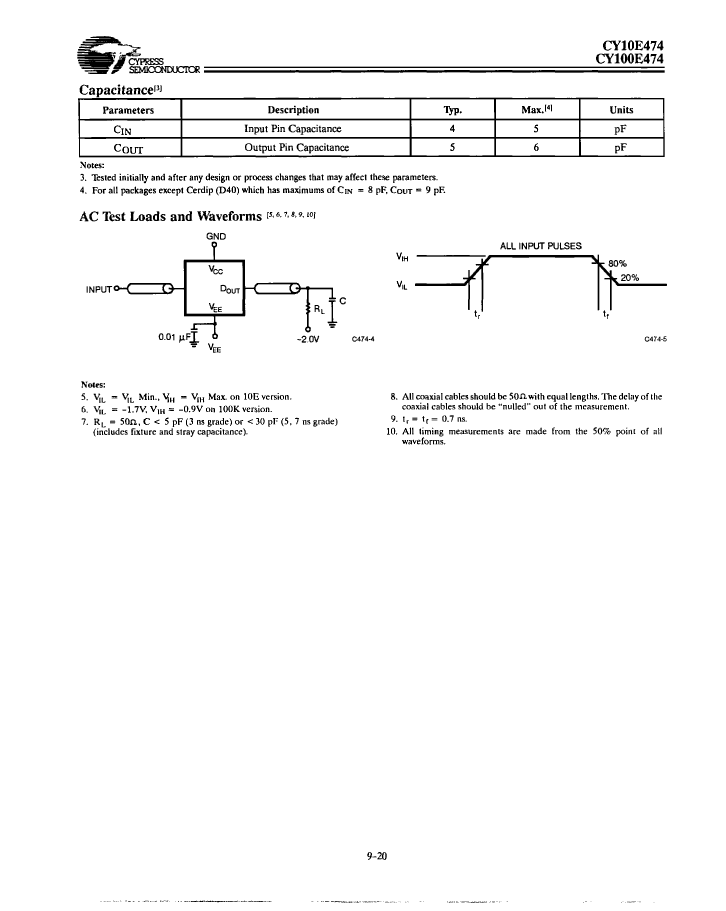

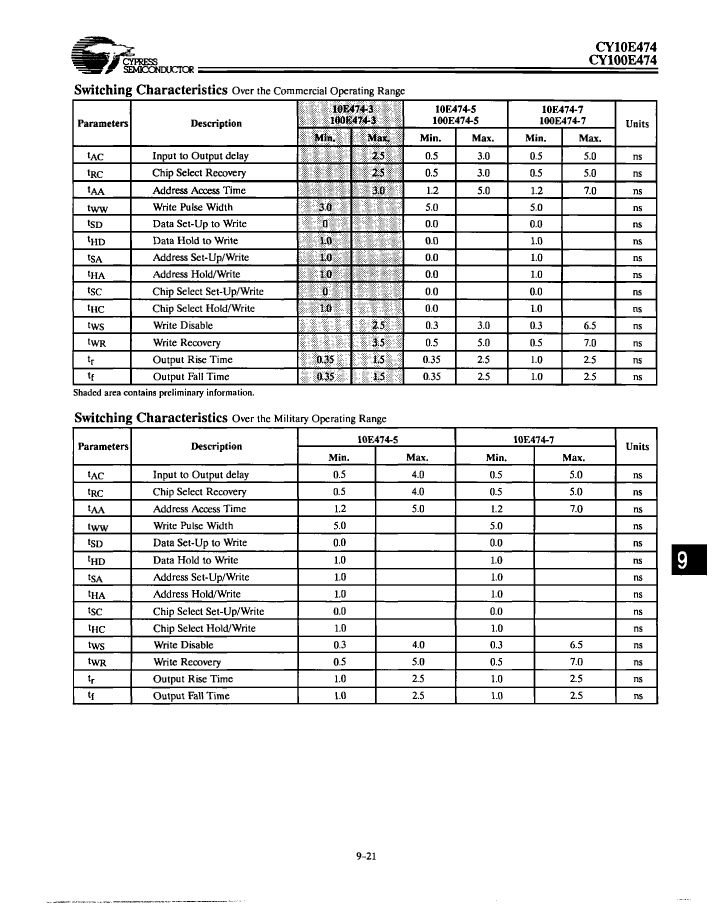

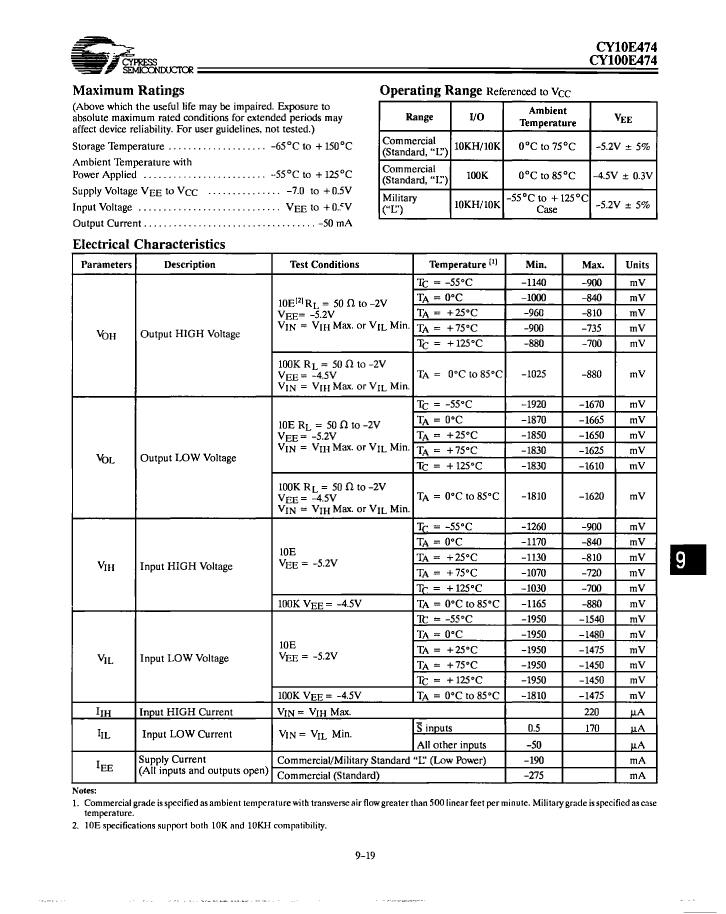

Preview

Download Datasheet

View All

CY100E474-3LC Related Products

	CY100E474-3LC	CY10E474-3KC	5962-9151802MZX	CY100E474-3KC	CY100E474-3YC	CY10E474-3LC	CY10E474-3YC	5962-9151801MZX
Description	Standard SRAM, 1KX4, 3ns, ECL, CQCC24, LCC-24	Standard SRAM, 1KX4, 3ns, ECL, CQFP24, CERPACK-24	Standard SRAM, 1KX4, 5ns, ECL, CQFP24, CERPACK-24	Standard SRAM, 1KX4, 3ns, ECL, CQFP24, CERPACK-24	Standard SRAM, 1KX4, 3ns, ECL, CQCC28, CERAMIC, JLCC-28	Standard SRAM, 1KX4, 3ns, ECL, CQCC24, LCC-24	Standard SRAM, 1KX4, 3ns, ECL, CQCC28, CERAMIC, JLCC-28	Standard SRAM, 1KX4, 7ns, ECL, CQFP24, CERPACK-24
Parts packaging code	LCC	QFP	QFP	QFP	QLCC	LCC	QLCC	QFP
package instruction	LCC-24	CERPACK-24	QFF,	CERPACK-24	CERAMIC, JLCC-28	LCC-24	CERAMIC, JLCC-28	QFF,
Contacts	24	24	24	24	28	24	28	24
Reach Compliance Code	compliant	not_compliant	unknown	compliant	compliant	not_compliant	not_compliant	unknown
ECCN code	EAR99	EAR99	3A001.A.2.C	EAR99	EAR99	EAR99	EAR99	3A001.A.2.C
Maximum access time	3 ns	3 ns	5 ns	3 ns	3 ns	3 ns	3 ns	7 ns
JESD-30 code	S-CQCC-N24	S-GQFP-F24	S-GQFP-F24	S-GQFP-F24	S-CQCC-J28	S-CQCC-N24	S-CQCC-J28	S-GQFP-F24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	10.2235 mm	9.779 mm	9.779 mm	9.779 mm	11.43 mm	10.2235 mm	11.43 mm	9.779 mm
memory density	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4	4	4
Negative supply voltage rating	-4.5 V	-5.2 V	-5.2 V	-4.5 V	-4.5 V	-5.2 V	-5.2 V	-5.2 V
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	28	24	28	24
word count	1024 words	1024 words	1024 words	1024 words	1024 words	1024 words	1024 words	1024 words
character code	1000	1000	1000	1000	1000	1000	1000	1000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	75 °C	125 °C	85 °C	85 °C	75 °C	75 °C	125 °C
organize	1KX4	1KX4	1KX4	1KX4	1KX4	1KX4	1KX4	1KX4
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	QFF	QFF	QFF	QCCJ	QCCN	QCCJ	QFF
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	FLATPACK	FLATPACK	FLATPACK	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.54 mm	2.54 mm	2.54 mm	2.54 mm	4.572 mm	2.54 mm	4.572 mm	2.54 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	ECL	ECL	ECL	ECL	ECL	ECL	ECL	ECL
Temperature level	OTHER	COMMERCIAL EXTENDED	MILITARY	OTHER	OTHER	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	NO LEAD	FLAT	FLAT	FLAT	J BEND	NO LEAD	J BEND	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	10.2235 mm	9.779 mm	9.779 mm	9.779 mm	11.43 mm	10.2235 mm	11.43 mm	9.779 mm
Is it lead-free?	Contains lead	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible	-
I/O type	SEPARATE	SEPARATE	-	SEPARATE	SEPARATE	SEPARATE	SEPARATE	-
Number of ports	1	1	-	1	1	1	1	-
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	-	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	-
Exportable	NO	NO	-	NO	NO	NO	NO	-
Encapsulate equivalent code	LCC24,.4SQ	FL24,.4	-	FL24,.4	LDCC28,.5SQ	LCC24,.4SQ	LDCC28,.5SQ	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
power supply	-4.5 V	-5.2 V	-	-4.5 V	-4.5 V	-5.2 V	-5.2 V	-
Maximum slew rate	0.275 mA	0.275 mA	-	0.275 mA	0.275 mA	0.275 mA	0.275 mA	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Base Number Matches	1	1	1	1	1	1	1	-
