LL4001G-J0L0G

Description
Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, MELF-2
CategoryDiscrete semiconductor    diode
File Size203KB,4 Pages
ManufacturerTaiwan Semiconductor
Websitehttp://www.taiwansemi.com/
Download Datasheet Parametric Compare View All

LL4001G-J0L0G Overview

Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, MELF-2

LL4001G-J0L0G Parametric

Parameter NameAttribute value
package instructionMELF-2
Reach Compliance Codecompliant
ECCN codeEAR99
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeO-PELF-R2
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Maximum repetitive peak reverse voltage50 V
surface mountYES
Terminal formWRAP AROUND
Terminal locationEND
Base Number Matches1

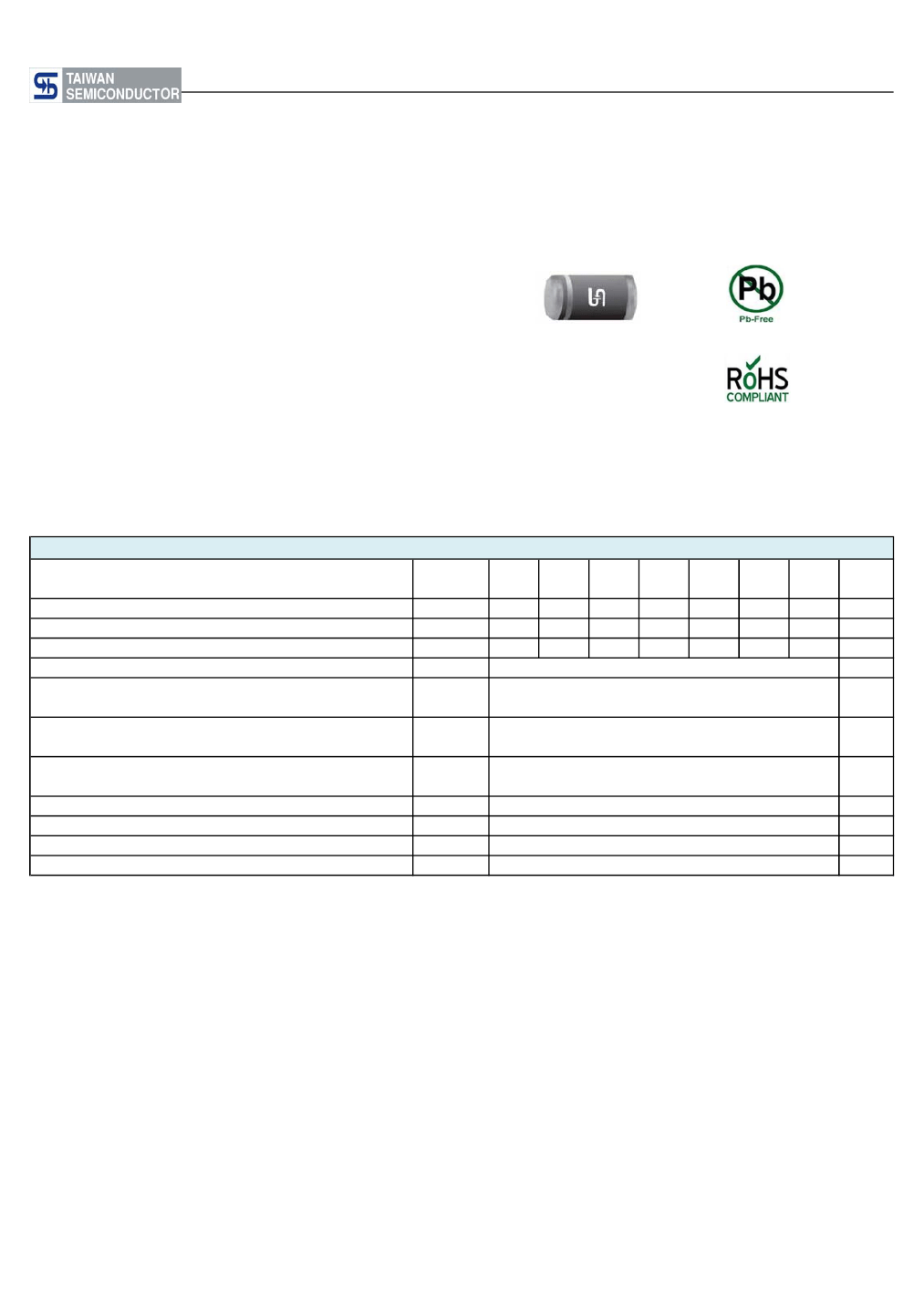

LL4001G thru LL4007G
Taiwan Semiconductor
Small Signal Product
CREAT BY ART
Surface Mount Glass Plassivated Silicon Rectifiers
FEATURES
- Plastic package has carries underwriters
- Ideal for automated placement
- Surge overload rating to 30 Ampers peak
- Reliable low cost construction utilizing molded
plastic technique results in in-expensive product
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
MELF

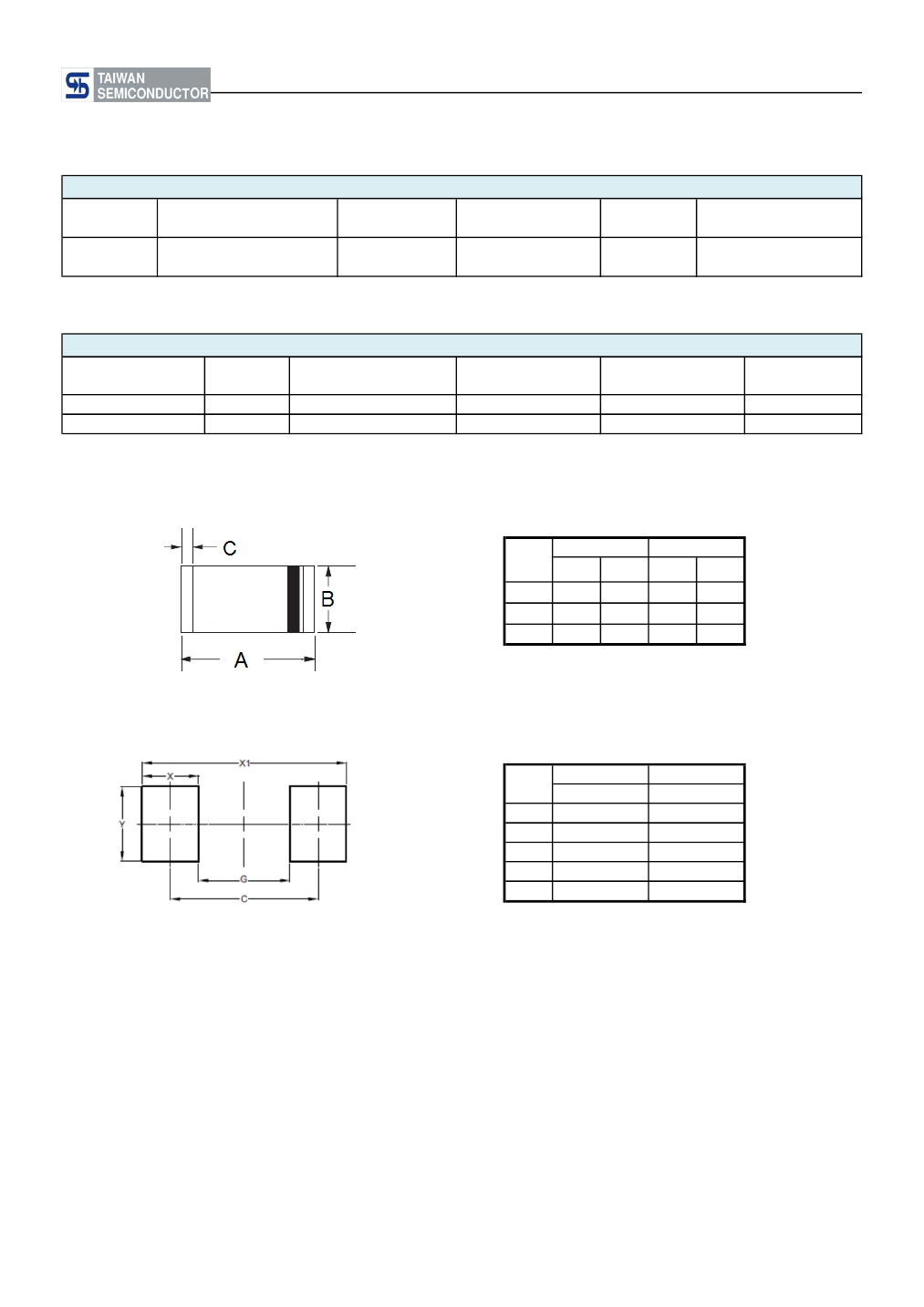

MECHANICAL DATA
Case:
MELF
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - green compound (halogen-free)
Mounting position:
Any
Weight:
0.12 g (approximately)

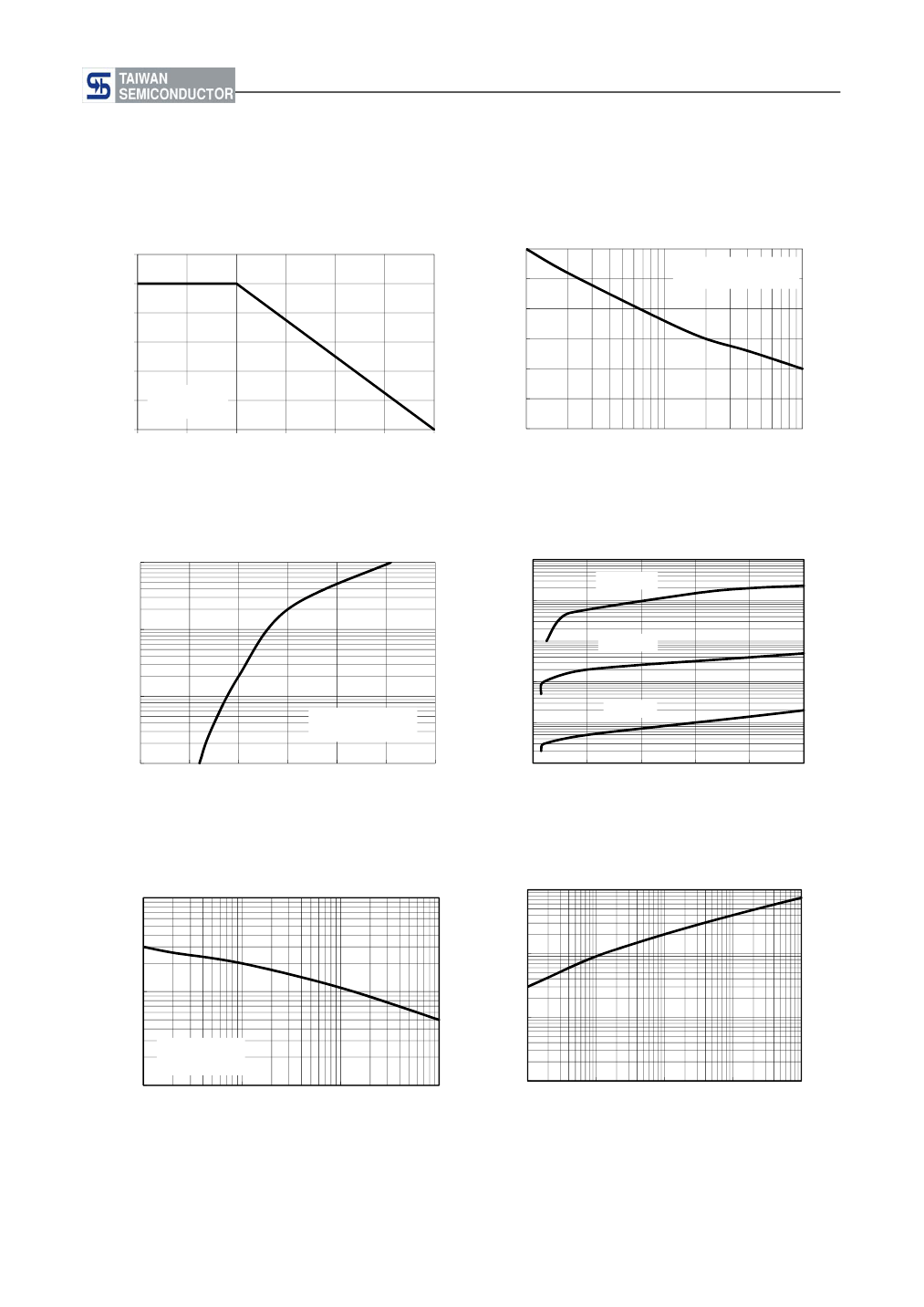

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated VR
Typical junction capacitance (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25
T
J
=125
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Cj
R
θJC
T
J
T
STG
LL40
01G
50
35
50
LL40
02G
100
70
100
LL40
03G
200
140
200
LL40
04G
400
280
400
1
30
1.1
5
100
15
50
- 65 to +150
- 65 to +150
O
LL40
05G
600
420
600
LL40
06G
800
560
800
LL40
07G
1000
700
1000
UNIT
V
V
V
A
A
V
μA
pF
C/W
O
O
C
C
Document Number: DS_S1407007
Version: C14
